2578 - Matsuura & Leadwell Vertical Machining Centres previously used by PFW Machining
Engineering
La subasta finalizó el
Tiempo restante
Descripción de la subasta
Please Note: Lot 9 is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Please Note: All other lots are located in Nuneaton, Warwickshire. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser
Prima del comprador
A los compradores Premium se les cobrará un 16.00%.
IVA
El IVA ascenderá a un 20.00%.
Vista de horas
Viewing is available by appointment only with the Auctioneer.
Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com
* Tenga en cuenta: - Cualquier traducción mediante Google Translate no está garantizada como una traducción precisa y es solo para fines de guía. La descripción del lote en inglés es la descripción predominante y se le da el mejor conocimiento del subastador. Sin embargo, la precisión no está garantizada y el comprador debe verificarla antes de hacer una oferta.
Aviso a compradores
Fecha final de pago
Fecha final de expedición
Transportistas
Empresas de almacenamiento
Exportar / Importar desde el Reino Unido detalles
Lotes 1-10 de 26

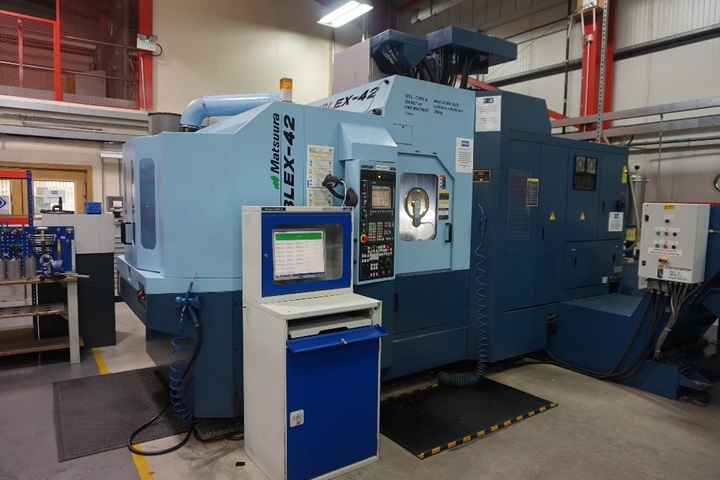

Lote 1: Matsuura Cubex 42 5 Axis Twin Pallet Turning/Milling Machine
Matsuura Cubex 42 5 Axis Vertical Twin Pallet Turning/Milling Machining Centre with G-Tech 840 Di Control, Maximum Spindle Speed 20000rpm, HSK 63 Spindle Taper, Axis Travels X=520mm Y=730mm Z=510mm A=120 Degrees (-110/+10) C=360 Degrees Rapid Feed Rates 50m/Min, Maximum Table Speed For Turning 1800rpm, 120 Station ATC,Pallet Diameter 300mm, Maximum Component Size H=350mm D=420mm, 40 Bar Through Spindle Coolant, FSE Filtration System, Tool Presetter, Renishaw Probe Interface, Swarf Conveyor, Filtermist FX5000 Fume Extractor, Swarf Bin, 2 Spare Pallets (Fixtures Not Included) S/No 18009 (3/2009)
Please Note: This Machine has had a new spindle end of 2016
Please Note: This Item is located in Nuneaton, Warwickshire. Unfortunately, ...

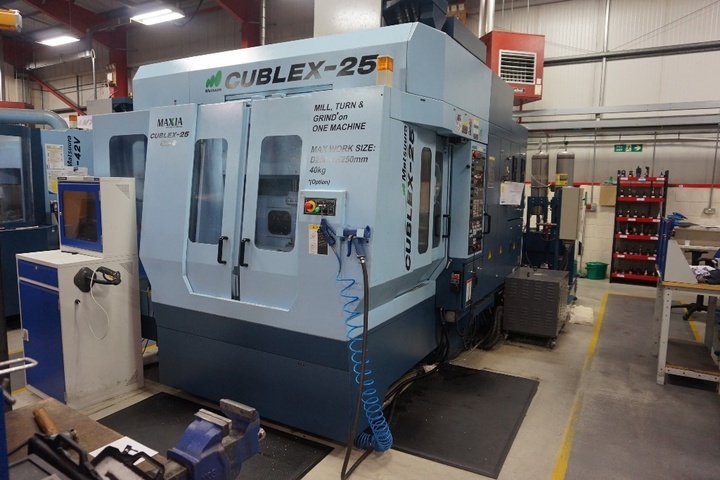

Lote 2: Matsuura Cubex 25 5 Axis Twin Pallet Turning/Milling Machine
Matsuura Cubex 25 5 Axis Vertical Twin Pallet Turning/Milling Machining Centre with G-Tech 840 Di Control, Maximum Spindle Speed 15000rpm, HSK 63 Spindle Taper, Axis Travels X=550mm Y=410mm Z=450mm B=220 Degrees (-110/+110) C 360 Degrees, Maximum Table Speed For Turning 3000rpm, Rapid Feedrates 50m/Min 150 Station ATC, FSE Filtration System 40 Bar Through Spindle Coolant, Filtermist FX4000 Fume Extraction, Pallet Diameter 130mm, Maximum Component Size D=250mm H=250mm, Renishaw Probe Interface, Tool Presetter, Swarf Conveyor, Swarf Bin, Aproximately 12 Additional Pallets. S/No 17777 (7/2008)
Please Note: New spindle 2 years ago
Please Note: This Item is located in Nuneaton, Warwickshire. Unfortunately, there are no loading ...

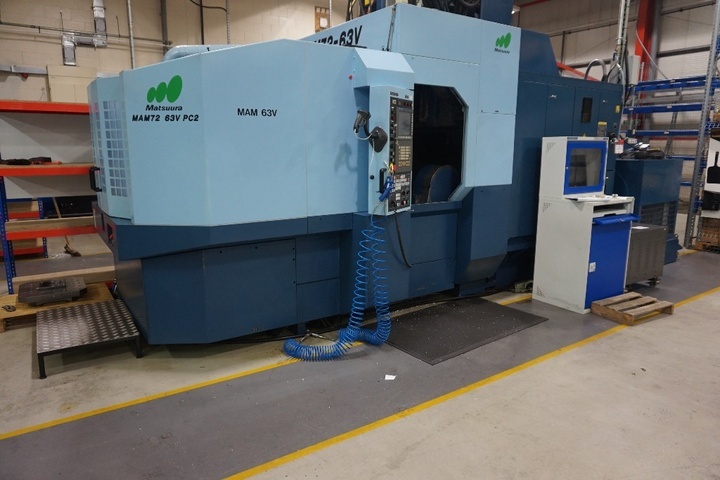

Lote 3: Matsuura MAM 72-63V Twin Pallet Vertical Machining Centre
Matsuura MAM 72-63V Twin Pallet Vertical Machining Centre with Matsuura G-Tech 30i Control, Maximum Spindle Speed 12000rpm, BT40 Big Plus Spindle, Axis Travels X=760mm Y=845mm Z=610mm A=120 Degrees (-110/+10) C=360 Degrees, Rapid Feed Rates 50m/Min, Pallet Dimensions 500mm x 500mm, 240 Station ATC, Thgrough Spindle Coolant, FSE Filtration System with Coolant Chiller, FSE MMS Fume Extraction Unit, Renishaw Probe Interface, Renishaw Laser Tool Presetter, 2 Additional Pallets, Swarf Conveyor, Swarf Bin. S/No 16688 (7/2006)
Please Note: This Item is located in Nuneaton, Warwickshire. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser

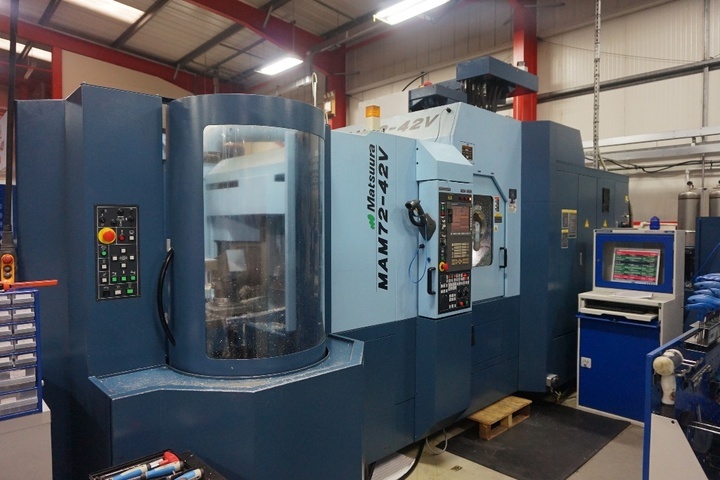

Lote 4: Matsuura MAM72-42V 5 Pallet Vertical Machining Centre
Matsuura MAM 72-42V 5 Pallet Vertical Machining Centre with Matsuura G-Tech 30i Control, Maximum Spindle Speed 15000rpm, BT40 Big Plus Spindle, Axis Travels X=520mm Y=730mm Z=510mm A=120 Degrees (-110/+10) C=360 Degrees, Rapid Feed Rates 50m/Min, Pallet Dimensions 300mm x 300mm, 120 Station ATC, Through Spindle Coolant, FSE Coolant Filtation System, Filtermist FX5000 Fume Extractor, Renishaw Laser Tool Presetter, Renishaw Probe Interface, Swarf Conveyor, Swarf Bin. S/No. 18025 (4/2009)
Please Note: This Item is located in Nuneaton, Warwickshire. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser

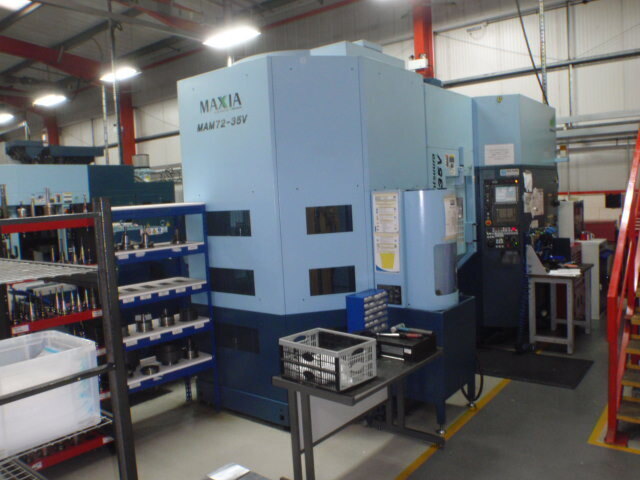

Lote 5: Matsuura MAM 72-35V 32 Pallet Vertical Machining Centre
Matsuura MAM 72-35V 32 Pallet Vertical Machining Centre with Matsuura G-Tech 30i Control, Maximum Spindle Speed 15000rpm, BT40 Big Plus Spindle, Axis Travels X=680mm Y=385mm Z=625mm B=170 Degrees (-105/+65) C=360 Degrees, Rapid Feedrates 40m/Min, Pallet Diameter 130mm, 120 Station ATC, Renishaw NC4 Tool Presetter, Renishaw Probe Interface, Through Spindle Coolant, FSE Coolant Filtation System, Filtermist FX4000 Fume Extractor, Swarf Conveyor, Swarf Bin. S/No 18014 (3/2009)
Please Note: This Item is located in Nuneaton, Warwickshire.Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser

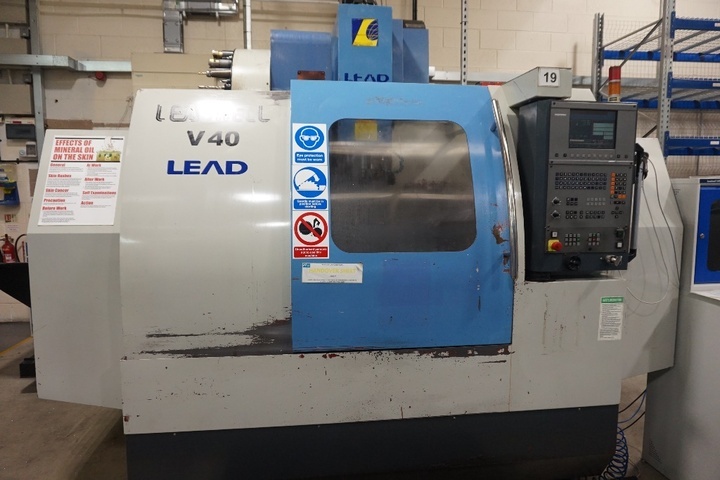

Lote 6: Leadwell V40 Vertical Machining Centre
Leadwell V40 Vertical Machining Centre with Heidenhain 426/430ME Control, Maximum Spindle Speed 8000rpm, BT40 Spindle Taper, Axis travels X=1020mm Y=465mm Z=610mm, Table Dimensions 500mm x 1200mm, 24 station ATC, Swarf Conveyor, Swarf Bin. S/No. L2TJJ1082 (7/2001)
Please Note: This Item is located in Nuneaton, Warwickshire. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser

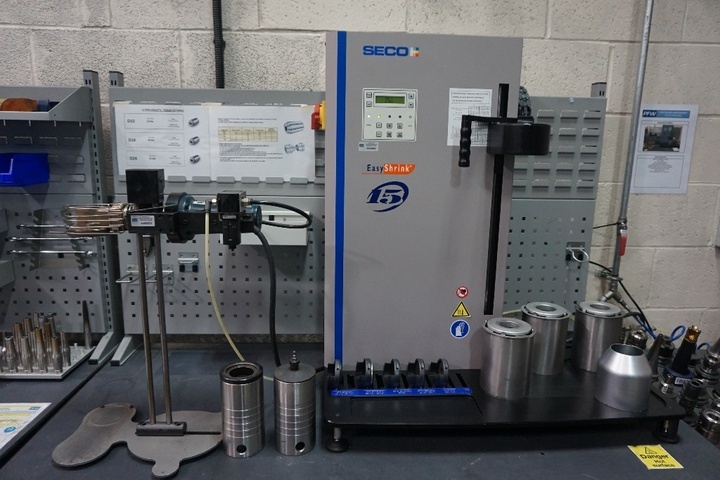

Lote 7: Seco 15 Easy Shrink Tooling Machine
Secos Easy Shrink 15 ZFM08IN. S/No. Q11-1006 (2011)
Please Note: This Item is located in Nuneaton, Warwickshire. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser

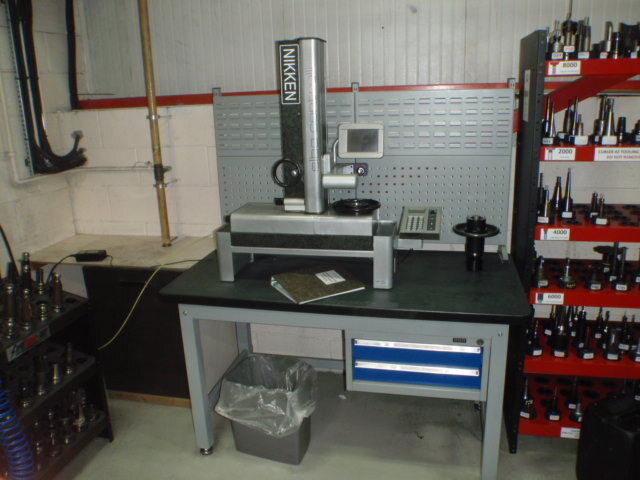

Lote 8: Nikken E450 Tool Presetter
Niken E450 Tool Presetter with ISO 40 Holder and HSK63 Holder. S/No. 3086 (6/2004)
Please Note: This Item is located in Warwickshire. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser

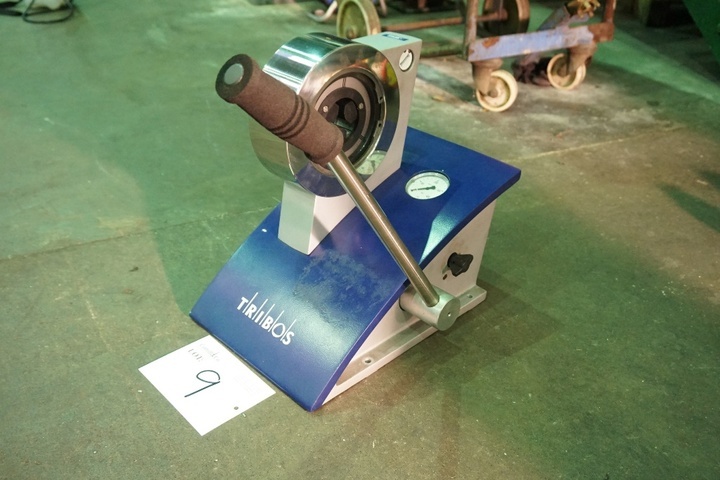

Lote 9: Schunk Tribos, Polygonal Tool Clamping System
Schunk Tribos, Polygonal Tool Clamping System
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Lote 10: 50 HSK63 Tool Holders
50 HSK63 Tool Holders
Please Note: Racks are not included
Please Note: This Item is located in Nuneaton, Warwickshire. Unfortunately, there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
