2827A - High Quality CNC & Conventional Machinery on Behalf of a Retained Client at Halco Brighouse Ltd

Engineering

Auction ended on

2019-11-14 15:00:00.0

Time left

Auction finished

Auction description

Location: These lots are located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Please click here to view a Brochure for this Auction

Buyer's premium

Buyer's Premium will be charged at 18.00%.

VAT

Value added tax will be charged at 20.00%.

Viewing times

Viewing will be available by appointment only with the Auctioneer.

Viewing days will be available Monday 11th and Tuesday 12th November 2019. Booking by appointment only.

Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com

The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences

Please tick the box below and press confirm


* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Notice to purchasers

Final payment date

2019-11-18 17:00:00.0

Final clearance date

2019-12-12 17:00:00.0

Shipping agents

Storage contractors

Exporting/Importing from the UK details

Lots 1-10 of 91

Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
Preview image
Ends:
14 Nov 2019 17:10:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

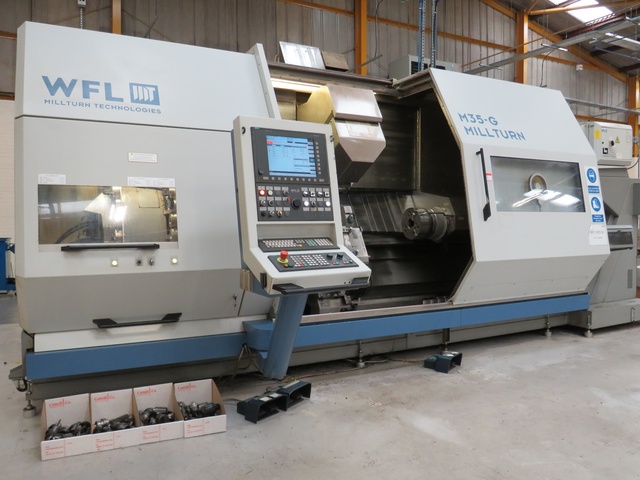

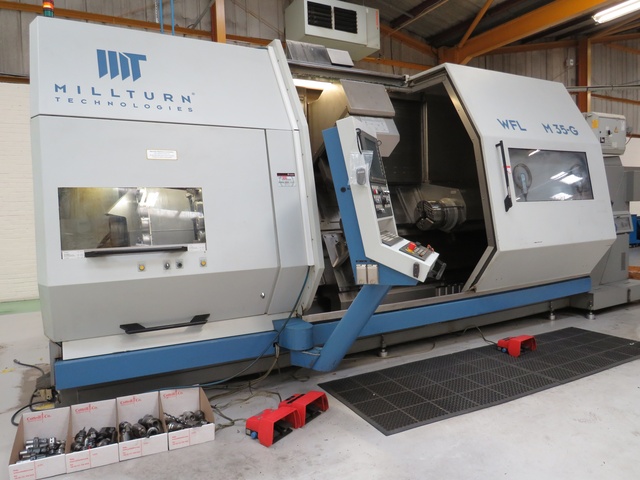

Lot 1: WFL M35-G 1800 7 Axis Millturn

WFL M35-G 1800 7 Axis Millturn with CNC Siemens 840D SL Control, Maximum Swing Over Bed 600mm, Maximum Swing Over Saddle 520mm, Maximum Distance Between Centres 1800mm, Maximum Turned Diameter 520mm, Maximum Turned Length 1500mm, B1 Rotation -110, +110 Degrees, C1 Rotation 360,000 Degrees, C2 Rotation 360,000 Degrees, X1 Traverse 600mm, Y1 Traverse 250mm, Z1 Traverse 1500mm, Z2 Traverse 1500mm, Z4 Traverse 1510mm, Rapids X1 30m/min, Y1 15m/min, Z1 & Z2 40m/min, B1 138 Degrees /Sec, Spindle Bore 77mm, Turning speeds With Chuck 3300 rpm, Turning Speed Without Chuck 4000 rpm, Milling Spindle Speeds 9000rpm, with 325mm Headstock Chuck SMW Autoblock 3 Jaw Hydraulic, 325mm Tailstock Chuck SMW Autoblock 3 Jaw Hydraulic, Tooling ...

Please note this lot is also offered as a combination lot

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

*: Combination of lots 1, 1A & 1B

Preview image
Ends:
14 Nov 2019 17:10:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

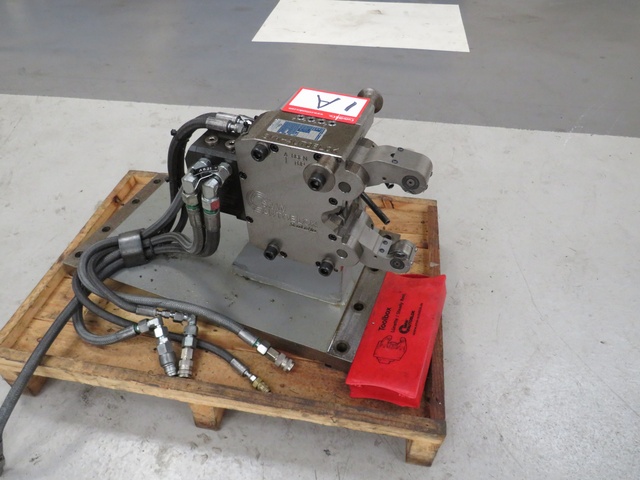

Lot 1A: SMW Autoblok Hydraulic Steady

SMW Autoblok Hydraulic Steady Suitable for WFL Millturn

Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Please note this lot is also offered as a combination lot

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

*: Combination of lots 1, 1A & 1B

Preview image
Ends:
14 Nov 2019 17:10:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

Lot 1B: WRP45 Marposs Probe

WRP45 Marposs Probe

Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Please note this lot is also offered as a combination lot

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

*: Combination of lots 1, 1A & 1B

Preview image
Ends:
14 Nov 2019 17:10:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

Lot *: Combination of lots 1, 1A & 1B

Combination of lots 1, 1A, & 1B

1 - WFL M35-G 1800 7 Axis Millturn with CNC Siemens 840D SL Control, Maximum Swing Over Bed 600mm, Maximum Swing Over Saddle 520mm, Maximum Distance Between Centres 1800mm, Maximum Turned Diameter 520mm, Maximum Turned Length 1500mm, B1 Rotation -110, +110 Degrees, C1 Rotation 360,000 Degrees, C2 Rotation 360,000 Degrees, X1 Traverse 600mm, Y1 Traverse 250mm, Z1 Traverse 1500mm, Z2 Traverse 1500mm, Z4 Traverse 1510mm, Rapids X1 30m/min, Y1 15m/min, Z1 & Z2 40m/min, B1 138 Degrees /Sec, Spindle Bore 77mm, Turning speeds With Chuck 3300 rpm, Turning Speed Without Chuck 4000 rpm, Milling Spindle Speeds 9000rpm, with 325mm Headstock Chuck SMW Autoblock 3 Jaw Hydraulic, 325mm Tailstock Chuck ...

Lots in this combination

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

Lot # Description
Preview image
Ends:
14 Nov 2019 16:30:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

Lot 2: WFL M35-G 1800 7 Axis Millturn

WFL M35-G 1800 7 Axis Millturn with CNC Siemens 840D SL Control, Maximum Swing Over Bed 600mm, Maximum Swing Over Saddle 520mm, Maximum Distance Between Centres 1800mm, Maximum Turned Diameter 520mm, Maximum Turned Length 1500mm, B1 Rotation -110, +110 Degrees, C1 Rotation 360,000 Degrees, C2 Rotation 360,000 Degrees, X1 Traverse 600mm,Y1 Traverse 250mm, Z1 Traverse 1500mm, Z2 Traverse 1500mm, Z4 Traverse 1510mm, Rapids X1 30m/min, Y1 15m/min, Z1 & Z2 40m/min, B1 138 Degrees /Sec, Spindle Bore 77mm, Turning speeds With Chuck 3300 rpm, Turning Speed Without Chuck 4000 rpm, Milling Spindle Speeds 9000rpm, Complete With 325mm Headstock Chuck SMW Autoblock 3 Jaw Hydraulic, 325mm Tailstock Chuck SMW Autoblock 3 Jaw Hydraulic, ...

Preview image
Ends:
14 Nov 2019 16:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

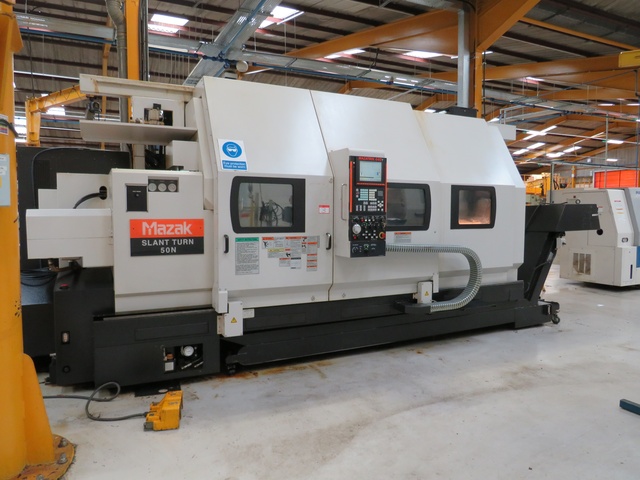

Lot 3: Mazak Slanturn 50NR CNC Lathe

Mazak Slanturn 50NR CNC Lathe with Mazatrol 640T CNC Control, Swing Over Bed 805mm, Swing Over Saddle 560mm, Distance Between Centres 2000mm, Spindle Speeds 1 – 1600rpm, Spindle Bore 104mm, X Axis Traverse 574mm, Z Axis Traverse 2000mm, Rapids ,X Axis 12m/min, Z 16m/min, with 10 Position Turret, 2 Point Hydraulic Steady, Programmable Tailstock, 385mm 3 Jaw Hydraulic Chuck, Swarf Conveyor, Approximate Dimensions 5815 x 2665 x 2725mm, Approximate Weight 14,000kg. S/No. 193247 (2007)


Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Preview image
Ends:
14 Nov 2019 17:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

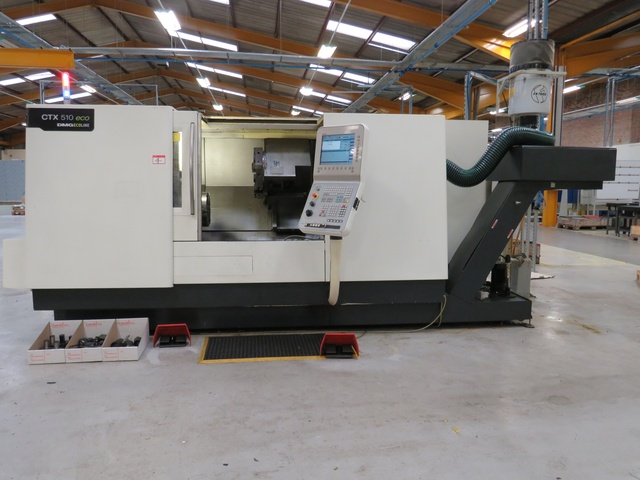

Lot 4: DMG CTX 510 Ecoline 3 Axis CNC Lathe

DMG CTX 510 Ecoline 3 Axis CNC Lathe with Siemens 810D and Shop Turn CNC Control, Swing Over Bed 680mm, Swing Over Saddle 465mm, Maximum Turned Length 1050mm, Spindle Speeds 32 – 3250rpm, Driven Tooling Speeds 4000rpm, Rapids 30m/min, with C Axis, Driven Tooling, 12 Position Turret, 315mm 3 Jaw Hydraulic Chuck, Programmable Tailstock, Tool Probing, Swarf Conveyor, Approximate Dimensions 5250 x 2300 x 2000mm, Approximate Weight 8100kg. S/No. 8045000336E (2011)


Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Preview image
Ends:
14 Nov 2019 16:20:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

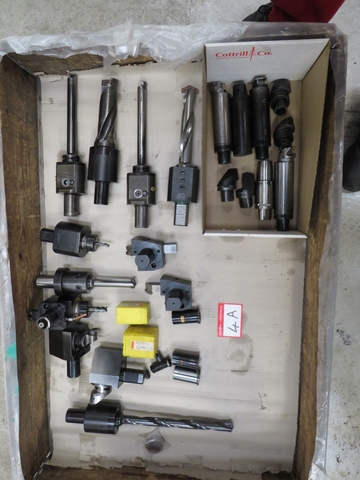

Lot 4A: VDI 40 Live Tooling

VDI 40 Live Tooling & VDI Tooling suitable for Capto Tooling and Suitable for DMG CTX 510 Eco.

Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Preview image
Ends:
14 Nov 2019 16:00:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

Lot 5: Haco FAT TUR 930MN CNC Lathe

Haco FAT TUR 930MN CNC Lathe with Siemens Shop Turn CNC Control, Swing Over Bed 950mm, Swing Over Saddle 630mm, Maximum Distance Between Centres 4000mm, Spindle Speeds 4 1200rpm, Spindle Bore 320mm, Rapids 6m/min, Compete with 2 No 3 Point Fixed Steadies, Boring Bar Steady, 8 Position Duplomatic Turret, Powered Tailstock, Deep Hole Boring Bar, Swarf Conveyor, Main Motor 33kw, Approximate Dimensions 6400 x 2890 x 2170mm, Approximate Weight 10,200kg. S/No. 120452 (2012)

Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Preview image
Ends:
14 Nov 2019 19:00:00 GMT
Time left:
Bidding ended
Buyer's premium:
18.00%
VAT rate:
20.00%

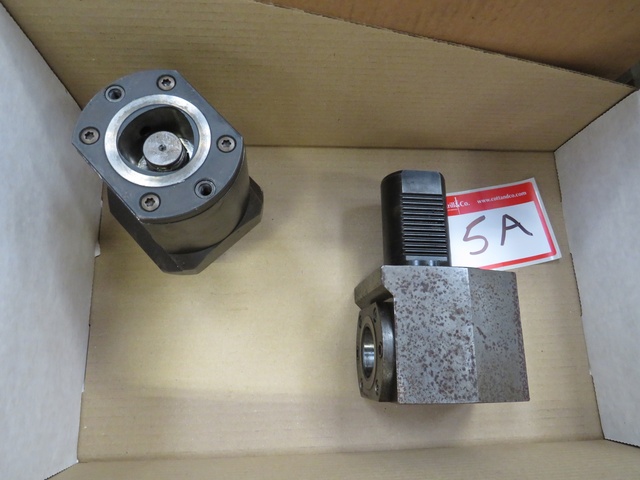

Lot 5A: VDI Capto 50 Tooling

VDI Capto 50 Tooling

Please Note: This lot is located in West Yorkshire. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
