2575 - Engineering and Fabrication Machinery available for sale on behalf of Retained Client
Engineering
Auction ended on
Time left
Auction description
Location: These Items are located in Cheshire, and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Unfortunately Lot 1 however has no loading facilities. Dismantling & Loading will be at the cost of the purchaser.
Buyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 20.00%.
Viewing times
Viewing is available by appointment only with the Auctioneer.
Please contact our Office on: +44 (0) 121 328 2424 or email
us at: info@cottandco.com
* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
Notice to purchasers
Final payment date
Final clearance date
Shipping agents
Storage contractors
Exporting/Importing from the UK details
Lots 1-10 of 96
Lot 1: Huron Type TXD633L Bed Mill with Heidenhain 426PB Control
Huron Type TXD633L Bed Mill with Heidenhain 426PB Control, Table Size 2200mm x 1100mm, Traverse: X 2000mm, Y = 1000mm, Z = 1000mm, Fully programmable head, 3 & 2 axis 50 Iso Taper, Approximate Total Weight 22,000Kg's (1996)
Please Note: This Item is located in Cheshire, Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

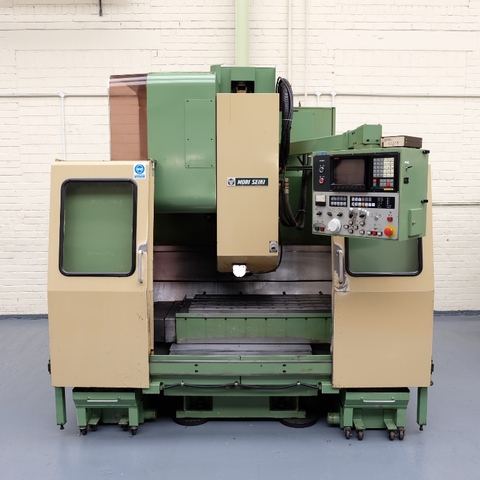

Lot 2: Mori Seiki Type MV40 Vertical Machining Centre with Fanuc 10M Control
Mori Seiki Type MV40 Vertical Machining Centre with Fanuc 10M Control , Table 1100 x 450mm, 30 Tool Auto Tool Changer, 40150 Spindle.
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.

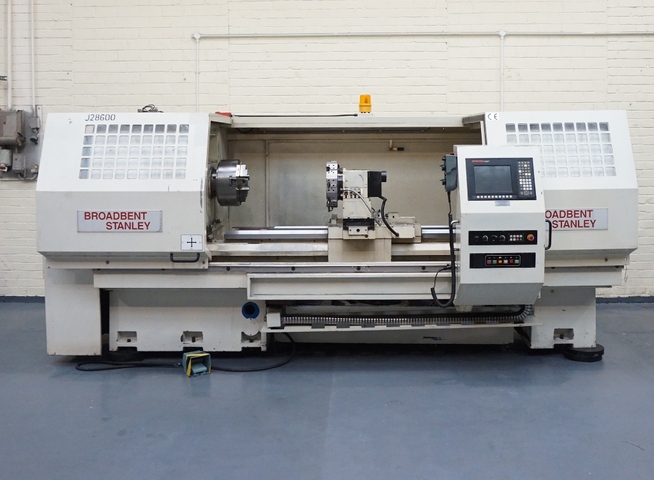

Lot 3: Broadbent Stanley Type FB3080 Gap Bed CNC Lathe with Anilam 4200T Control
Broadbent Stanley Type FB3080 Gap Bed CNC Lathe with Anilam 4200T Control, 80" Distance Between Centres, 30" Swing Over Bed, 40" Swing in Gap, 19" Swing Over Cross Slide, Spindle Speeds 27 - 2250rpm, Tailstock No.5 Morse Taper, 3 Jaw Chuck, 8-Station Toolpost, Approximate Total Weight 6,000Kg's (2003)
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.

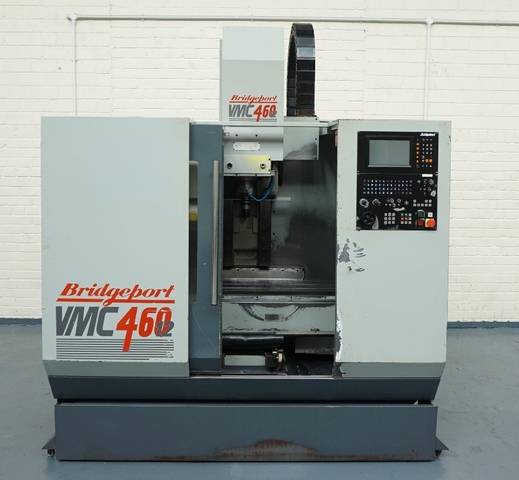

Lot 4: Bridgeport Type 460 Vertical Machining Centre with Heidenhain TNC370 Control
Bridgeport Type 460 Vertical Machining Centre with Heidenhain TNC370 Control, X Axis Travel = 490mm, Y Axis Travel = 340mm, Z Axis Travel = 480mm, Spindle Speeds 40-6000rpm, Spindle Taper BT40, Work Table Surface 840mm x 360mm, Max Table Load 500Kg, Tool Changer Capacity 8 Tools, Approximate Total Weight 2,600Kg's. (2005)
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.
Lot 4a: BRIDGEPORT Type 500/16 Vertical Machining Centre
BRIDGEPORT Type 500/16 Vertical Machining Centre with Heidenhain TNC370 Control, X Axis Travel 500mm, Y Axis Travel 340mm, Z Axis Travel 520mm, Spindle Taper BT40, Work Table Surface 840mm x 360mm, Max Table Load 500Kg, Tool Changer Capacity 16 Tools, Approximate Total Weight 2,600Kg's.
(Please Note: The tool Changer is in need of attention)
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.
Lot 5: Bronx Model PPU Double Pinch Bending Rolls
Bronx Model PPU Double Pinch Bending Rolls, Maximum Width 3700mm (12 feet). Roll Diameter: 585mm (23"). Pre Bending and Rolling Thickness: 30mm (1 & 1/4"). Rolling Only Thickness: 40mm (1 5/8"). Rolling Speed 15 feet per minute (approx), Hydraulic Drop End, Main drive motor 75 HP, Adjustment motors 25 HP
Please Note: This Item is located in Cheshire and will be loaded
free of charge to a suitable vehicle. Blocking and securing however
will be at the cost of the purchaser.

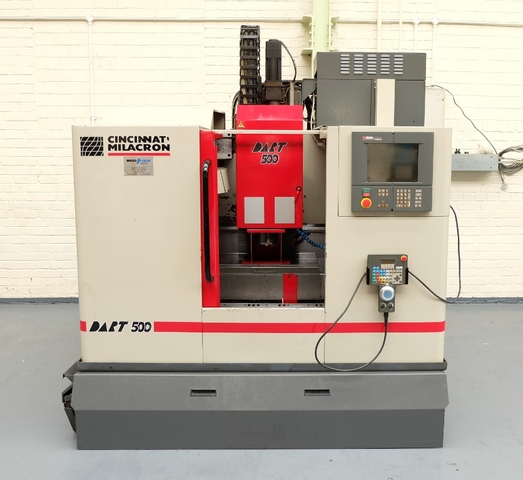

Lot 6: Cincinnati Dart 500 Vertical Machining Centre
Cincinnati Dart 500 Vertical Machining Centre with Acramatic 2100 Control, Table Size 700mm x 520mm, X Axis 510mm, Y Axis 510mm, Z Axis 510mm, Load Capacity 350Kg, Tool Holder BT40, Spindle Speeds 60-6000rpm, Power 25KVA, Spindle Power 5.5KW, 21 Tool ATC, Tool to Tool 8 Seconds.
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.

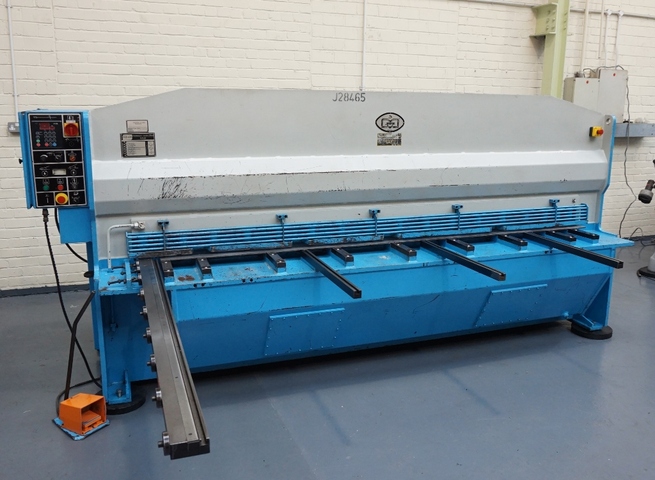

Lot 7: Simerom Type FGH630 Power Guillotine 3000mm x 6.5mm
Simerom Type FGH630 Power Guillotine 3000mm x 6.5mm with Elco Controlled Back Gauge.
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.

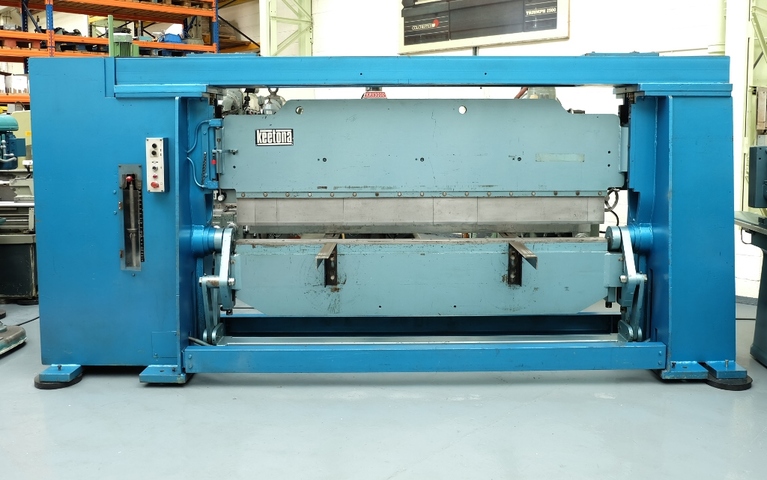

Lot 8: Keetona Hydroform Type HUF 84170 Powered Folder
Keetona Hydroform Type HUF 84170 Powered Folder, Capacity 100" x 1/4" (2540mm x 6mm), 60" x 5/16" (1524mm x 8mm), 40" x 3/8" (1016mm x 10mm)
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.

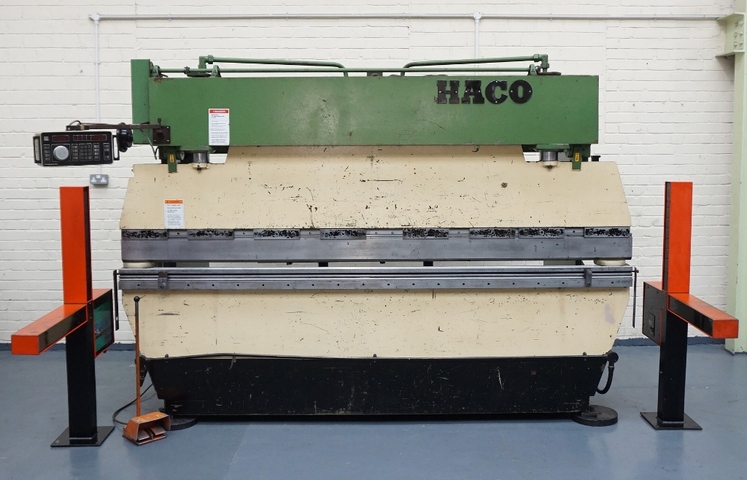

Lot 9: Haco Type PPH6030 Down Stroking Pressbrake
Haco Type PPH6030 Down Stroking Pressbrake, Gap 3000mm x 60 Ton with Autobend 5S Single Axis CNC Back Gauge
Please Note: This Item is located in Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.
