2479B - High Quality CNC and Conventional Equipment no longer required due to the closure of Premier Precision Engineering Ltd
Engineering
Auction ended on
Time left
Auction description
Location: These Items are located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser. Collection by appointment only from Tuesday 3rd May 2016.
Please click here to view a Brochure for this Auction
Buyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 20.00%.
Viewing times
Viewing is available by appointment only with the Auctioneer
Please contact our UK Office on: +44 (0) 121 328 2424 or our
Italian Office on + 39 0732 677 063 or email info@cottandco.it
* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
Notice to purchasers
Final payment date
Final clearance date
Shipping agents
Storage contractors
Exporting/Importing from the UK details
Lots 1-10 of 107

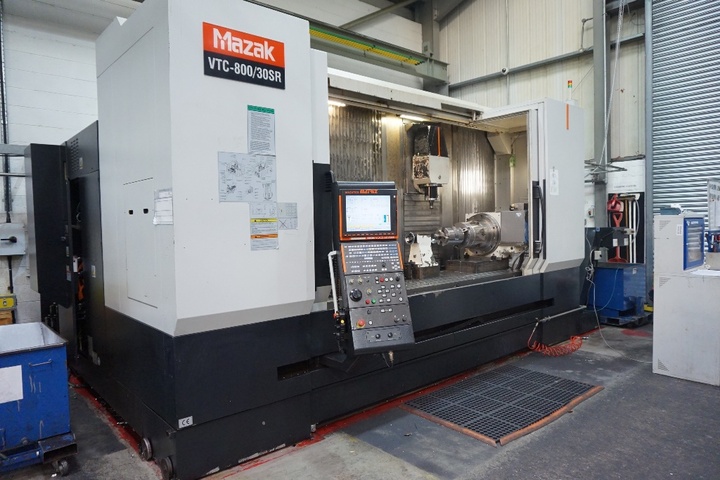

Lot 1: Mazak VTC800/30 SR 5 Axis Vertical Machining Centre
Mazak VTC800/30 SR 5 Axis Vertical Machining Centre with Matrix Voice Advisor Control System, Spindle 35kw 18000 RPM BT40 Taper, Axis Travels X 3000mm, Y 800mm, Z 720mm, B 220 degrees (Plus/Minus 110 from Vertical), 48 Station ATC, Table Dimensions 820mm X 3500mm, Renishaw Probe, Tool Presetter, Kitagawa tr500h2-07 500mm Rotary Table 360 Degree with Tailstock, Through Spindle Coolant, Cromar Swarf Conveyor, Servo On Hours 44,050, Auto Op Hours 20,804, Weight 16,100kg. S/No. 212712 (2009)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser

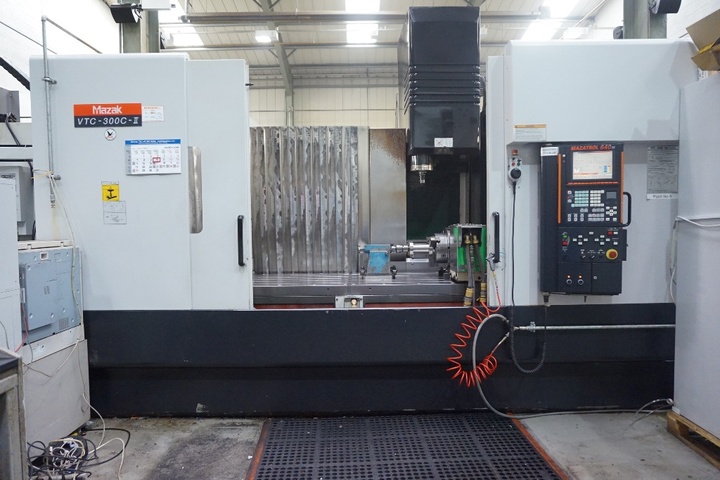

Lot 2: Mazak VTC-300C-II 4 Axis Vertical Machining Centre
Mazak VTC-300C-II 4 Axis Vertical Machining Centre with Mazatrol Control System, 640M Spindle Speed 12000 RPM BT40 Taper, Axis Travels X = 1750mm Y = 760mm Z = 660mm, Kitagawa 300mm Rotary Table Type TBX320BE01 360 degrees with Tailstock (2008), 30 Station ATC, Table Dimensions 760mm X 2000mm, Renishaw Probe, Renishaw Laser Tool Pre Setter, Through Spindle Coolant, Cromar Swarf Conveyor, Servo On Hours 64,439, Spindle Drive On Hours 36,512, Weight 11,500kg. S/No. 175950 (2005)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser

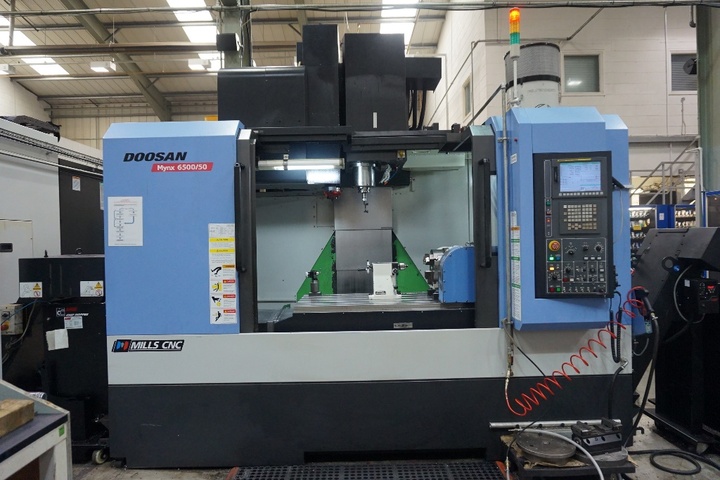

Lot 3: Doosan Mynx 6500-50 5 Axis Vertical Machining Centre
Doosan Mynx 6500-50 5 Axis Vertical Machining Centre with Fanuc I Series Control, Spindle Speed 6000 RPM BT50 Taper, Axis Travels X 1270mm, Y 670mm, Z 625mm, A Axis 360 degrees, B Axis +110 to -35 degrees, A and B Axis Type Kitagawa Unit, 30 Station ATC, Table Dimensions 670mm X 1400mm, X Y Rapids 30m/min, Z 24m/min, Renishaw Probing, Renishaw Tool Pre Setter, Through Spindle Coolant, Coolant Filtration Unit, LNS Swarf Conveyor, Filter Mist, Power On Time 18,622 Hours, Weight 9000kg. S/No. MV0049-001213 (2013)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser

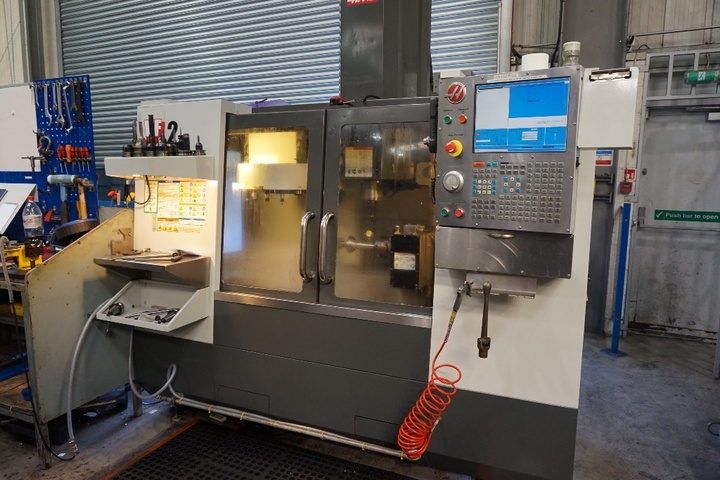

Lot 4: Haas VF2 4 Axis Vertical Machining Centre
Haas VF2 4 Axis Vertical Machining Centre with Haas CNC Control, Spindle 8100 RPM BT40 Spindle Taper, Axis Travels X 30” (762mm), Y 16” (406mm), Z 20” (508mm), fitted with a Hass 200mm Rotary Table, Rapids 25 m/min, Table Dimensions 36”x14”( 914x355mm), 20 Station Tool Carousel, Tailstock, Through Spindle Coolant, Coolant Filtration, Automatic Coolant Nozzle System, S/No. 1081647 (2010)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser
Lot 5: Haas VF2 4 Axis Vertical Machining Centre
Haas VF2 4 Axis Vertical Machining Centre with Haas CNC Control, Spindle 8100 RPM BT40 Spindle Taper, Axis Travels X 30” (762mm), Y 16” (406mm), Z 20” (508mm), Fitted with a Haas 200mm Rotary Table, Rapids 25m/Min, Table Dimensions 36”x14”( 914 x 355mm) 20 Station Tool Carousel, Through Spindle Coolant, Coolant Filtration, Automatic Coolant Nozzle System. S/No. 1059318 (2007)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser

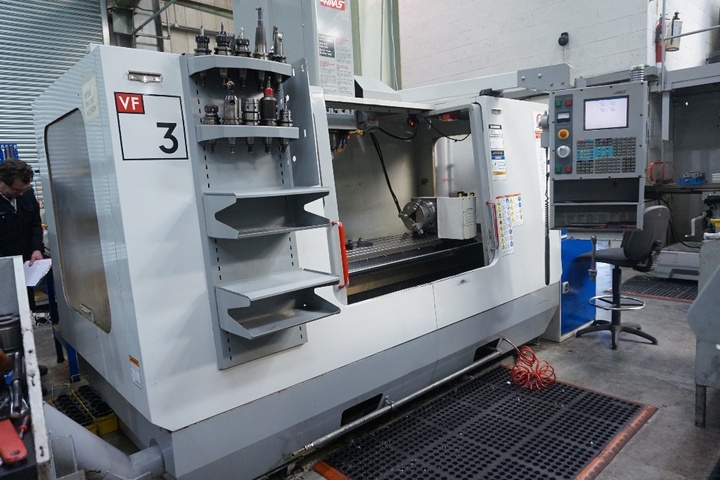

Lot 6: Haas VF 3 4 Axis Vertical Machining Centre
Haas VF 3 4 Axis Vertical Machining Centre with Haas CNC Control, Spindle 8100 RPM BT40 Spindle Taper, Axis Travels X = 40” (1016mm), Y = 20” (508mm), Z = 25” (635mm) fitted with a Haas 200mm Rotary Table, Rapids 25m/min, Table Dimensions 48”x18” (914x355mm), 20 Station Tool Carousel, Tailstock, Automatic Coolant Nozzle System. S/No. 36023 (2004)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser
Lot 7: Haas VF 4 4 Axis Vertical Machining Centre
Haas VF 4 4 Axis Vertical Machining Centre with Haas CNC Control, Spindle 8100rpm BT40 Spindle Taper, Axis Travels X = 50” (1270mm), Y = 20” (508mm), Z = 25”(635mm) Fitted with a Haas 200mm Rotary Table, Rapids 25m/Min, Table dimensions 52”x18”( 1321x355mm), 20 Station Tool Carousel, Tailstock, Automatic Coolant Nozzle System, S/No. 21039 (2000)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser

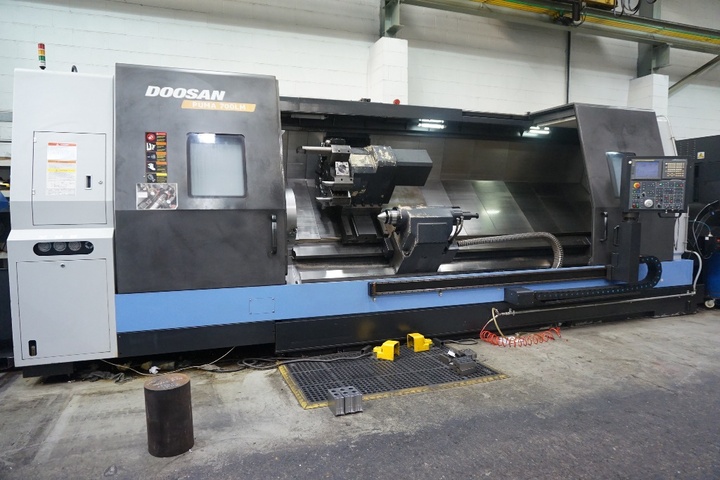

Lot 8: Doosan Puma 700LM 3 Turning Centre
Doosan Puma 700LM 3 Turning Centre with Fanuc 21i TB Control System, Maximum Spindle Speed1400rpm (Chuck Limitation) 24” 3 Jaw Chuck, 12 Station Turret of which all can be driven, Axis Travels X 470mm, Z 3230mm, C 360 (0.001) degrees, 3m between Centre’s, Programmable Tailstock, 150mm Quill diameter, Three Point Steady 35mm to 245mm Capacity, Tool Pre Setter, LNS Swarf Conveyor, Control On Time 50,363 Hours, S/No. 60lm0739 (12/2007)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser
Lot 8A: Extended Right Angled Driven Tool Head
Extended Right Angled Driven Tool Head - suitable for Doosan Puma 700LM (believed to be manufactured by Centreline)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser
Lot 8B: Extended Right Angled Driven Tool Head
Extended Right Angled Driven Tool Head - suitable for Doosan Puma 700LM (believed to be manufactured by Centreline)
Please Note: This Item is located in Newcastle. Unfortunately there are no loading facilities available on site. Dismantling and loading will be at the cost of the purchaser
