2466 - CNC Lathes & Machining Centres previously used by Habu Technology, Norway

Engineering

Auction ended on

2016-03-10 15:00:00.0

Time left

Auction finished

Auction description

Location:- These Items are located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Buyer's premium

Buyer's Premium will be charged at 16.00%.

VAT

Value added tax will be charged at 25.00%.

Viewing times

Viewing is available by appointment only with the Auctioneer
Please contact our UK Office on: +44 (0) 121 328 2424 or our Italian Office on + 39 0732 677 063 or email info@cottandco.it

The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all Norway export conditions and the obtaining of any applicable Export Licences

Please tick the box below and press confirm


* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Notice to purchasers

Final payment date

2016-03-14 17:00:00.0

Final clearance date

2016-03-24 17:00:00.0

Shipping agents

Storage contractors

Exporting/Importing from the UK details

Lots 1-10 of 28

Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
Preview image
Ends:
10 Mar 2016 15:40:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

Lot 1: Mazak VTC800/SR 5 Axis Vertical Machining Centre

Mazak VTC800/SR 5 Axis Vertical Machining Centre fitted with Mazatrol Matrix CNC Control System, Max Spindle Speed 18,000 RPM, Max Power At 30minute Rating 35kw, Mas BT 40 Spindle Taper, 48 Station ATC, Feed Axis Travels X Axis 3000mm, Y Axis 800mm, Z Axis 720mm, B Axis Plus 110 To Minus 110 Degrees From Vertical, C-Axis (500mm Diameter) 360.000 Degree, Rapid Feed Rates X Y Z 50 M/Min B Axis 18 M/Min, Cutting Feed Rates X Y Z 15 M/Min B Axis 1.8 M/Min, Table Dimensions 3500mm X = 820mm Max Weight On Table 2500kg, Fitted with a Renishaw Rmp-60 Probe, Centre Table Partion, 5th Axis (Rotary Table), Cromar Through Spindle Coolant System and Swarf Conveyor. S/No 226828 (2011)

4th Axis Unit with Tailstock 500mm. S/No. N123803, ...

Preview image
Ends:
10 Mar 2016 16:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

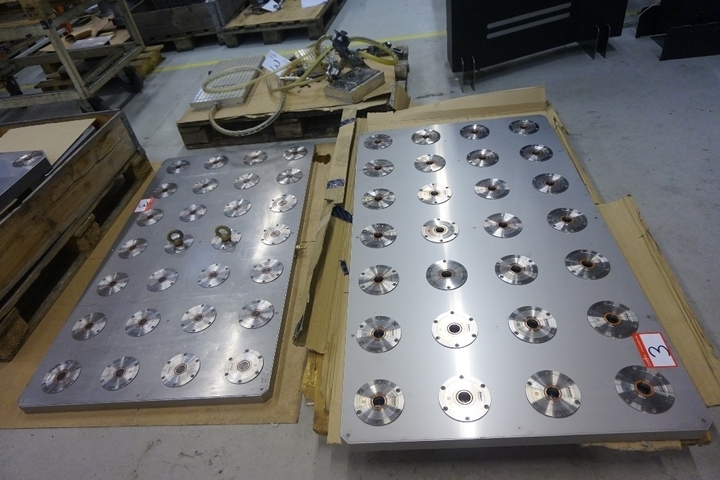

Lot 3: Vacuum Tables

Vacuum Tables – (2) 1.4m x 800mm, Small Vacuum Tables – (2) 270mm x 200mm (1) 600mm x 300mm.

Please Note: This Item is located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

6A: Combination to Include Lots 3, 4, 5 and 6

Preview image
Ends:
10 Mar 2016 16:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

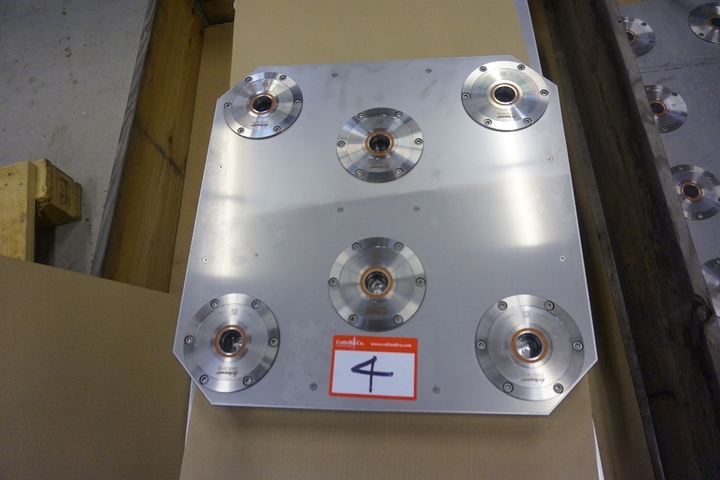

Lot 4: (7) Vacuum Tables

(7) Vacuum Tables, 500mm x 500mm

Please Note: This Item is located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

6A: Combination to Include Lots 3, 4, 5 and 6

Preview image
Ends:
10 Mar 2016 16:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

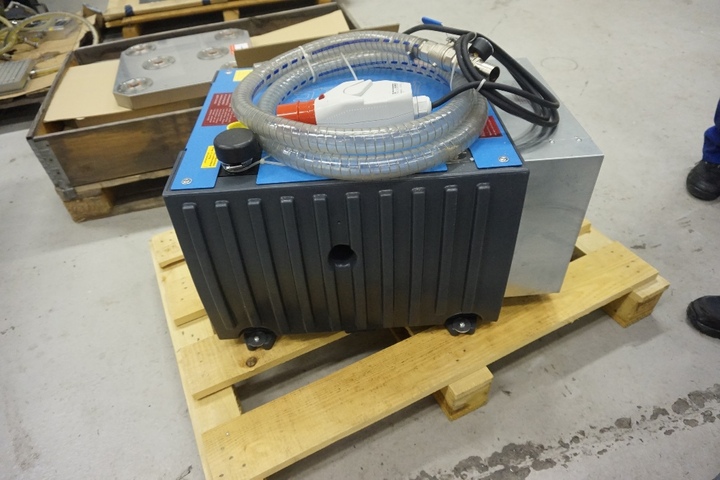

Lot 5: Vacuum Pump Model S-200

Vacuum Pump Model S-200. S/No. 93803/02/11

Please Note: This Item is located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

6A: Combination to Include Lots 3, 4, 5 and 6

Preview image
Ends:
10 Mar 2016 16:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

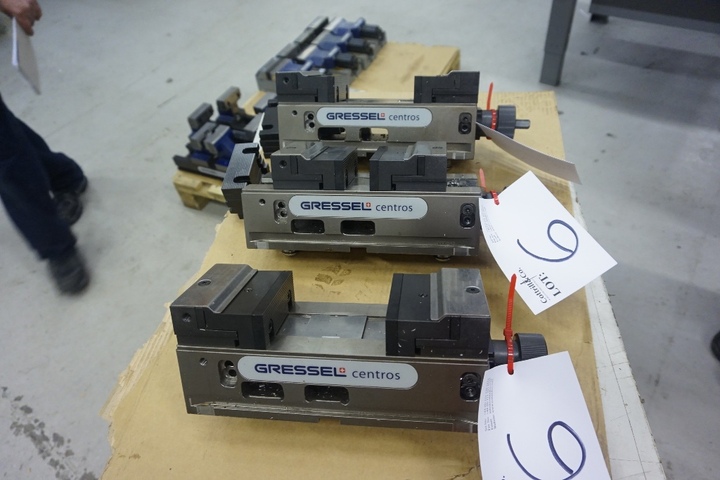

Lot 6: (3) Gressel Machine Vices

(3) Gressel Machine Vices for Vacuum Tables 100mm

Please Note: This Item is located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Please note this lot is also offered as a combination lot

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

6A: Combination to Include Lots 3, 4, 5 and 6

Preview image
Ends:
10 Mar 2016 16:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

Lot 6A: Combination to Include Lots 3, 4, 5 and 6

Combination to Include Lots 3, 4, 5 and 6

Vacuum Tables – (2) 1.4m x 800mm, Small Vacuum Tables – (2) 270mm x 200mm, (1) 600mm x 300mm

and

(7) Vacuum Tables, 500mm x 500mm

and

Vacuum Pump Model S-200. S/No. 93803/02/11

and

(3) Gressel Machine Vices for Vacuum Tables 100mm

Please Note: These Items are located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Lots in this combination

The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click here

Lot # Description
Preview image
Ends:
10 Mar 2016 16:40:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

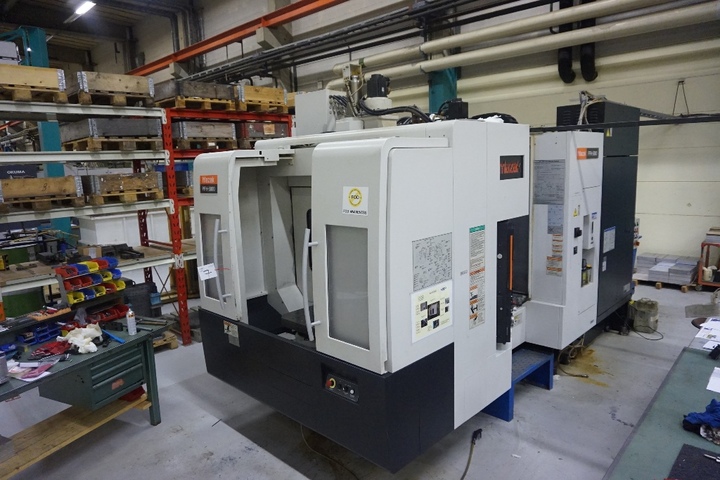

Lot 7: Mazak PFH-5800 Twin Pallet Horizontal Machining Centre

Mazak PFH-5800 Twin Pallet Horizontal Machining Centre fitted with Mazatrol 640M CNC Control System, Max Spindle Speed 15000rpm, Mas BT 40 Spindle Taper, 80 Station ATC, Feed Axis Travels X Axis 730mm, Y Axis 730mm, Z Axis 740mm. Rapid Feed Rates X Y Z 60m/Min, Cutting Feed Rates X Y Z 8m/Min, B Axis 1 Degree Indexing, Pallet Dimensions 500x500mm Maximum Load on Each Pallet 500kg fitted with Renishaw Probe, Through Spindle Coolant and Swarf Conveyor. S/No 178198 (2005)

Please Note: This Item is located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.

Preview image
Ends:
10 Mar 2016 16:10:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

Lot 8: Mazak Integrex 400III Multitasking CNC Mill/Turning Centre

Mazak Integrex 400III Multitasking CNC Mill/Turning Centre fitted with Mazatrol 640 MT Pro CNC Control System, Max Spindle Speed on Main Spindle 3300 RPM, Max Speed on Milling Spindle 12000 RPM, Main Spindle Power 30kw at 30 Minute Rating Milling Spindle 18.5kw At 30 Minute Rating, 40 Station Cap to C6 ATC, Feed Axis Travels X Axis = 630mm, Y Axis = 265mm, Z Axis = 1585mm, B Axis Travel 225mm (-30 To 195 Degrees) C Axis 360 Degrees (0.0001). Max Turning Length 1500mm, Max Turning Dia 630mm fitted with Kitagawa B-212 Chuck, SMW Type SLU-3.2-ZS 3 Point Steady 50-200mm, Swarf Conveyor, Tool Presetter Coolant through Milling Spindle. S/No 179317 (2005)

Please Note: This Item is located in Narvik, Norway. Unfortunately there ...

Preview image
Ends:
10 Mar 2016 16:00:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

Lot 9: Okuma LB 45 II M Heavy Duty 3 Axis CNC Lathe

Okuma LB 45 II M Heavy Duty 3 Axis CNC Lathe fitted with OSP-P200L CNC Control, Main Spindle Speeds 12-2800rpm, Driven Tool Spindle Speed 40-2000 RPM, Axis Travels X Axis 440mm, Z Axis 3060mm, C Axis 360 Degrees (0.001 Degree), Max Turning Dia 650mm, Max Work Length 3000mm, Spindle Bore Dia 110mm, Swing Over Bed 850mm, Fitted with SMW Chuck Size 500mm, 12 Station VDI 60 Turret of which all can be driven, Programmable Tailstock with MT5 Taper, Tool Presetter, SMW 3 Point Steady 100mm To 350mm Diameter, Cromar Swarf Conveyor. S/No 133606 (2007)

Please Note: This Item is located in Narvik, Norway. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser. ...

Preview image
Ends:
10 Mar 2016 17:50:00 GMT
Time left:
Bidding ended
Buyer's premium:
16.00%
VAT rate:
25.00%

Lot 10: Okuma LU 400 M Simul Turn 5 Axis CNC Lathe

Okuma LU 400 M Simul Turn 5 Axis CNC Lathe fitted with OSP-200L CNC Control, Spindle Speed 38-3800rpm, Live Tooling Speed 30-3000 RPM, Axis Travels Upper Turret X Travel = 300mm Z Travel = 1275mm, Lower Turret X Travel = 195mm, Z Travel = 1270mm, C Axis 360 Degrees (0.001 Degree). Max Turning Dia 420mm, Max Turning Length 1250mm, Spindle Bore Dia 80mm, Swing Over Bed 650mm, Upper Turret 12 Station VDI 40 Tooling of which all can be driven, Lower Turret 10 Station VDI 40 Tooling fitted with a 12’’ Chuck, Tool Presetter, Tailstock with 150mm Quill Travel And MT5 Bore Taper, Swarf Conveyor, Machine Weight Approx. 12500kg. S/No 121634 (2006)

Please Note: This Item is located in Narvik, Norway. Unfortunately there are no ...
