2644 - CNC Machining Centres, Wire EDM Machines, Toolroom Machinery and Ancillary Equipment no longer required by Roxill Engineering & Hydraulics Ltd and Others
Engineering
Auktion beendet am
Verbleibende Zeit
Artikelbeschreibung
Location: These Lots are located in Birmingham & Tamworth
Please see individual lots for location and loading information.
Käuferprovision
Es gilt ein Aufgeld von 16.00 %.
Mehrwertsteuer
Zzgl. Mehrwertsteuer in Höhe von 20.00 %.
Seitenaufrufe
Viewing will be available by appointment only with the
Auctioneer
Please contact our UK Office on: +44 (0) 121 328 2424 or
email: info@cottandco.com
* Bitte beachten Sie: - Jede Übersetzung mit Google Translate ist nicht als genaue Übersetzung garantiert und dient nur zur Orientierung. Die englische Losbeschreibung ist die übergeordnete Beschreibung und erfolgt nach bestem Wissen des Auktionators. Die Richtigkeit wird jedoch nicht garantiert und sollte vom Käufer vor Gebotsabgabe überprüft werden.
Hinweis für die Käufer
Datum der letzten Zahlung
Endgültiges Freigabedatum
Versandunternehmen
Lagerfirma
Details zum Exportieren/Importieren aus Großbritannien
Lose 1-10 von 91

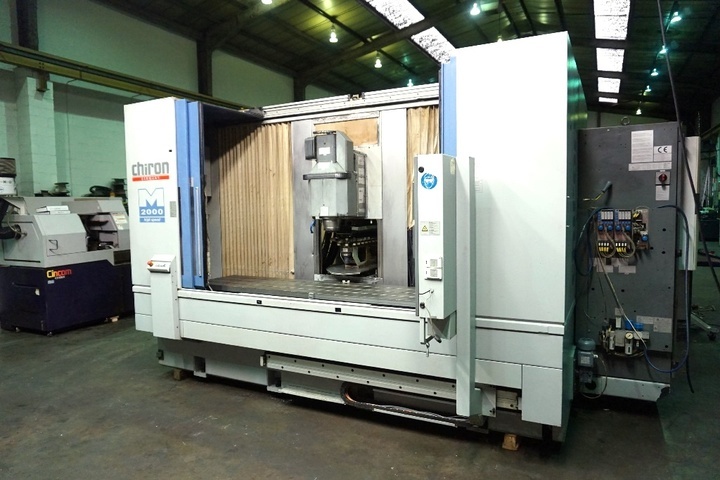

Los 1: Chiron 220-88 M2000 High Speed Machining Centre
Chiron 220-88 M2000 High Speed Machining Centre with GE Fanuc Series 18i-M Control, 40 Station ATC, Table Size 2600mm x 550mm, Automatic Doors. S/No. 220-88 (2003)
Please Note: This lot is located in Birmingham and can be loaded free of charge to a suitable vehicle should the purchaser be able to supply front loaders, alternatively, loading of the machine will be at the cost of the purchaser. Blocking and securing will be at the cost of the purchaser.

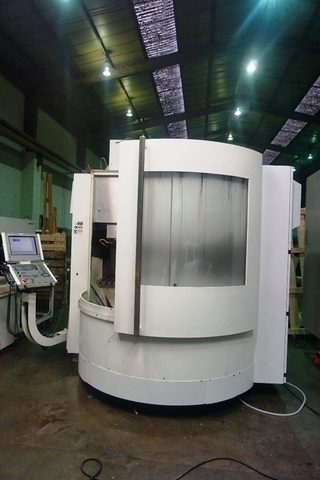

Los 2: Mikron XSM800 CNC Vertical Machining Centre
Mikron XSM800 CNC Vertical Machining Centre
with Heidenhain 530i Control, 36,000 RPM Step-tec
Spindle, 30 ATC, Swarf Management, Fume
Extractor, Chiller, X-axis stroke approx 800mm. S/No.
107.76.00.018 (2009)
Please Note: This Item is located in Birmingham.
Unfortunately there are no loading facilities for this lot.
Dismantling & Loading will be at the cost of the
purchaser.

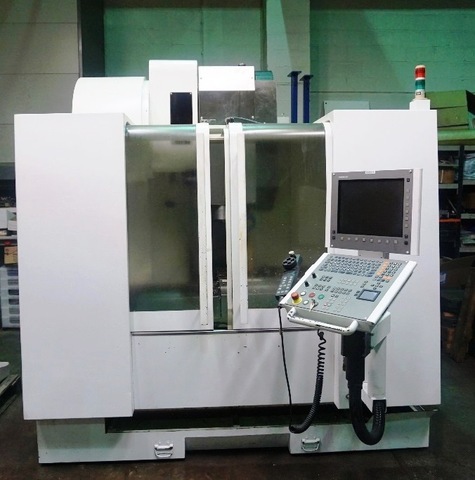

Los 3: Mikron VCE600T CNC Vertical Machining Centre
Mikron VCE600T CNC Vertical Machining Centre
with Heidenhain 530i Control, Swarf Conveyor, 10,000rpm,
500mm X- travel, 30ATC, BT Tooling. S/No. 0328
(2005)
Please Note: This Item is located in Birmingham and will be
loaded free of charge to a suitable vehicle. Blocking and Securing
will be at the cost of the purchaser.

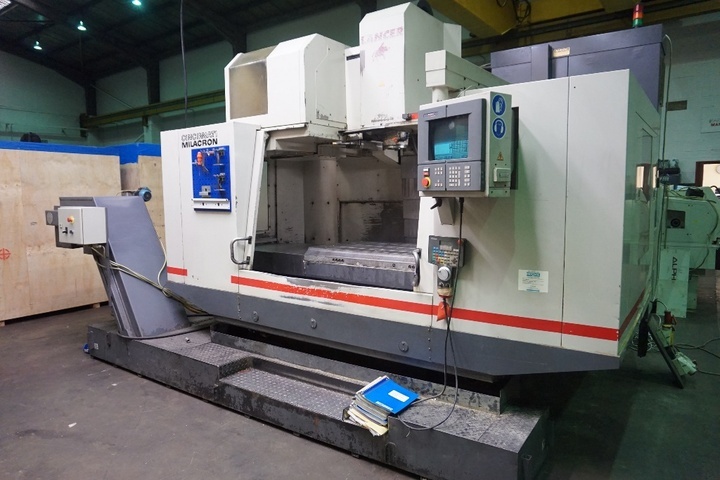

Los 4: Cincinnati Milacron Lancer 1250 Vertical CNC Machining Centre
Cincinnati Milacron Lancer 1250 Vertical CNC Machining Centre with Acramatic A2100 CNC Control, 30 Tool ATC, Bed size 1370mm x 680mm - Travels X axis 1250mm, Y axis 600mm, Z axis 900mm, Spindle Speed 8000rpm, Spindle Taper BT 50, Swarf Conveyor and Coolant System. S/No. 7041 A01 95 0108 (1995)
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.
Los 5: Harrison Alpha 1350S CNC Lathe
Harrison Alpha 1350s 2 Axis CNC Lathe with Harrison Ge Fanuc Alpha 1000 Series Control System, Touch Screen, Maximum Spindle Speed 3250rpm, Axis Travels X=230mm, Z=500mm, Rapid Feed Rates X=3m/min Z=6m/min, Distance between Centres 760mm, Fitted with 160mm Pratt 3 Jaw Chuck, Manual Tailstock, 4 Position Manual Tool Post. S/No. S9D107 (2004)
Please Note: This Item is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and Securing however will be at the cost of the purchaser.

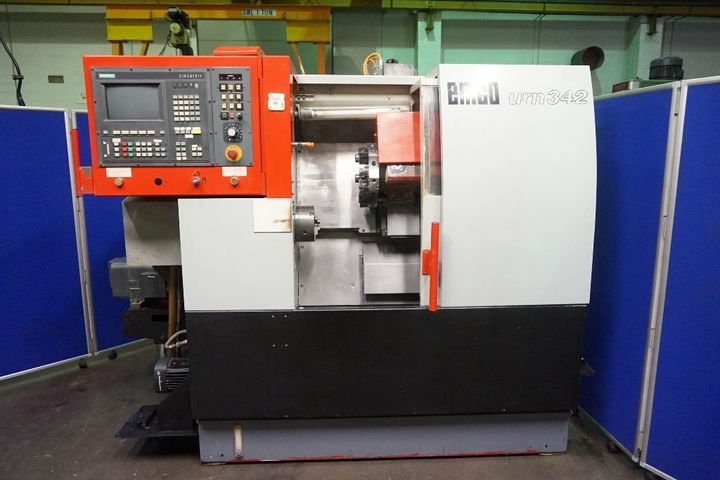

Los 6: Emco 342 CNC Lathe
Emco 342 CNC Lathe with Siemens Sinumerik Control System, Maximum Spindle Speed 6000rpm, Axis Travels X=300mm Z=300mm, 6” 3 Jaw Chuck, Tail Stock, 42mm Bar Capacity, 12 Station VDI Turret, Distance between Centers 300mm.
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
Los 7: ONA Techno H400 Large capacity 4 Axis CNC EDM machine
ONA Techno H400 Large Capacity 4 Axis CNC EDM Machine with ONA Techno 60 CNC Control with display, 6 position Tool Changer, C Axis, Max Generator power 60 Amp, Min. Surface Finish 0,10Ra (0 VDI), ONA Long Life Filter System, Fire Extinguisher & Smoke Extractor Unit, Travel X, Y, Z 600mm x 400mm x 400mm, Working Tank dimensions XYZ 900mm x 550mm x 300mm, Work Table dimensions XY 800mm x 600mm, Max. distance between Head/Table 620mm, Max. weight of the Electrode 200Kg, Max. Workpiece weight 1,500Kg, Floor Plant occupied WDH 2,700 x 2,800 x 2,715m (2003)
Please Note: This lot is located in Birmingham and can be loaded free of charge to a suitable vehicle. Blocking and Securing will be at the cost of the purchaser
Los 8: Eurospark EZE 3040 Manual ZNC EDM Machine
Eurospark EZE 3040 Manual ZNC EDM Machine with Eurospark EZE Control and programmable Z depth, 50 Amp Generator, Work Table size 650mm × 400mm Travel X, Y, Z 400mm x 300mm x 200mm, Ram Platen to Work Table 230 ~ 630 mm, Max. Electrode weight 75kg, Max. Workpiece weight 900kg, Work Tank size W × D × H 1050mm × 560mm × 340mm. S/No. 03031011 (2003)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

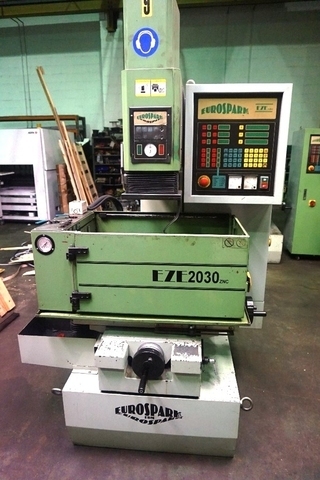

Los 9: Eurospark EZE 2030 Manual ZNC EDM Machine
Eurospark EZE 2030 Manual ZNC EDM Machine with Eruospark EZE Control and Programmable Z depth, 50 Amp Generator, Work Table size 600mm × 300mm, Travel X, Y, Z 300mm x 200mm x 200mm, Ram Platen to Work Table 190 ~ 500 mm, Max. Electrode weight 75kg, Max. Workpiece weight 900kg, Work Tank size W × D × H 980mm × 550mm × 300mm (2003)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

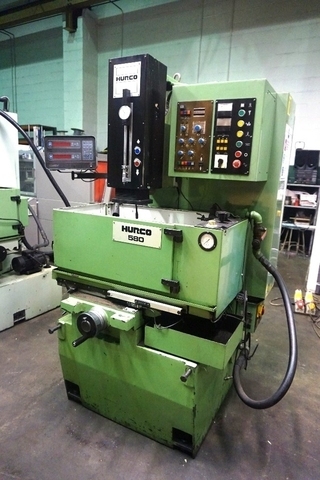

Los 10: Hurco 580 Manual EDM Machine
Hurco 580 Manual EDM Machine, Travel X, Y, Z 300mm x 200mm x 200mm, Work Table size 500mm × 300mm, Work Tank size W × D × H 750mm × 480mm × 300mm
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
