Przedmiot 1: Toshiba NX76B Horizontal Machining Centre

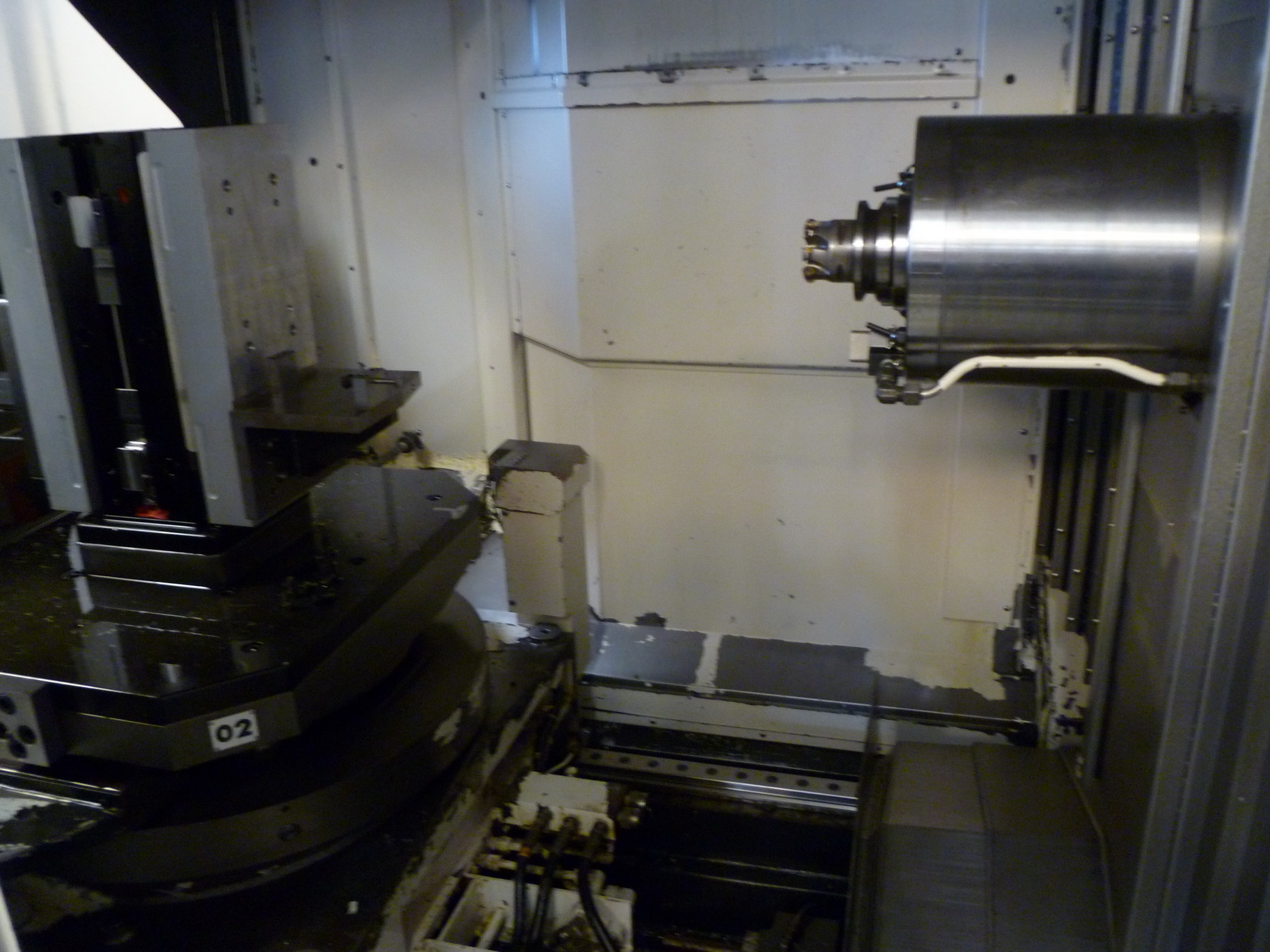

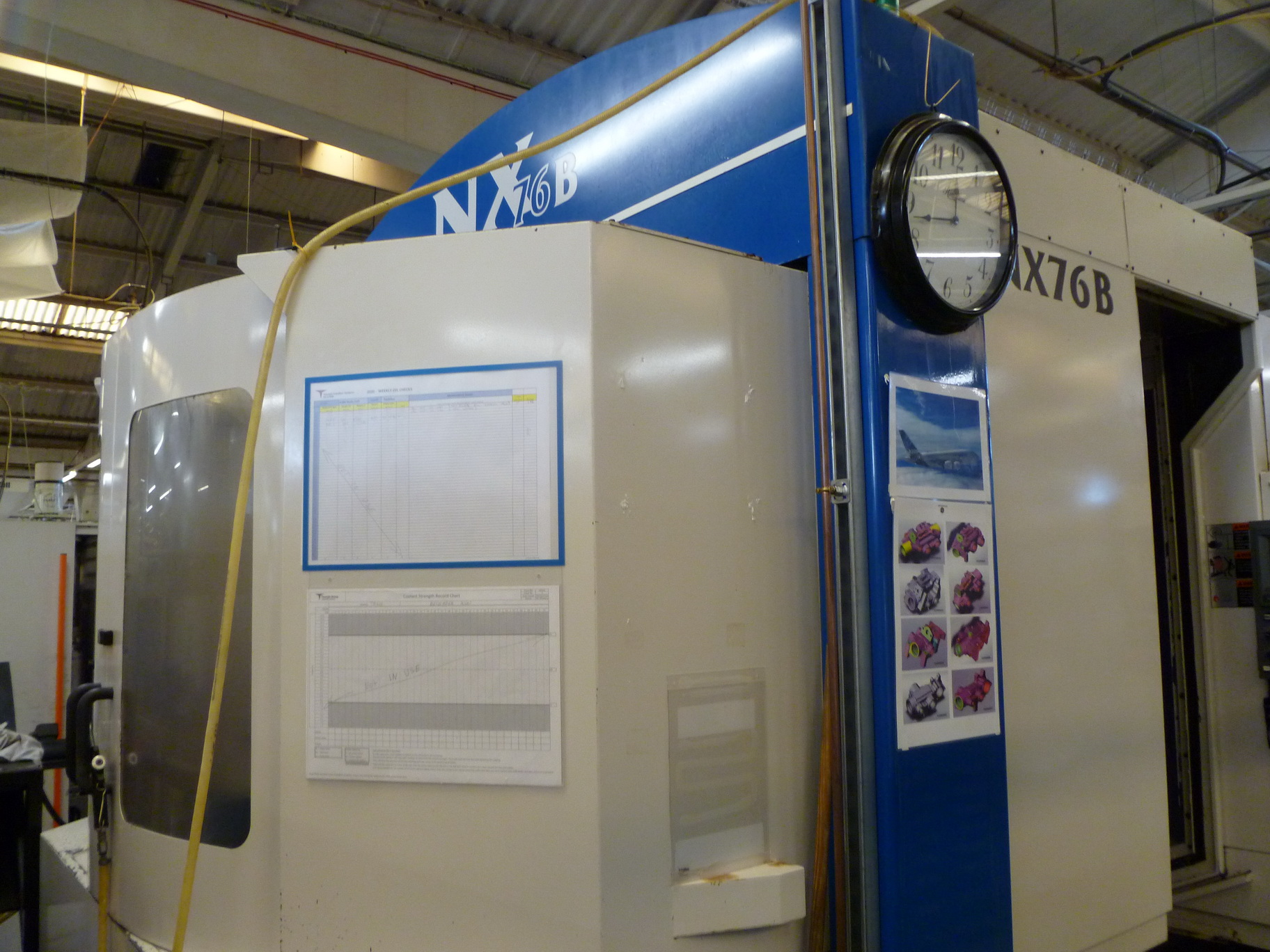

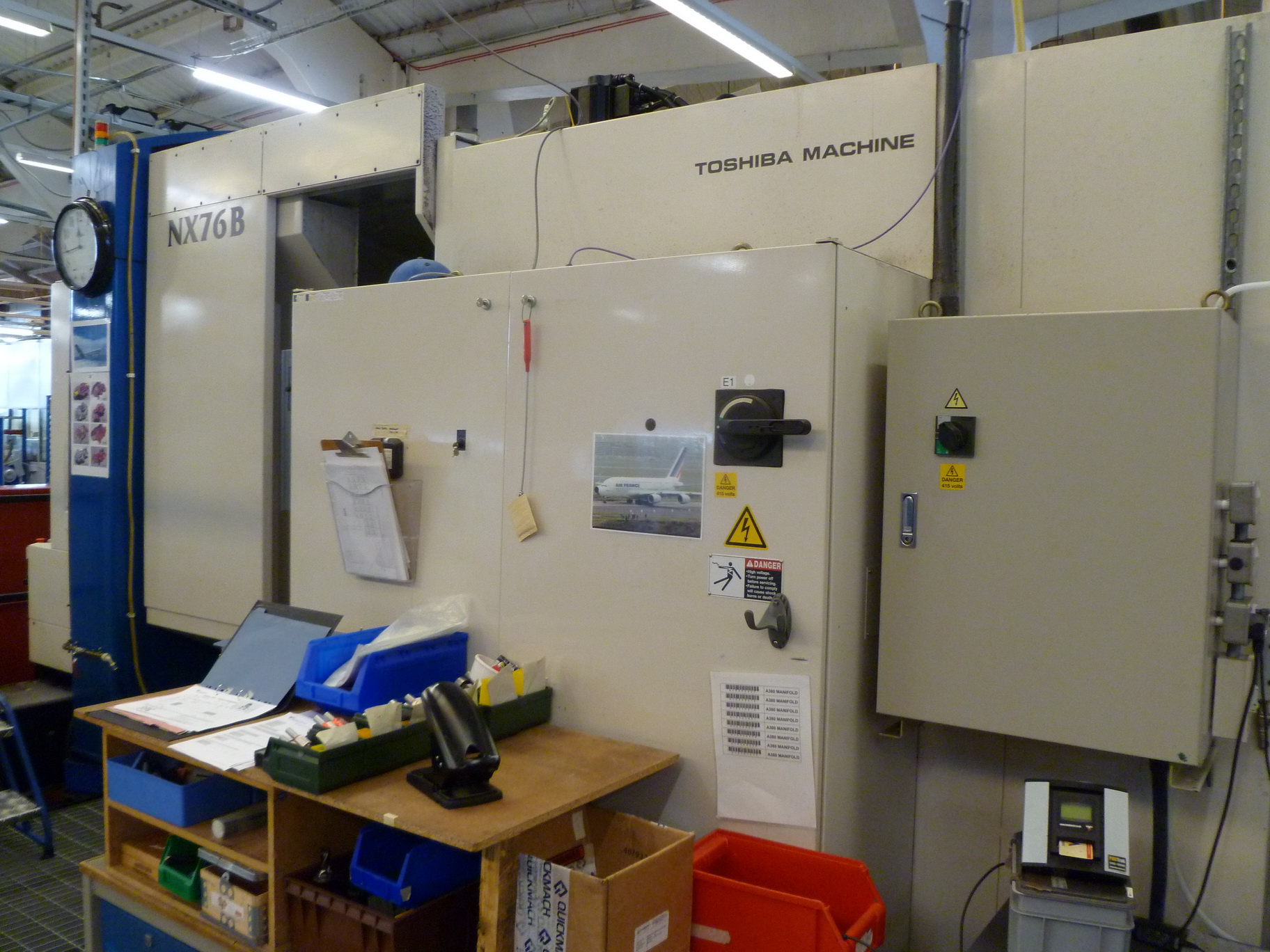

Toshiba NX76B Horizontal Machining Centre S/No. 213057 (09/2003) with Tosnuc 888 CNC Control System S/No. 912722 (08/2003), X axis (column cross) - 1000 mm, Y axis (spindle carrier vertical) - 760 mm, Z axis (pallet longitudinal) - 780 mm, Pallet size - 630 mm by 750 mm, Number of pallets - 2, Maximum workpiece size - 1000 mm dia. by 1010 mm H, Pallet load capacity - 1,300 kg, Pallet table index - 1 degree, Spindle speed range - 50 - 8,000 rpm ( 200 - 20,000 ), Spindle taper - 7/24 taper No.50 (7/24 taper No.40), Feedrate : rapid traverse - 30 metres / min, feedrate - 1 - 30,000 mm / min, Type of toolshank - MAS BT50 / BT40, Tool storage capacity - 38 tools, Maximum tool diameter : (adj.pots full) - 125 mm, (adj.pots empty) - 250 mm, Maximum tool length - 450 mm, Maximum tool mass - 20 kg (8 kg), Spindle drive motor - AC 30 / 26 kW, Power capacity - approx. 69 kVA.

Please Note: This lot is located in Isle of Man. Unfortunately there are no loading facilities onsite, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Please Note: Should you be successful in purchasing an item and wish to Export it from the UK, a charge of £55 plus VAT will be automatically added to your invoice to prepare the goods and the paperwork which will require UK Export Customs Declarations. This process is now a mandatory UK export requirement from 1st January 2021. All our invoices are issued on an Incoterms EXW (Ex Works) basis. Furthermore, the purchaser shall at its own costs be responsible for ensuring that these items are exported in accordance with the original equipment manufacturers (OEM) specification in order to avoid any difficulties with support in the destination country.
