2315 – Fabrication Equipment previously used in the Manufacture of Aluminium Roof & Wall Cladding Systems
'Description de l''enchère'
Schroder Decoiling, Levelling, Cut to length and Slitting Line, Weiger Machinenbau Type 6/6 6000mm x 6mm Mild Steel Hydraulic Guillotine Shear, Edwards Pearson (Picot, France) RCS150-30 3050mm x 2mm 3-Roll Hydraulic Double Initial Pinch Plate Bending Rolls, Walton TSR3-50 1250mm x 1.6mm Hand Operated Initial Pinch Bending Rolls, Wecotech Tubex 72 Hydraulic Tube End Expanding Machine Plus Many Others...
Temps de consultation
Viewing by Appointment only with the Auctioneer only, please contact our Office on: + 44 (0) 121 328 2424
'L''enchère se termine le':
mercredi 16 jui 2014 at 03:00 PM BST
Prime d'acheteur
'La prime d''acheteur sera fixée à 15.00%.
TVA
La taxe sur la valeur ajoutée s''élèvera à 20.00%.
Date limite de paiement
vendredi 18 jui 2014 at 05:00 PM BST
finalClearanceDate
jeudi 31 jui 2014 at 05:00 PM BST
Agents d''expédition
Liste des agents d''expédition
Sous-traitants pour le stockage
Liste des sous-traitants pour le stockage
Exporter/Importer des détails du Royaume-Uni
Location:- These Items are located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
È necessario effettuare il login per poter fare offerte
L''enchère se termine le
mercredi 16 jui 2014 at 03:00 PM BST
Prime d'acheteur
'La prime d''acheteur sera fixée à 15.00%.
TVA
La taxe sur la valeur ajoutée s''élèvera à 20.00%.
Date limite de paiement
vendredi 18 jui 2014 at 05:00 PM BST
'Date limite d''apurement'
jeudi 31 jui 2014 at 05:00 PM BST
'Agents d''expédition'
'Liste des agents d''expédition'
Sous-traitants pour le stockage
Liste des sous-traitants pour le stockage
Exporter/Importer des détails du Royaume-Uni
Lots 1-19 / 19
Lot 1: Schroder Decoiling, Levelling, Cut to length and Slitting Line
Schroder Decoiling, Levelling, Cut to length and Slitting Line, 3mm Aluminium Capacity, 2mm Galvanised Steel, 1530mm Cutting Width, 4400kgs Coil Weight, 4-Station Powered Indexing Coil Holder, Bachman AG, Bergen, Powered Rail Mounted Scissor Lift Coil Carriage Decoiling Unit, Expanding Arm, 4400kg Capacity X 1530mm Wide, Rubber Wheeled Top Clamping, Pneumatic Rise and Fall Transfer Table from Decoiler to levelling rolls, Levelling Rolls, 7 Rolls ; 4 Driven Lower Guide Rolls, 3 Adjustable Upper Guide Rolls, 3 Pairs of Roller Cutters with Pressure Rings, On 2 Driven Cutting Shafts, Schroder 1530mm Wide Plate Cutter with Pneumatic Clamp, Pneumatic Pick and Place Offloading System with Stacking Table, Recoiling and Weighing Feature with Digital Display, Lauer PCS 515 Busline Mini Control, Control Panel for Coil handling and decoiling, Control panel for all other functions, Operators Manuals. S/No. 121708 (1998)
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 2: Wieger Maschinenbau Type 6/60 6000mm x 6mm Mild Steel Hydraulic Guillotine Shear
Wieger Maschinenbau Type 6/60 6000mm x 6mm Mild Steel Hydraulic Guillotine Shear, Programmable Digital Back Gauge, Stroke Limitation, Front Support Arms, Squaring Arm, Foot Pedal Operation and Floor Standing. S/No. 403041 (1989)
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 3: Edwards Pearson (Picot, France) RCS150-30 3050mm x 2mm 3-Roll Hydraulic Double Initial Pinch Plate Bending Rolls
Edwards Pearson (Picot, France) RCS150-30 3050mm x 2mm 3-Roll Hydraulic Double Initial Pinch Plate Bending Rolls, Roll Dia 150mm, All Rolls Driven, Hydraulic Adjustment to bottom 2 Rolls, Digital Readouts for Roll Position, Manual Drop End, Emergency Trip Wires (2003)
Please Note: Used for Rolling Aluminium Only
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 4: Walton TSR 3 50 1250mm x 1.6mm Hand Operated Initial Pinch Bending Rolls
Walton TSR 3 50 1250mm x 1.6mm Hand Operated Initial Pinch Bending Rolls, Roll Dia 75mm, Top Roll to Slip. S/No. 8682
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 5: Wecotech Tubex 72 Hydraulic Tube End Expanding Machine
Wecotech Tubex 72 Hydraulic Tube End Expanding Machine for Tube Diameters from 20mm, Max Form Length 100mm, Max Tube Wall Thickness 4mm, Expanding Stroke 14mm, Capacities given depending on tooling, 4KW Motor, 415V, 3 Phase 50HZ, Foot Pedal Control with 3 Sets of Former/Dies, 3" (75 MM), 4" (100MM), 6" (150 MM)
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 6: LVD PPEB 250 Ton x 8550mm Over Bed, Downstroke Hydraulic CNC Press Brake
LVD PPEB 250 Ton x 8550mm Over Bed, Downstroke Hydraulic CNC Press Brake with MNC85 3 Axis Control (X, Y1, Y2), 5 Manual Z Axis Back Gauge Posts with Sick Machine mounted operator guards, Full length top tooling and full length 16mm single die, weight 40,000kgs. S/No. 13400 (1987)
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 7: HIAB Self Contained Lifting Cell
HIAB Self Contained Lifting Cell with Hiab 10,000kgs Lifting Capacity (1.9m reach), Hydraulic Articulated lifting arm with (4) Hydraulically Operated Outriggers, Deutz 6 Cylinder Diesel Driven Generating Set, Battery Start, Exhaust Silencer, Enclosed in open top container, used for loading coils of aluminium onto forming line.
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 8: Baumann AS30 12 NP Diesel Side Loading Fork Lift Truck
Baumann AS30 12 NP Diesel Side Loading Fork Lift Truck, 5000kgs Capacity at 600mm, 4100kgs at 700mm, 3500kgs at 800mm, Lifting Height 3500mm. S/No. 3040
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 9: Electac A1 Mobile Air Filter Extraction Unit
Electac A1 Mobile Air Filter Extraction Unit with Flexible Extractor Arm, 110 Volt, 1 Phase, 50HZ. S/No. 207577
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 10: Nederman Mobile Fume and Dust Extraction Unit
Nederman Mobile Fume and Dust Extraction Unit with Lockable Wheels, 110 Volt, 1 Phase, 50HZ (2010)
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 11: Electac A1 Mobile Air Filter Extraction Unit
Electac A1 Mobile Air Filter Extraction Unit with Flexible Extractor Arm, 110 Volt, 1 Phase, 50HZ. S/No. 207578
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 12: Ingersoll Rand Model SSR-UP5 18-7 Rotary Screw Air Compressor
Ingersoll Rand Model SSR-UP5 18-7 Rotary Screw Air Compressor in Enclosure, 18.5KW Motor, 106 CFM @ 100 PSI Working Pressure with Separate Air Dryer Unit S/No. 2498760009 and Vertical Air Receiver. S/No. 2210839 (2004)
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser

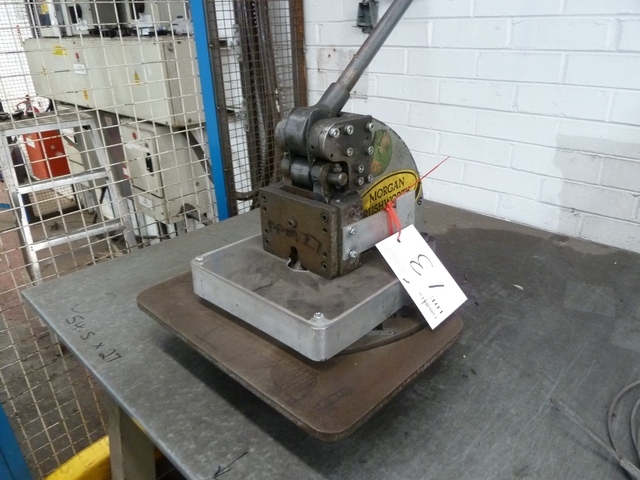

Lot 13: Morgan Rushworth Hand Operated Corner Notcher
Morgan Rushworth Hand Operated Corner Notcher, Capacity 150 x 150 x 1.6 mm
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser

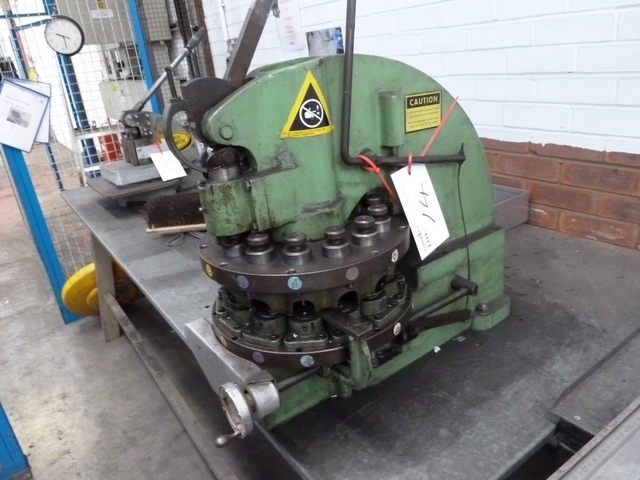

Lot 14: Diacro Houdaille 12-Station Hand Operated Turret Punching Machine
Diacro Houdaille 12-Station Hand Operated Turret Punching Machine, each station rated to take from 3mm to 12.7mm diameter with Hand Operated Back Gauge and Measure.
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 15: Alligator HD360LR Horizontal Band Saw
Alligator HD360LR 300mm Rounds Capacity, 2-Way Metre Cutting Horizontal Band Saw, Capacities at 90 Deg 300mm Rounds, 360 x 190mm Rectangles at 45 degrees 240mm rounds, 250 x 190mm Rectangles at 60 Deg 160mm Rounds, 150 x 155mm Rectangles with Length Stop, Coolant and Spare Blades. S/No. 15/06/0896
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 16: Henrob Hand Held Pneumatic Riveting Machine
Henrob Hand Held Pneumatic Riveting Machine with Support Beam 40kg SWL
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 17: Henrob Hand Held Pneumatic Riveting Machine
Henrob Hand Held Pneumatic Riveting Machine, Mounted on Support Beam.
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
Lot 18: Prosaw Longitudinal Table Circular Cold Saw
Prosaw Longitudinal Table Circular Cold Saw for Aluminium, 500mm Max Blade Diameter, Length of Blade Travel 1500mm
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser

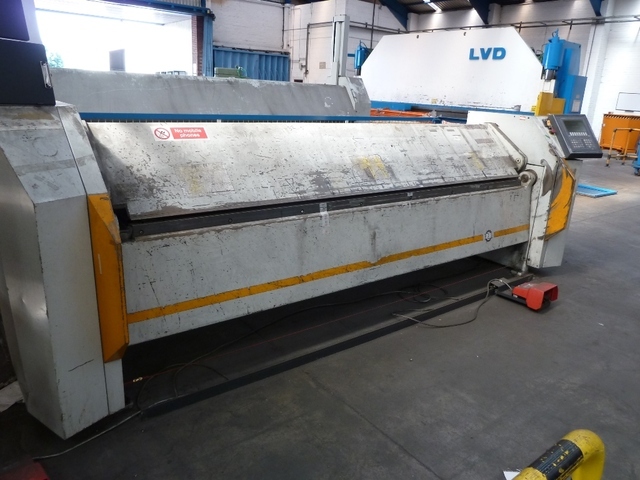

Lot 19: RAS Turbobend 61.31 3000mm X 1.5mm Mild Steel CNC Universal Folding Machine
RAS Turbobend 61.31 3000mm X 1.5mm Mild Steel CNC Universal Folding Machine with System 4000 Control, Backgauge 6-1000mm WITH Pneumatic Support Arms, Full Length Straight Tooling.
Please Note: This Item is located in Merseyside - Dismantling and Loading will be at the cost of the purchaser
