Lot 1: WFL M35-G 1800 7 Axis Millturn

Back to auction
Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
05 May 2020 16:20:00 BST
Time left:
Bidding ended

Item description

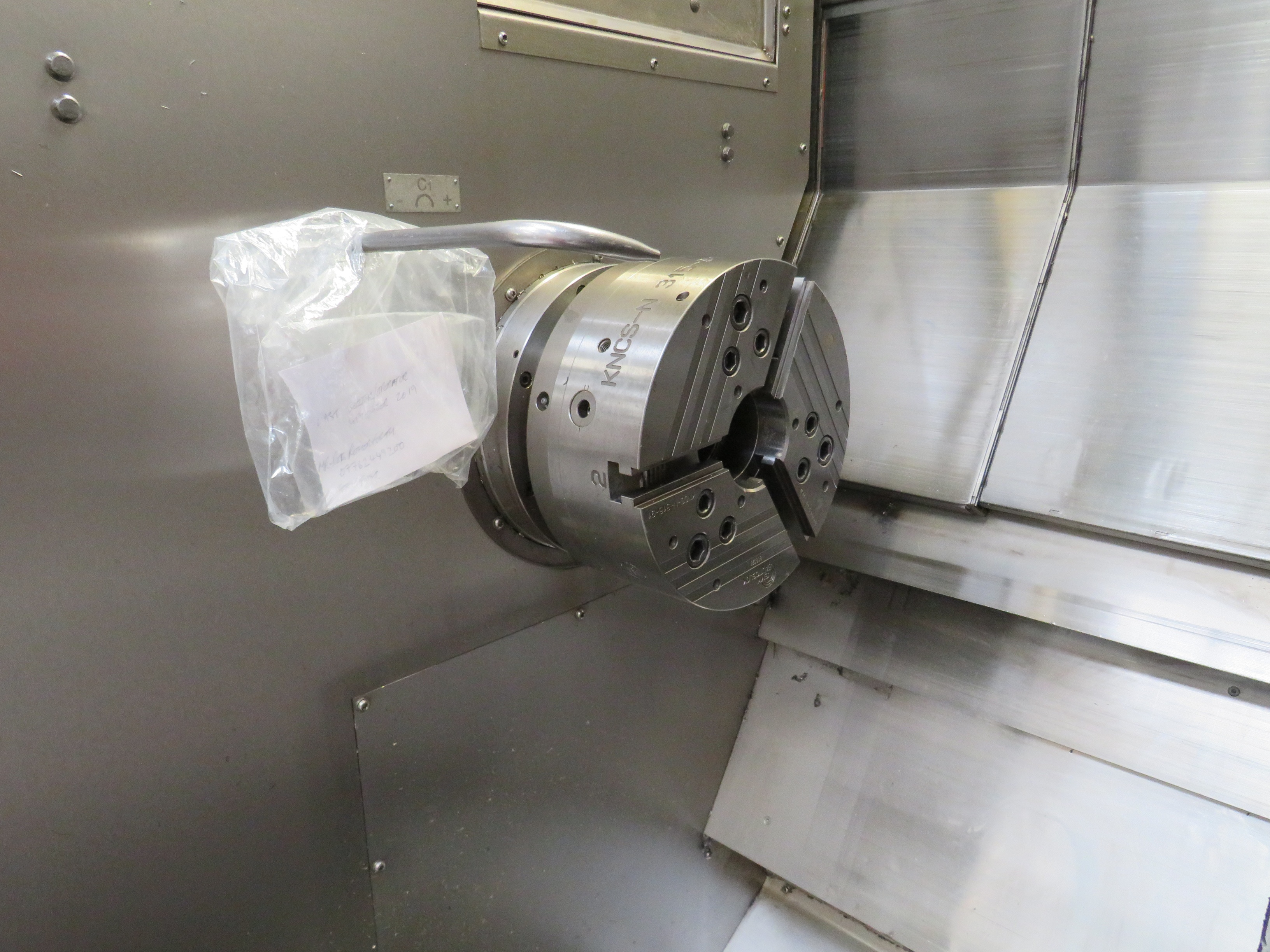

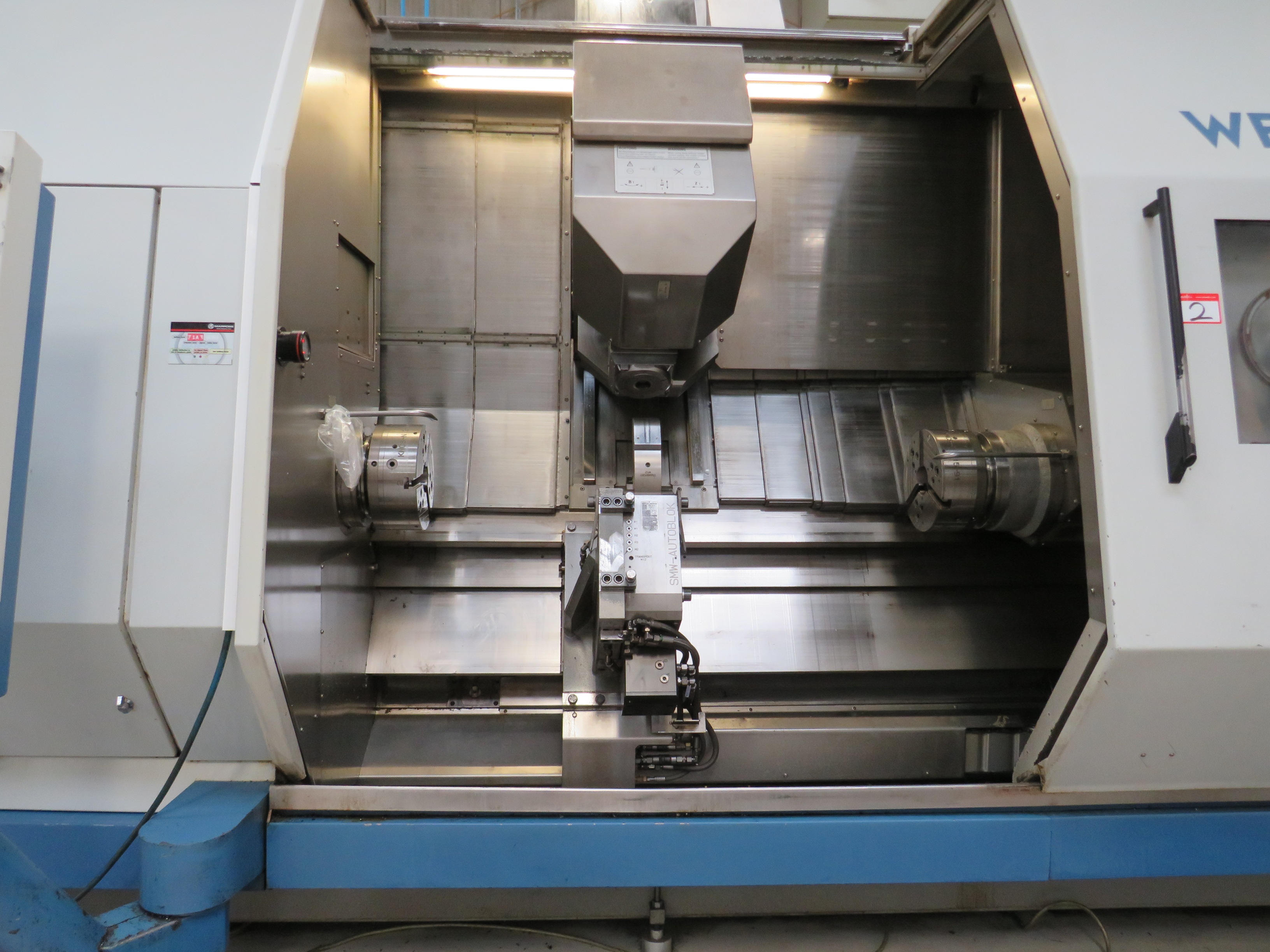

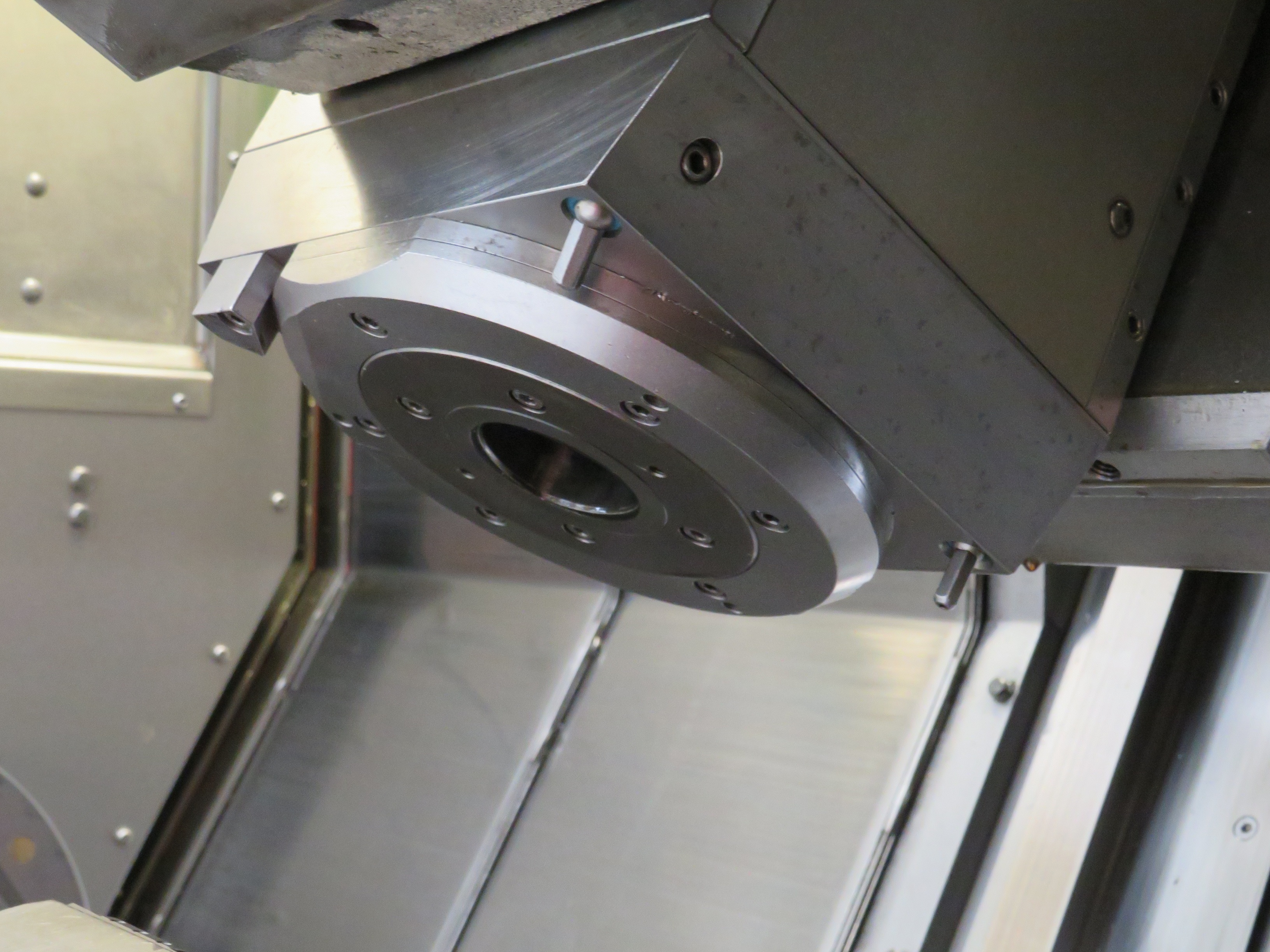

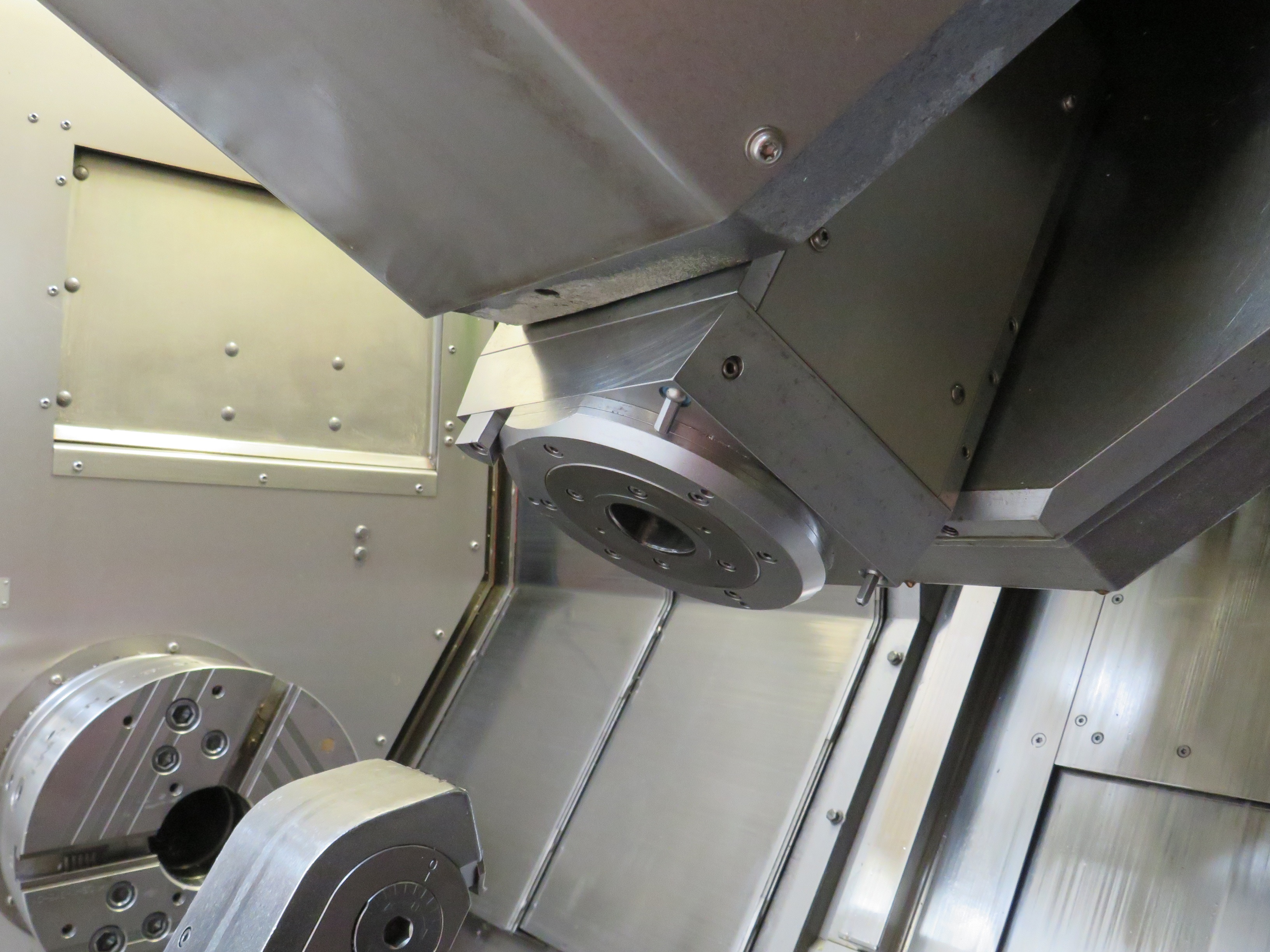

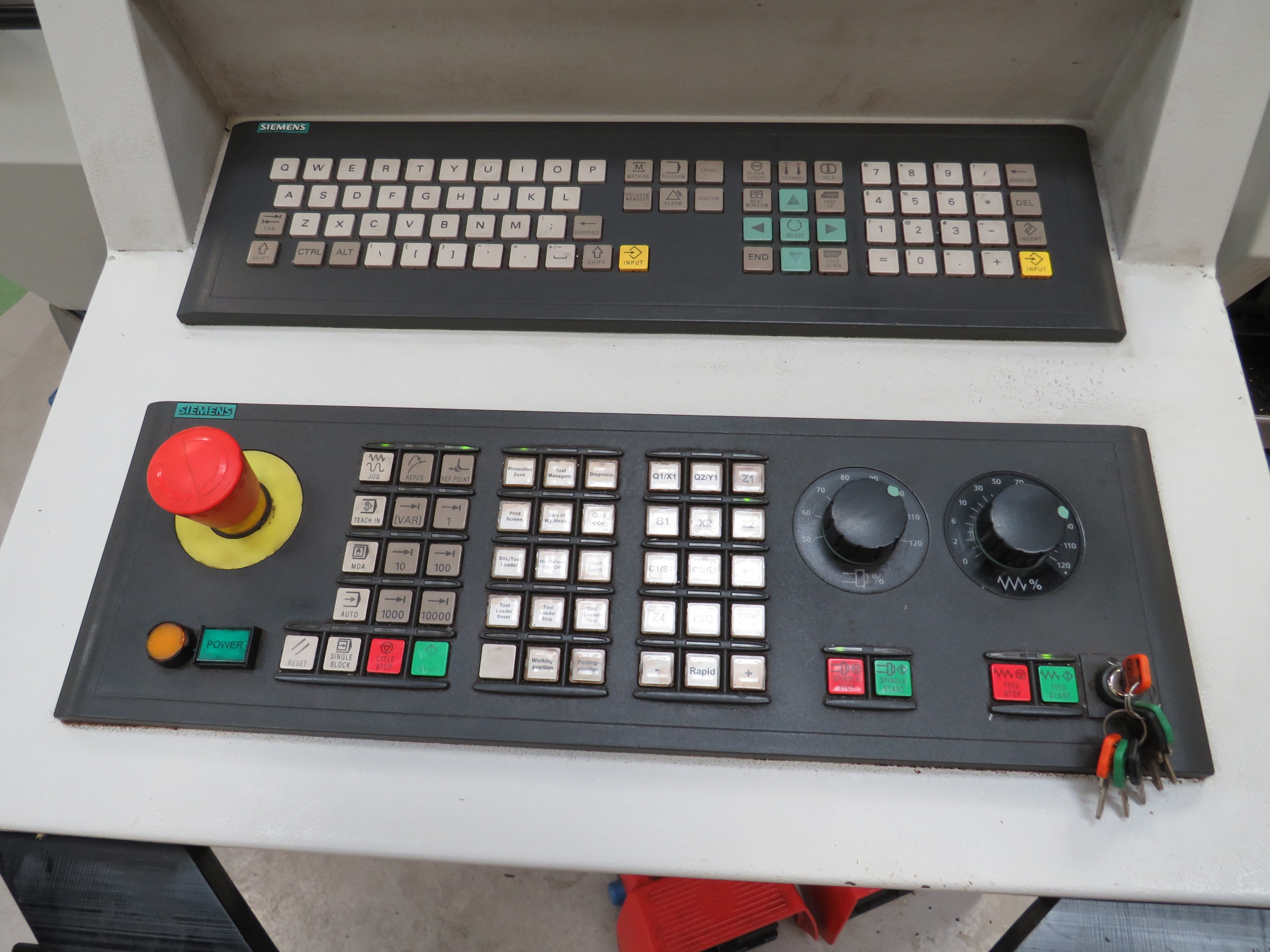

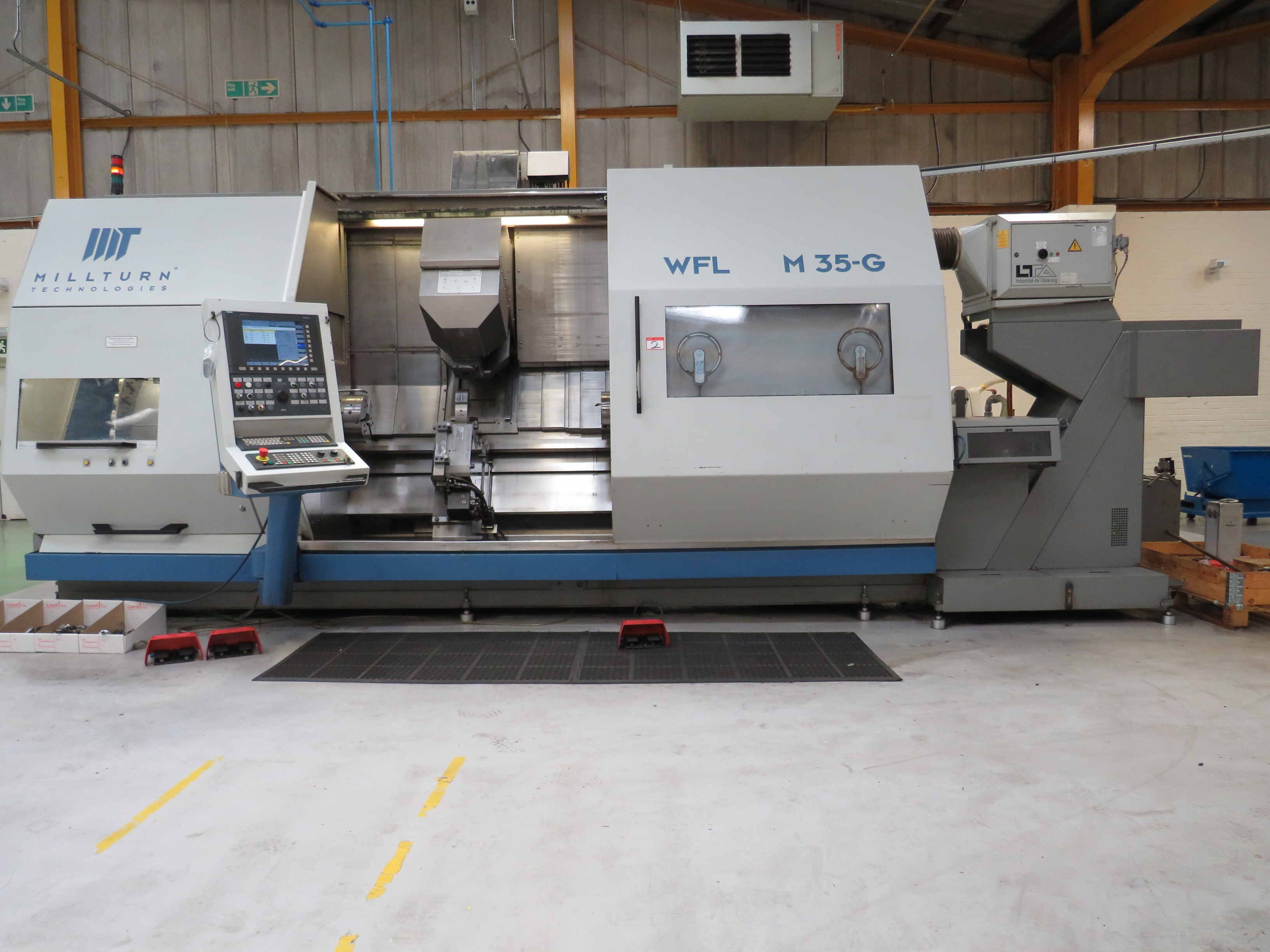

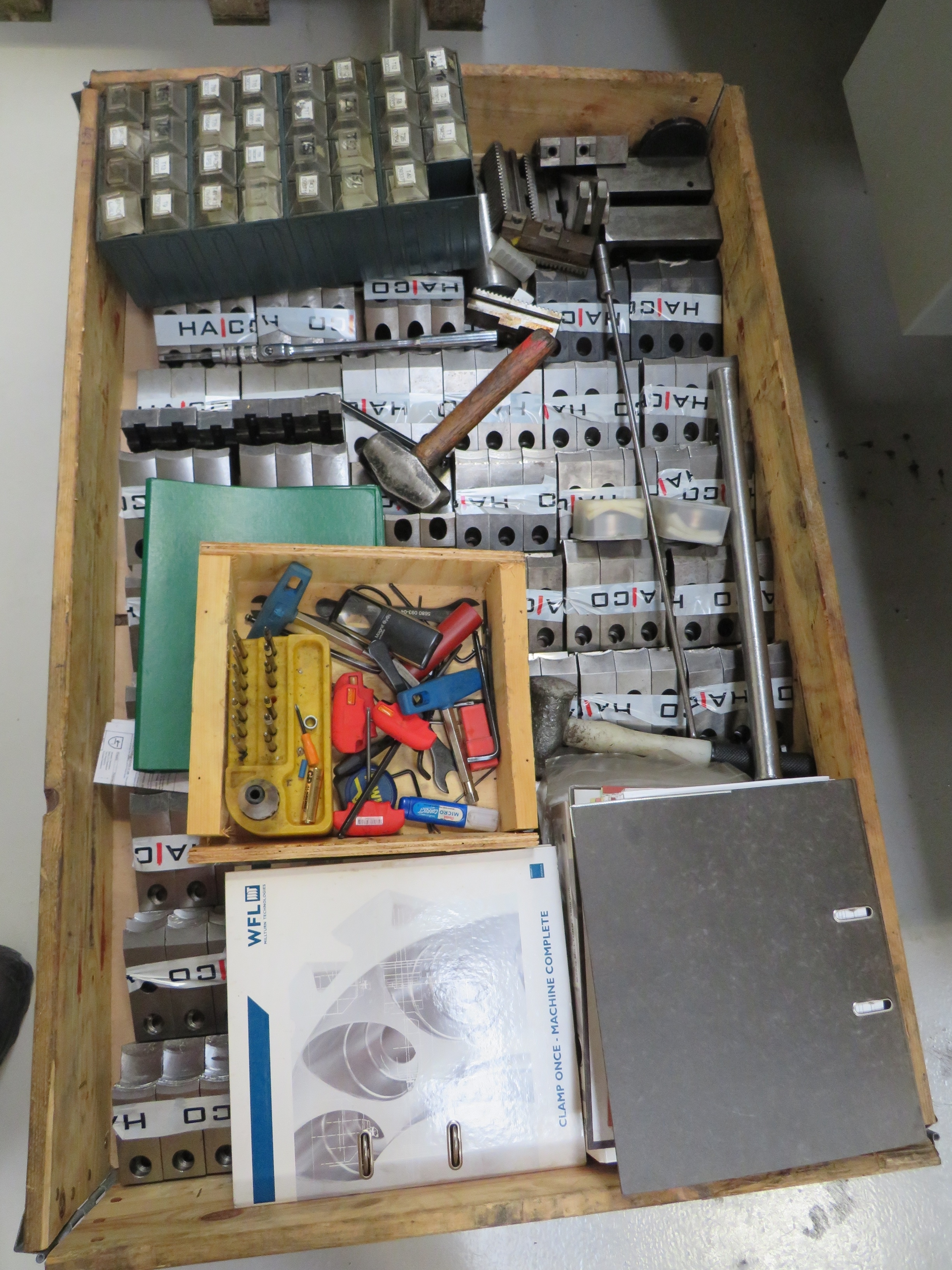

WFL M35-G 1800 7 Axis Millturn with CNC Siemens 840D SL Control, Maximum Swing Over Bed 600mm, Maximum Swing Over Saddle 520mm, Maximum Distance between Centres 1800mm, Maximum Turned Diameter 520mm, Maximum Turned Length 1500mm, B1 Rotation -110, +110 Degrees, C1 Rotation 360,000 Degrees, C2 Rotation 360,000 Degrees, X1 Traverse 600mm,Y1 Traverse 250mm, Z1 Traverse 1500mm, Z2 Traverse 1500mm, Z4 Traverse 1510mm, Rapids X1 30m/min, Y1 15m/min, Z1 & Z2 40m/min, B1 138 Degrees /Sec, Spindle Bore 77mm, Turning Speeds with Chuck 3300rpm, Turning Speed without Chuck 4000rpm, Milling Spindle Speeds 9000rpm, Complete with 325mm Headstock Chuck SMW Autoblock 3 Jaw Hydraulic, 325mm Tailstock Chuck SMW Autoblock 3 Jaw Hydraulic, Tooling Type Capto C6, Complete with 80 Position ATC, Marposs WR1 SHW 3 Point Hydraulic Steady, Model SR-5-ZSW, 45 – 310mm Capacity, Manuals, Swarf Conveyor, Swarf Skip, High Pressure Coolant, Paper Filtration Unit, Electrics 400v, 3ph, 50 Hz, Spindle Motor 29/33kw, Sub Spindle Motor 29/33kw, Milling Spindle Motor 15/20kw, Approximate Dimensions 7500 x 3700 x 2950mm, Approximate Weight 20,000kg. S/No. 34150901 (2006)

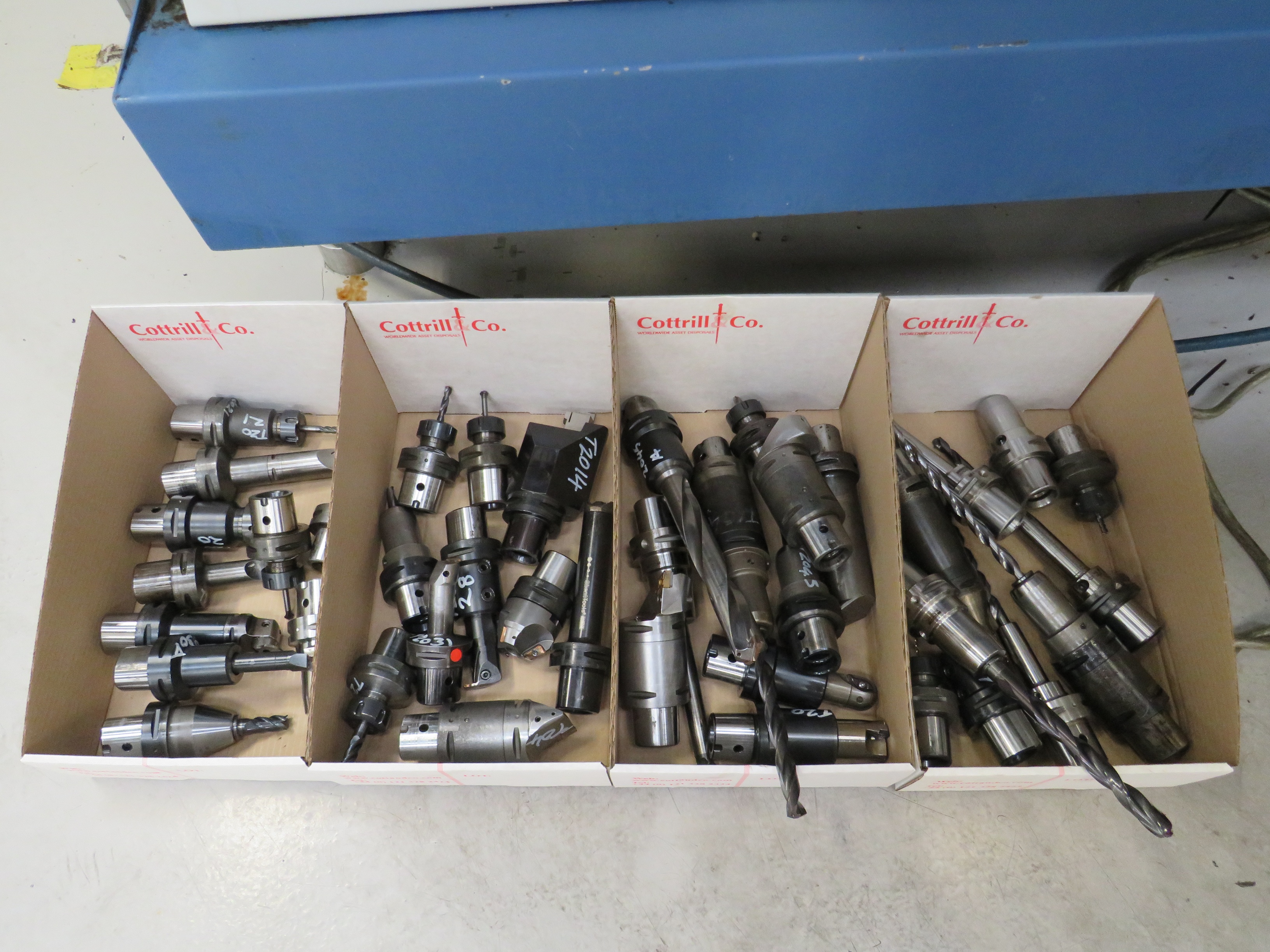

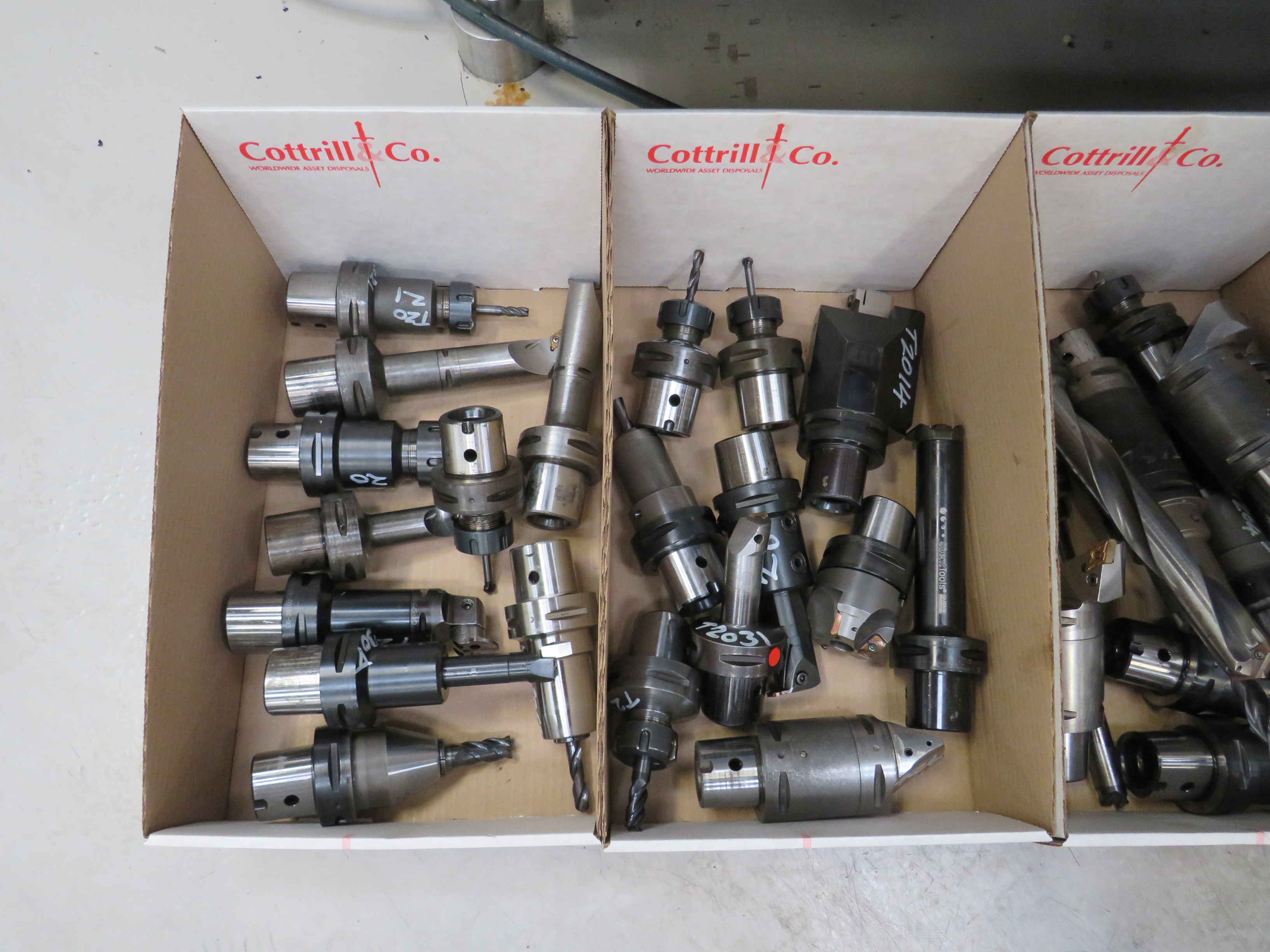

Please Note: This lot is located in Birmingham. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
