Lot 6: SMS/MEER/ Cold Pilger Rolling Mill
Back to auction
Item description

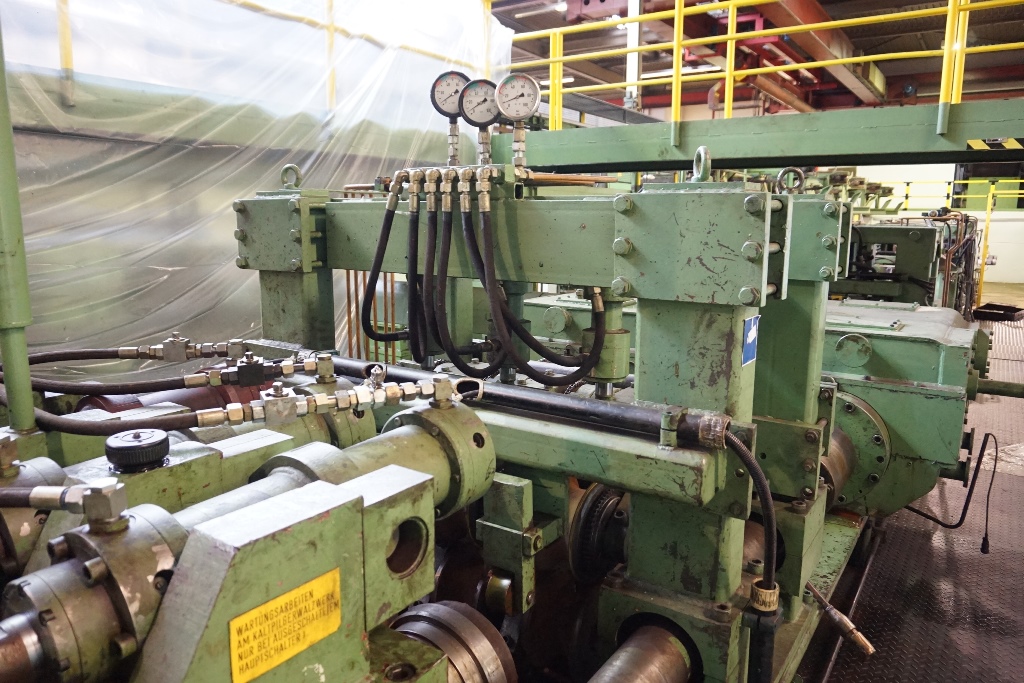

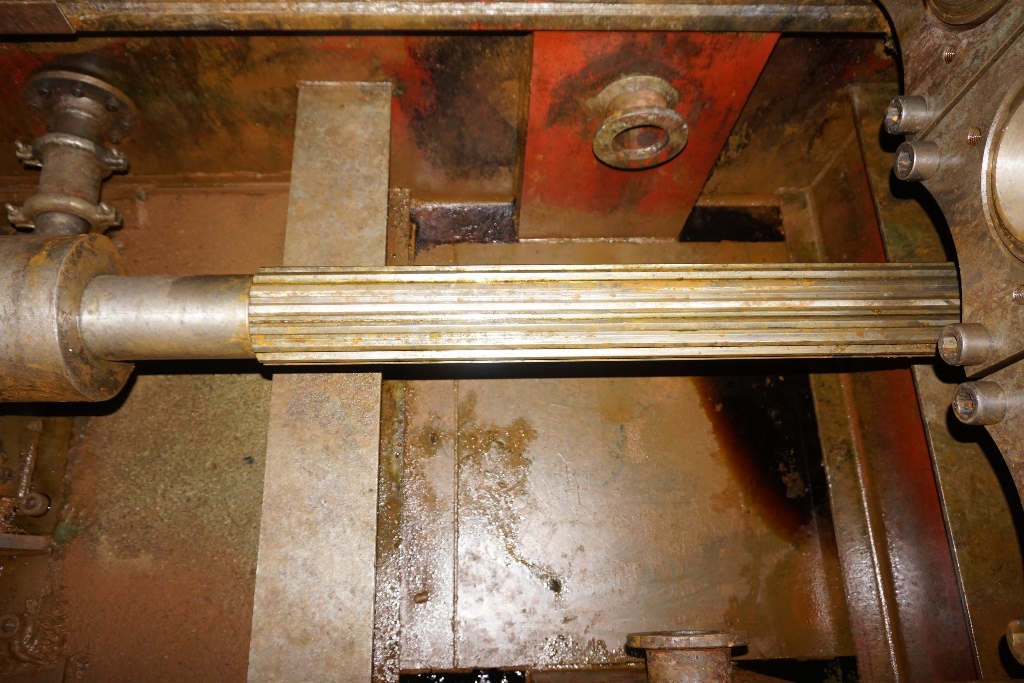

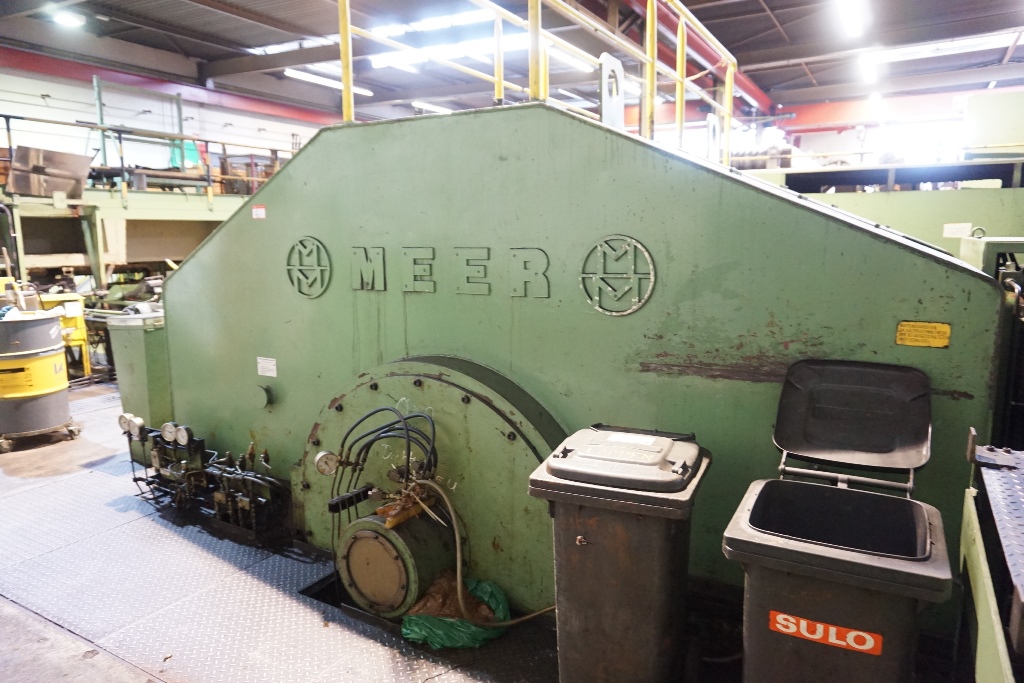

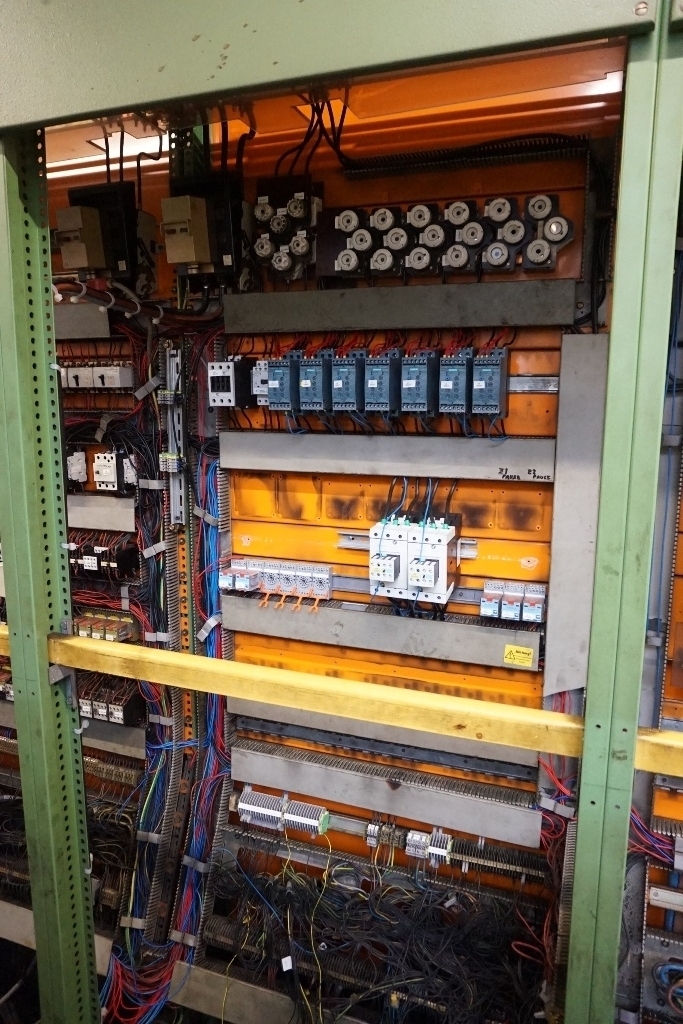

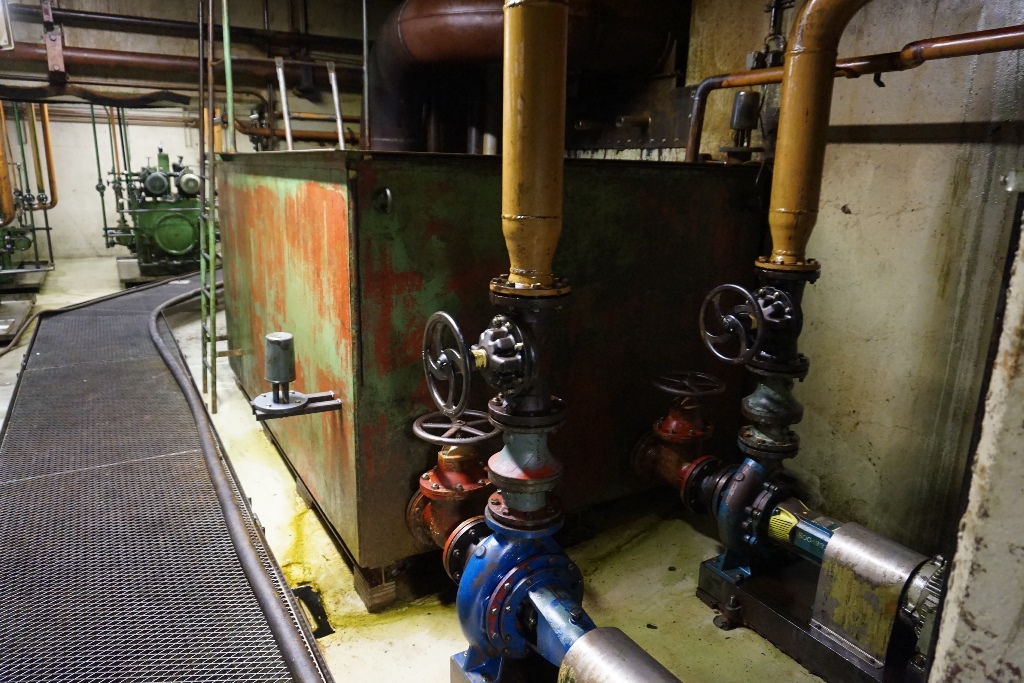

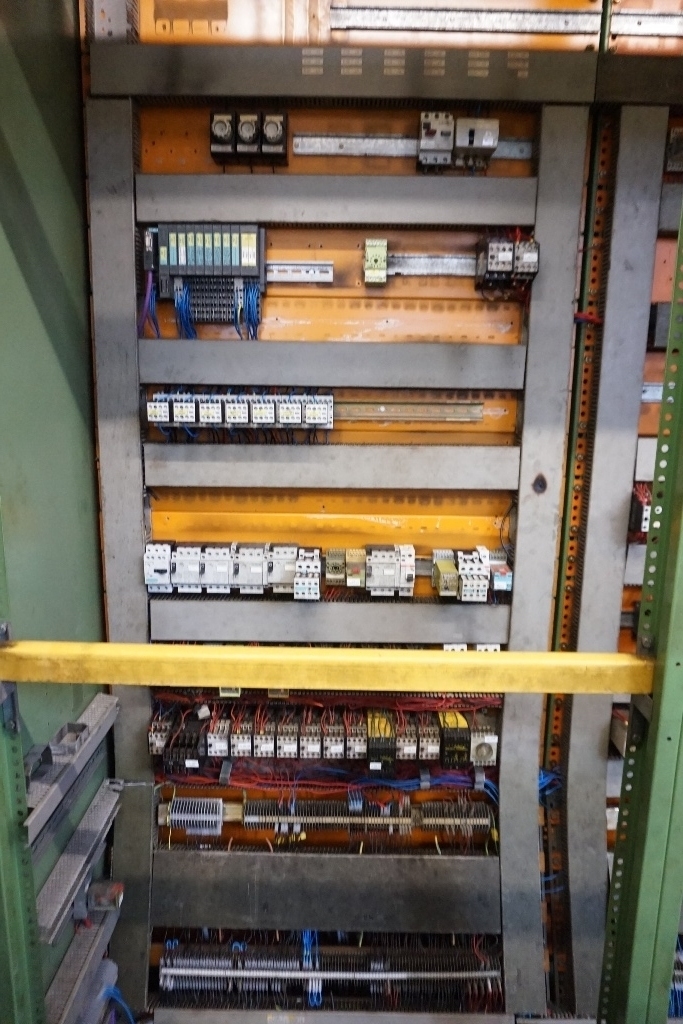

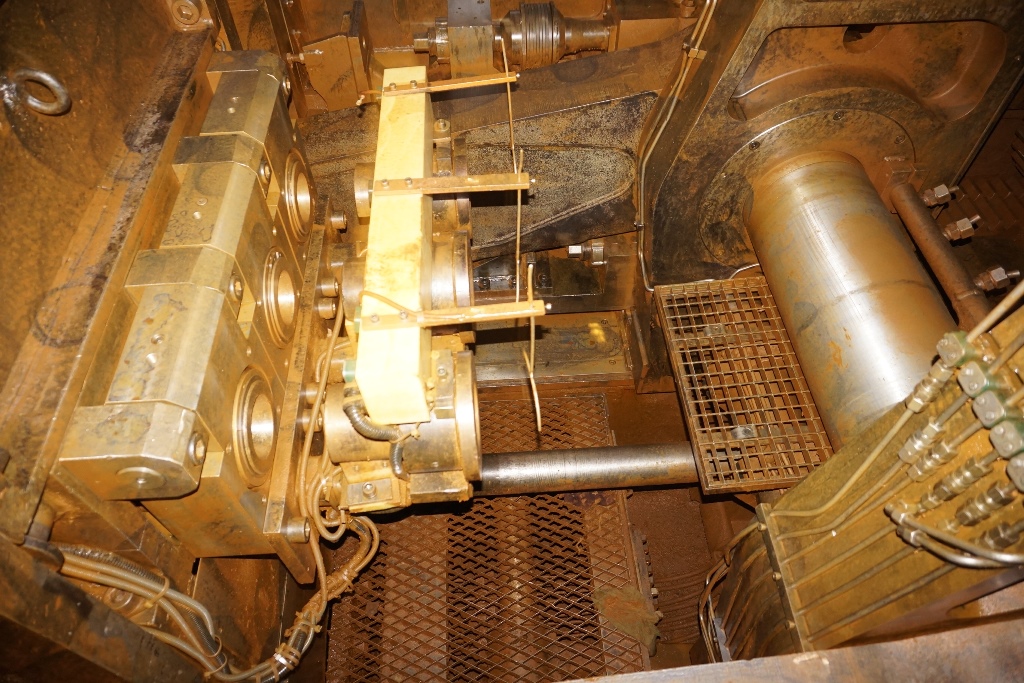

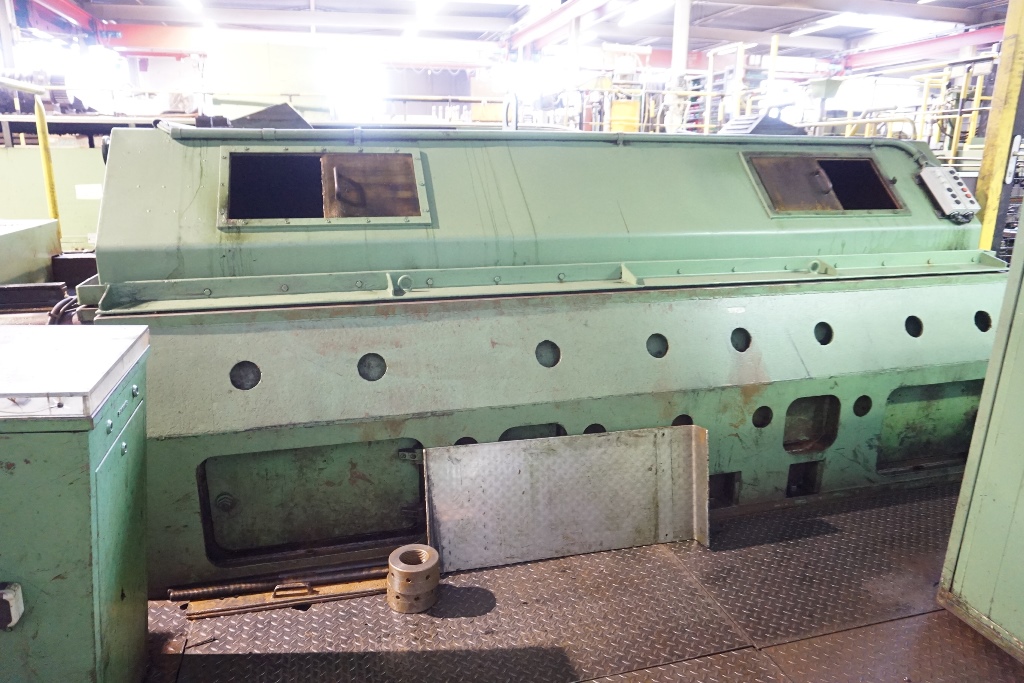

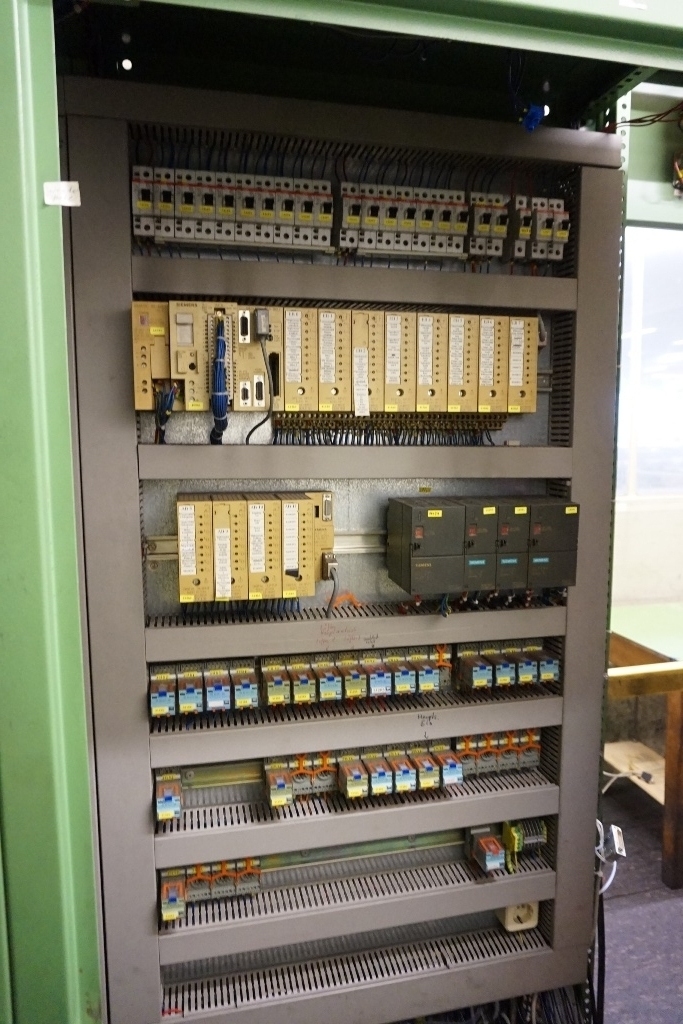

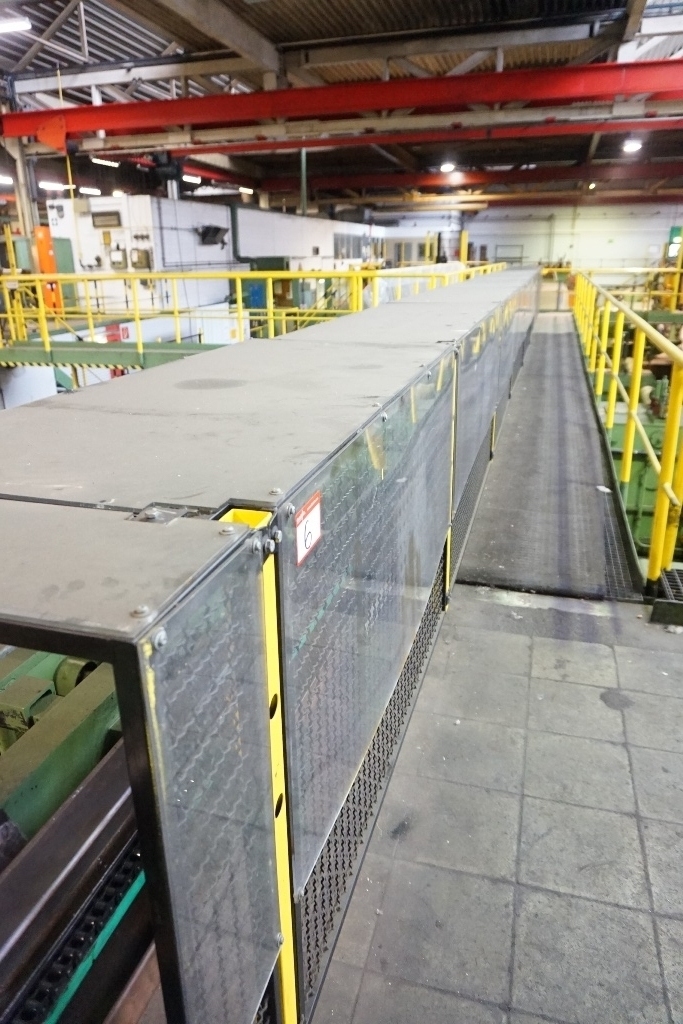

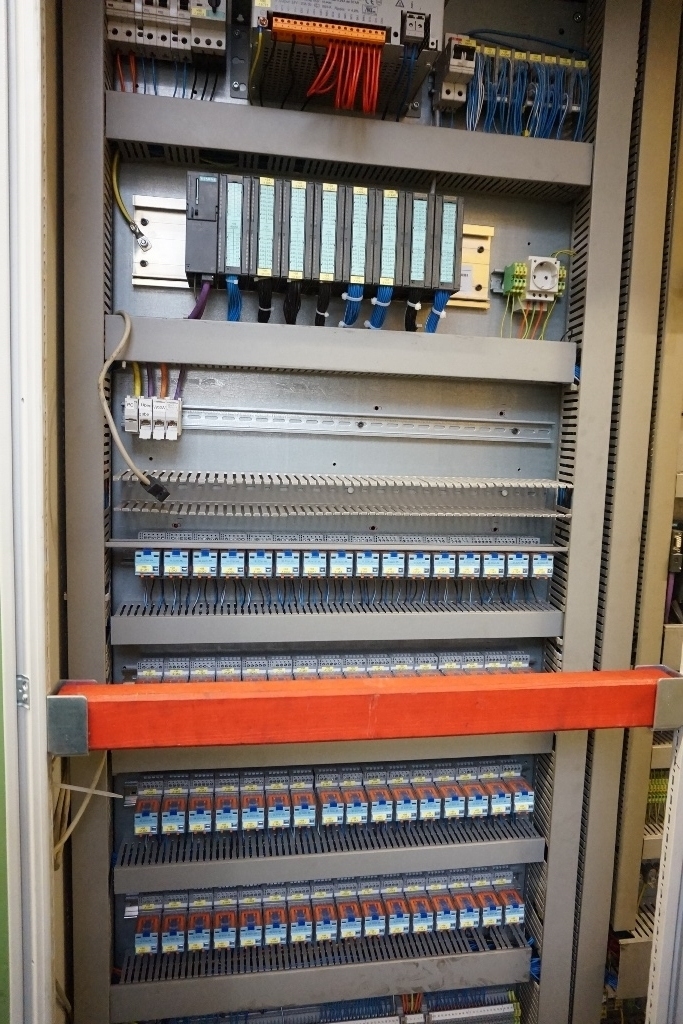

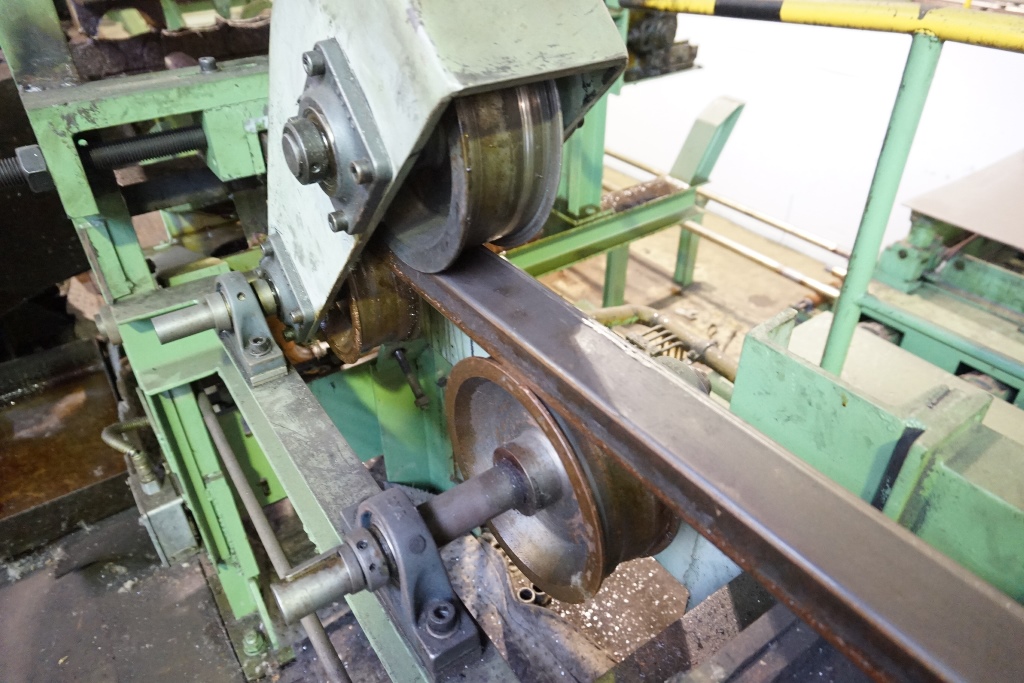

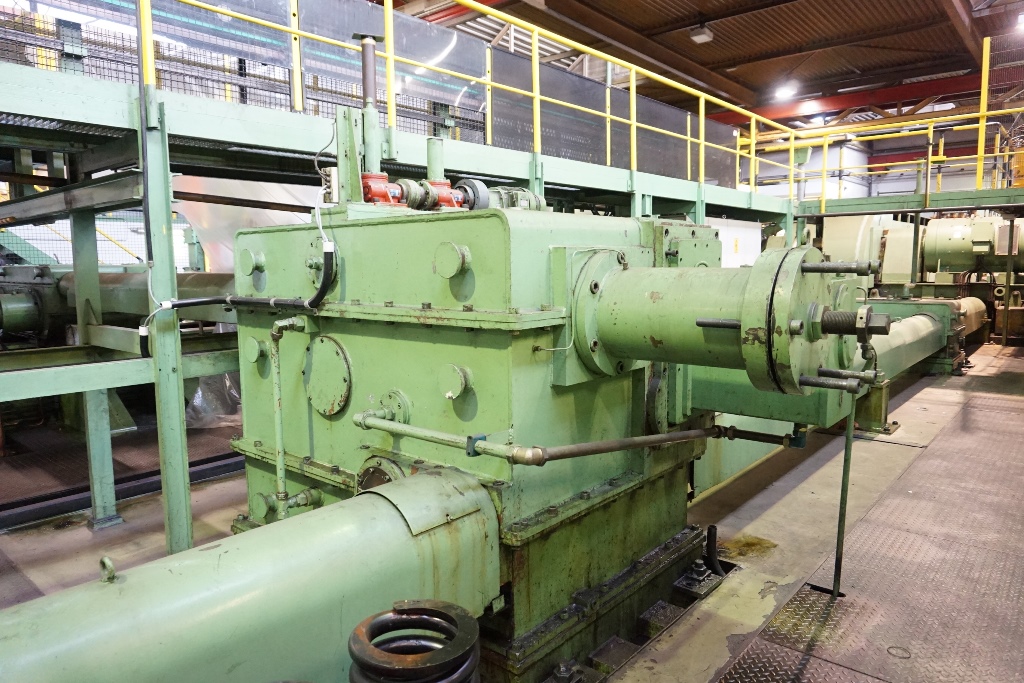

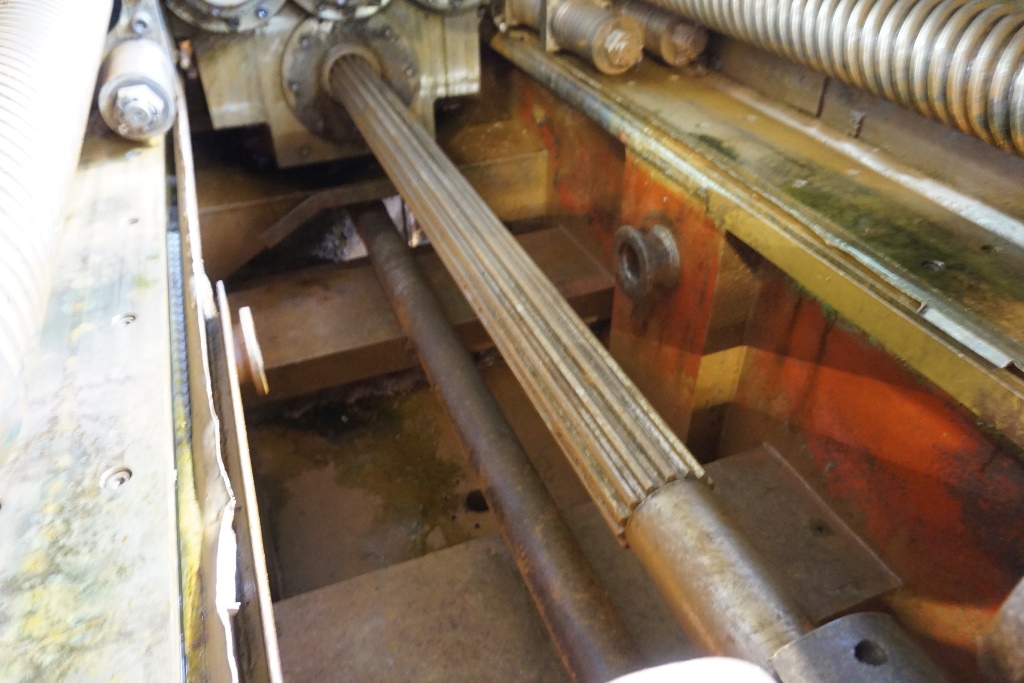

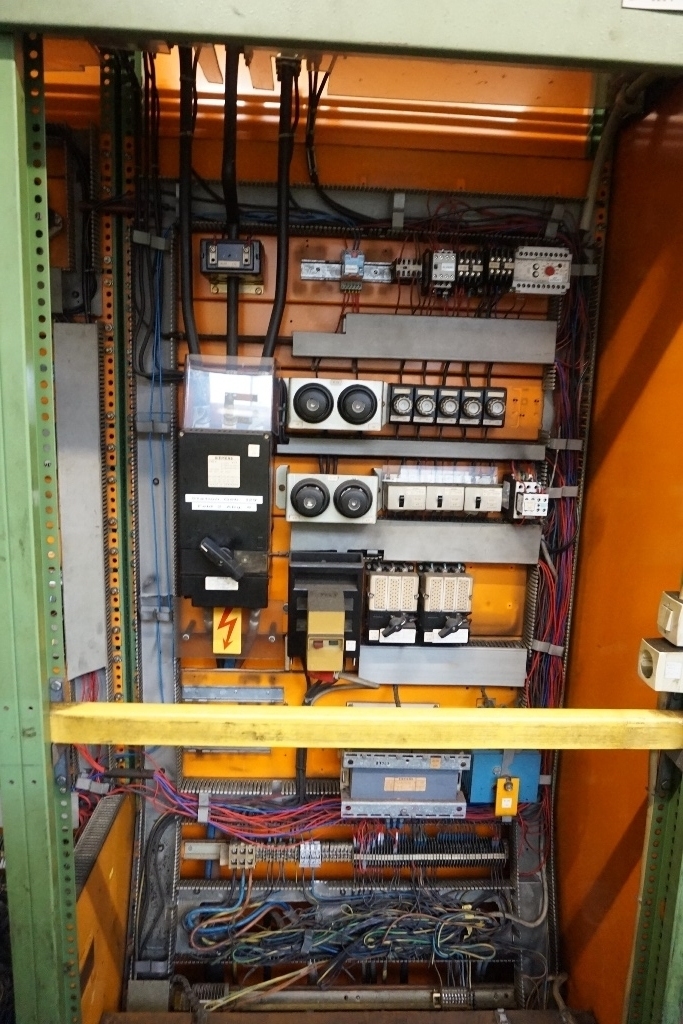

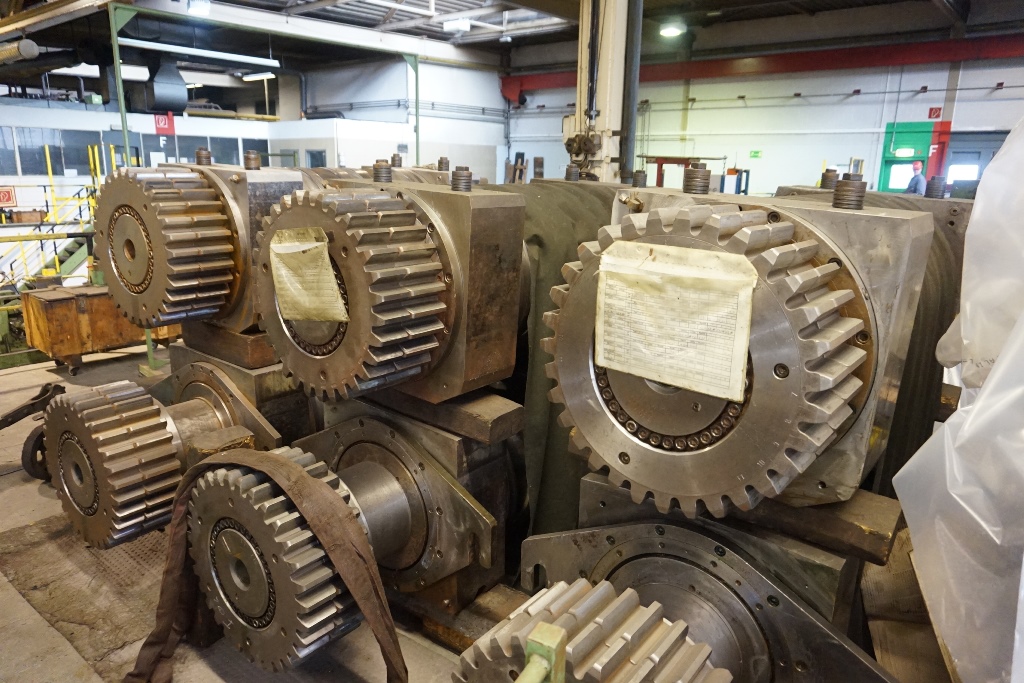

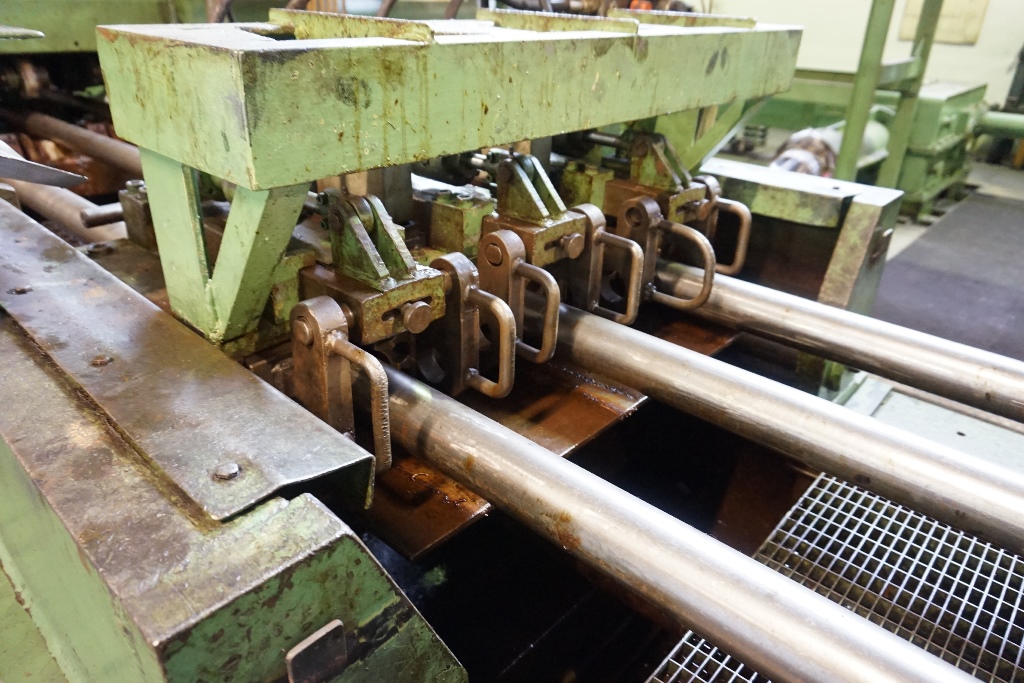

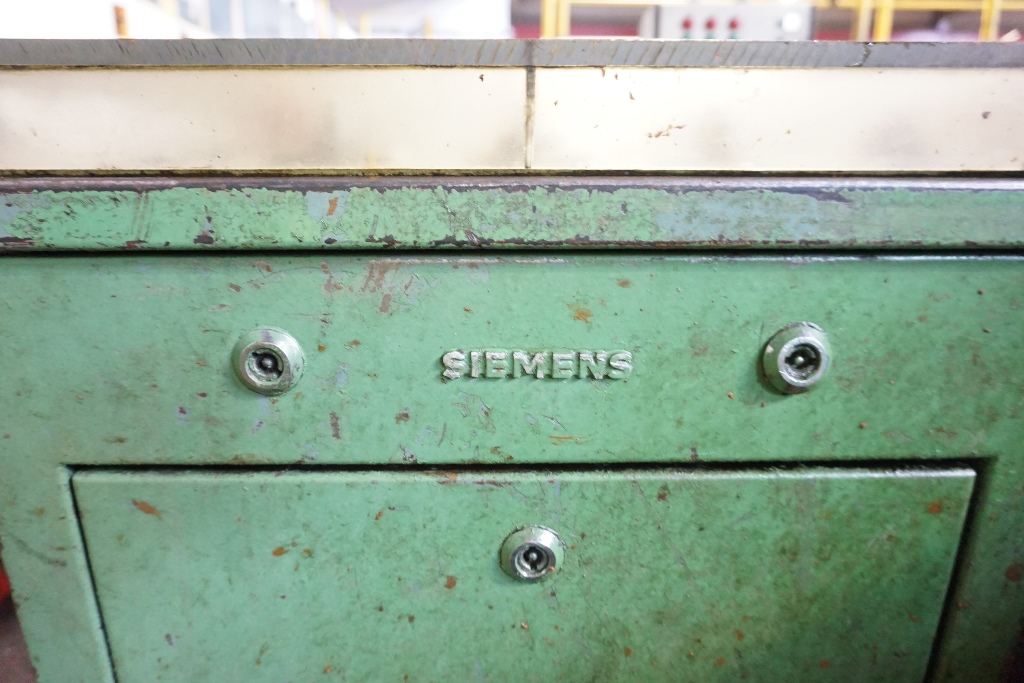

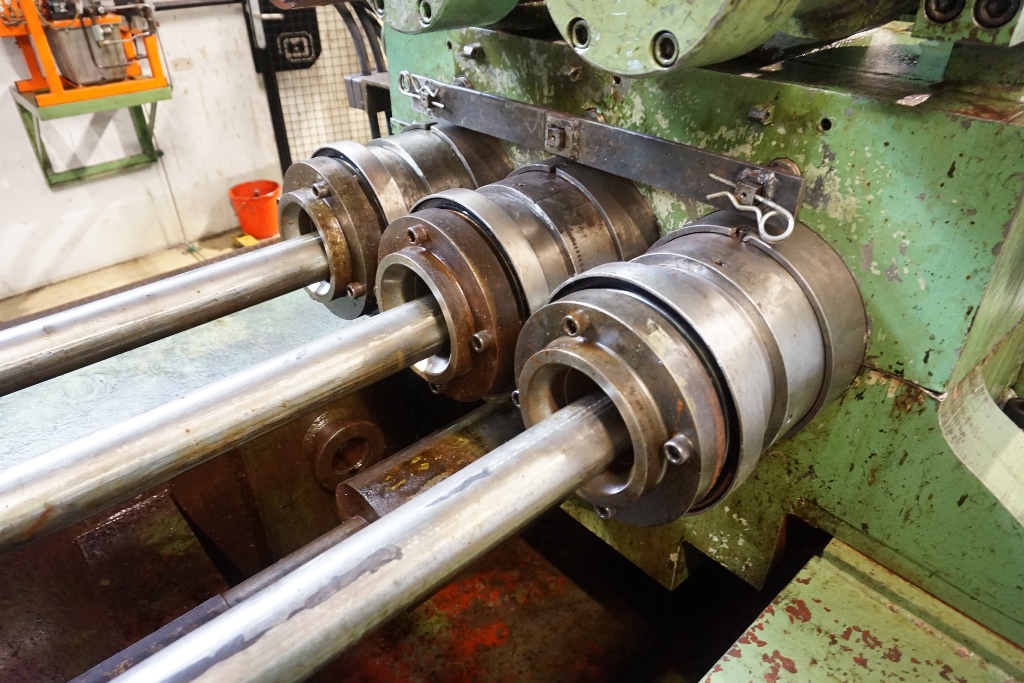

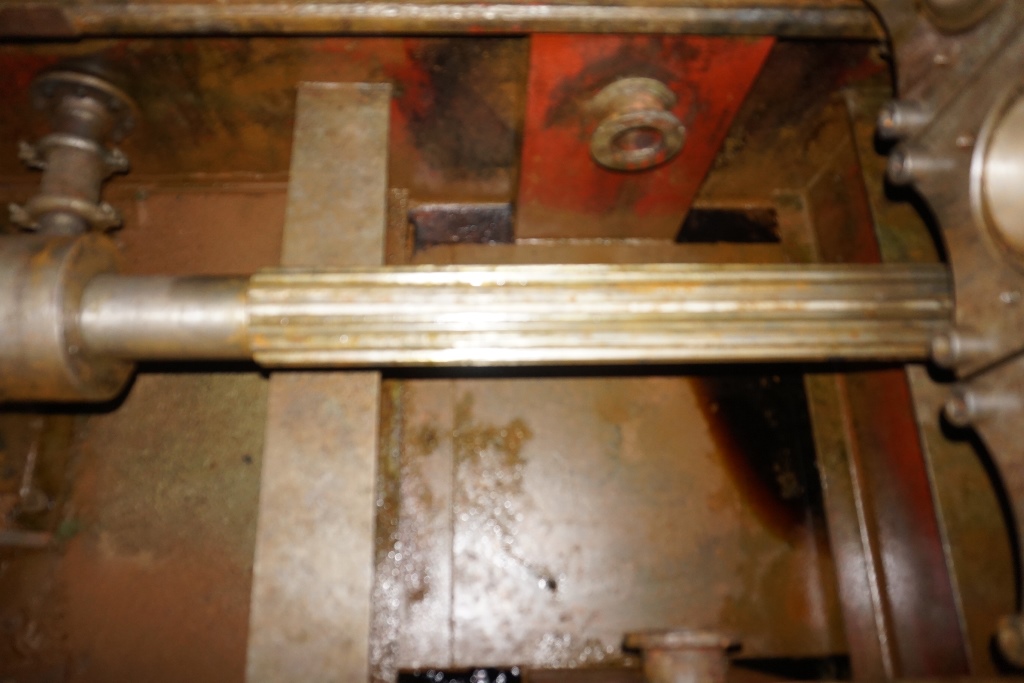

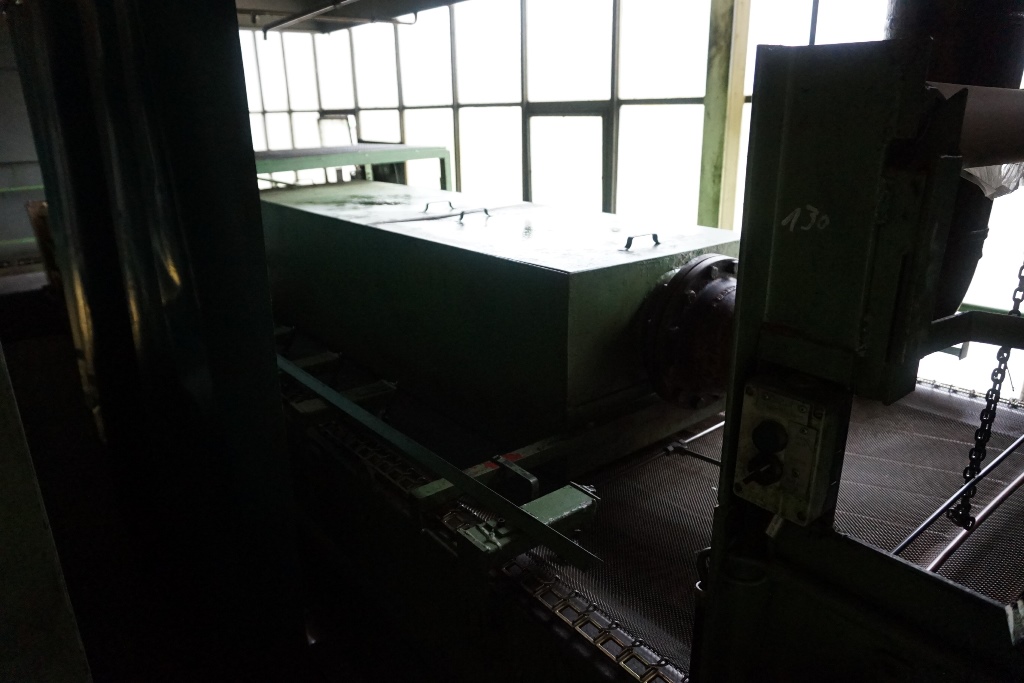

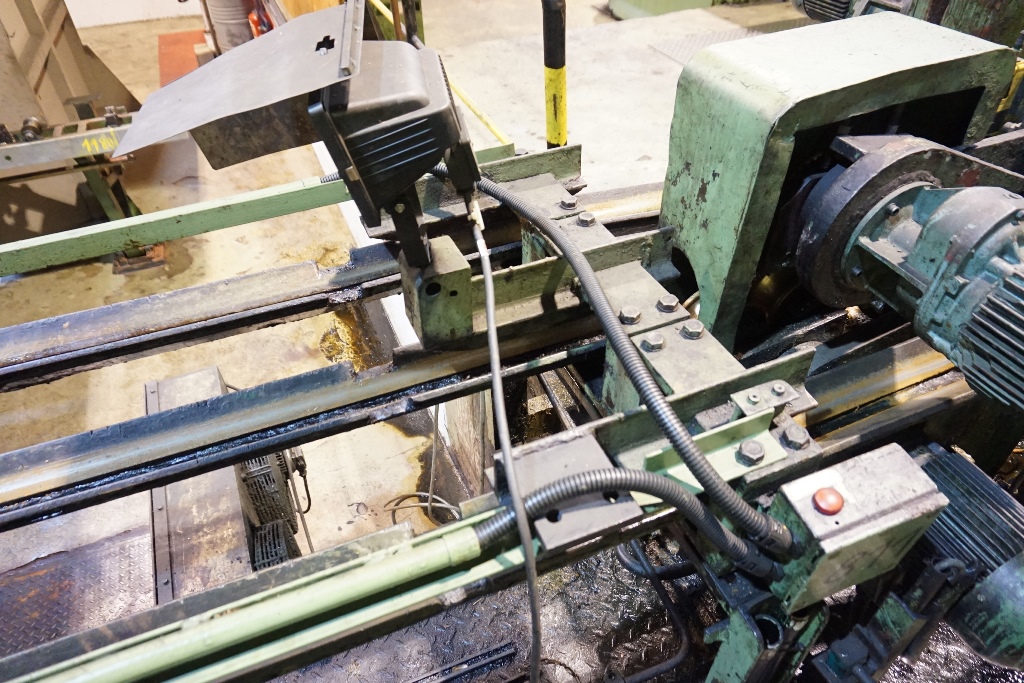

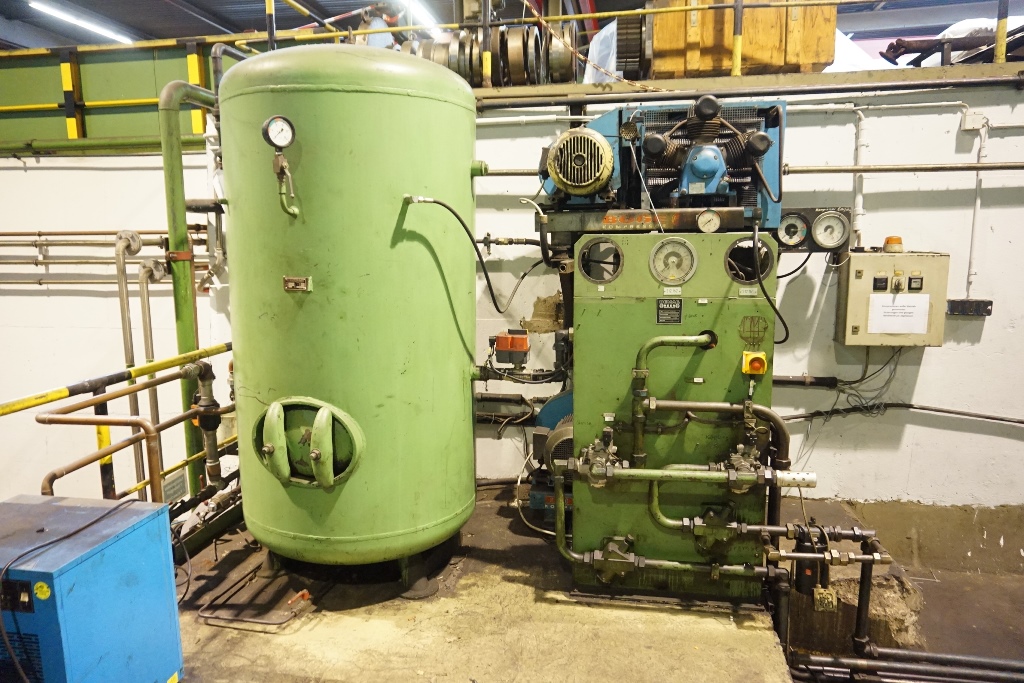

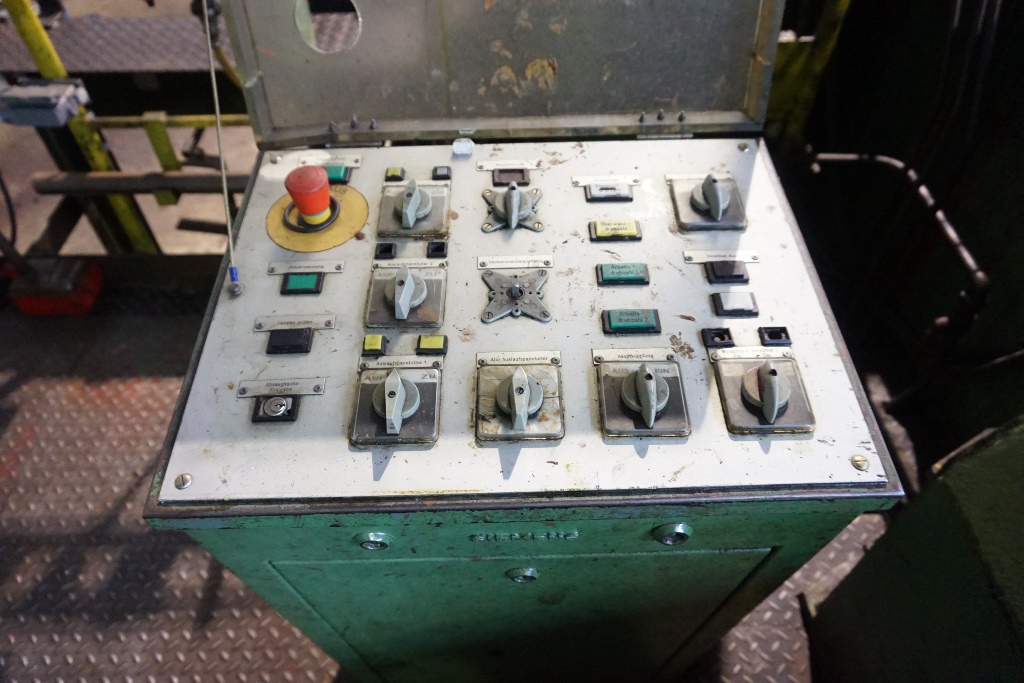

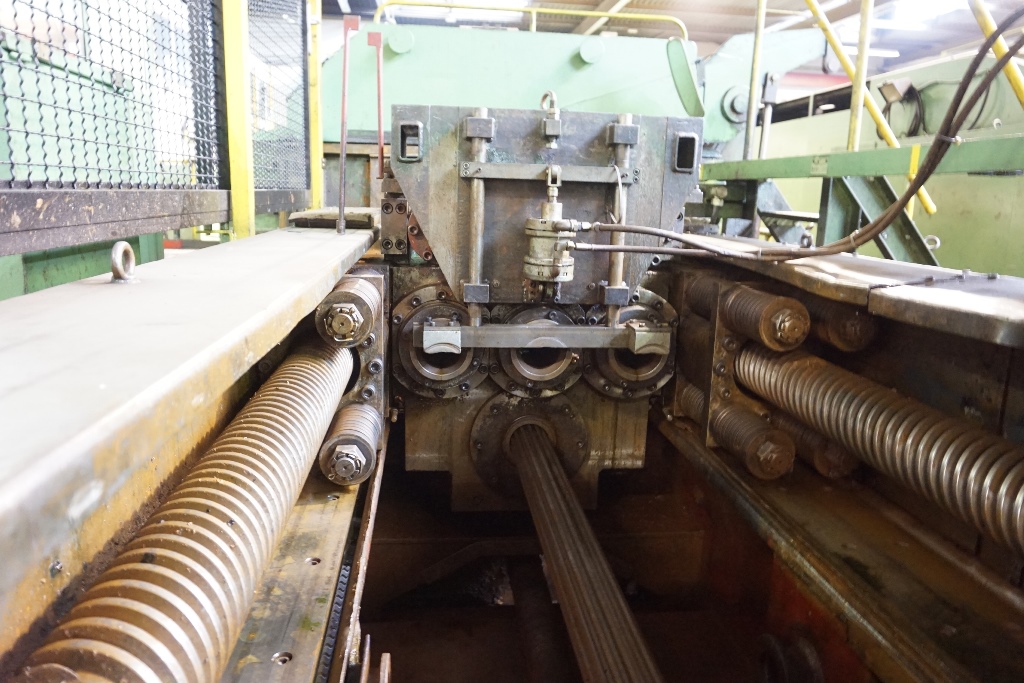

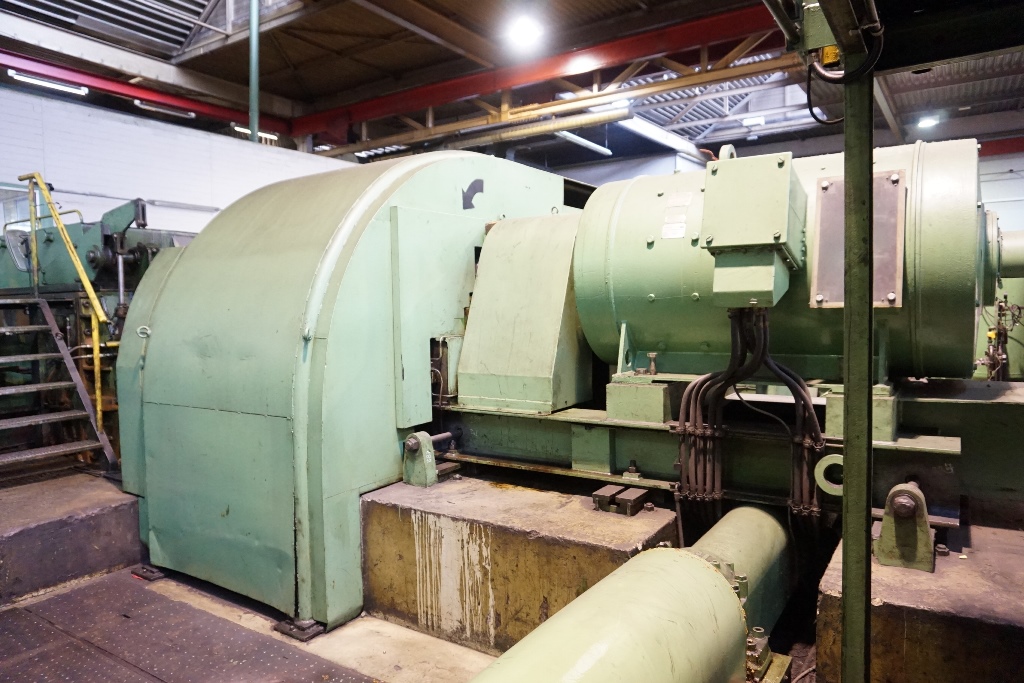

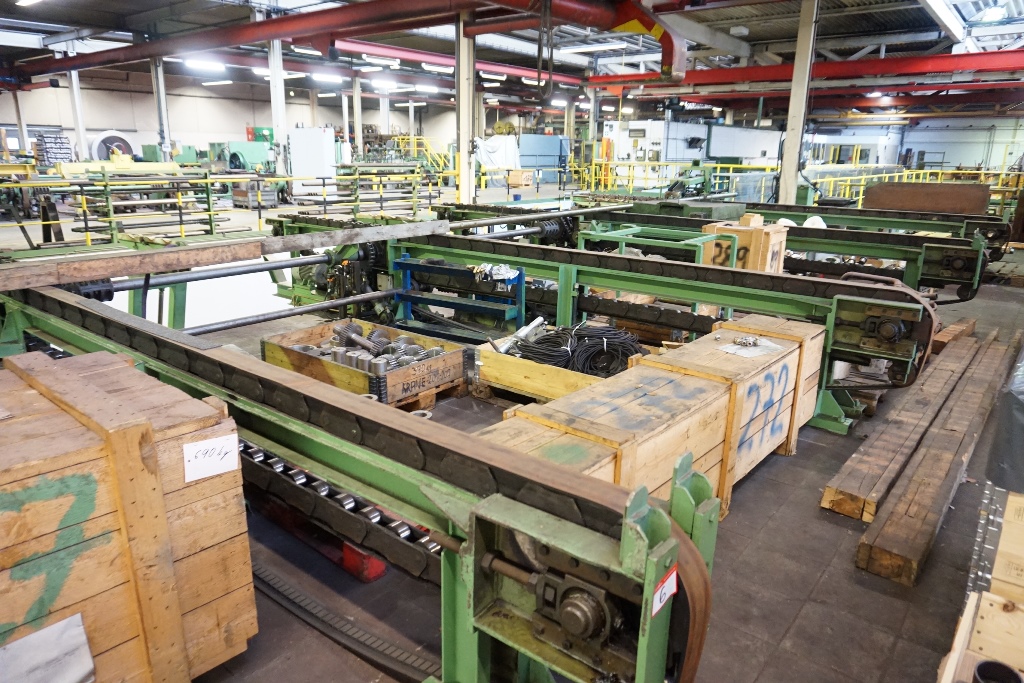

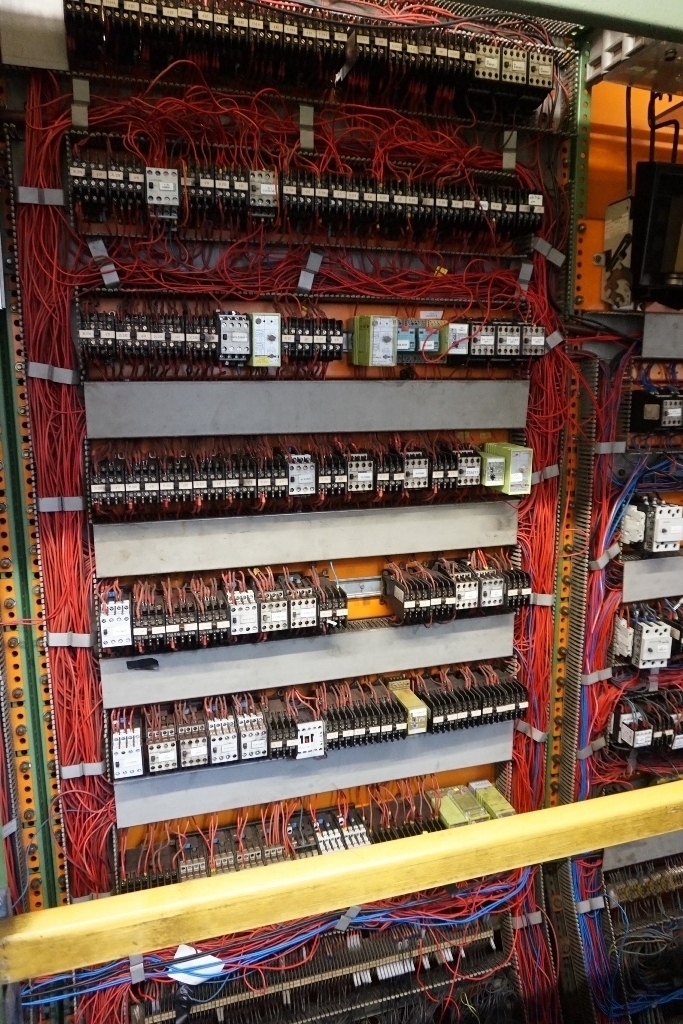

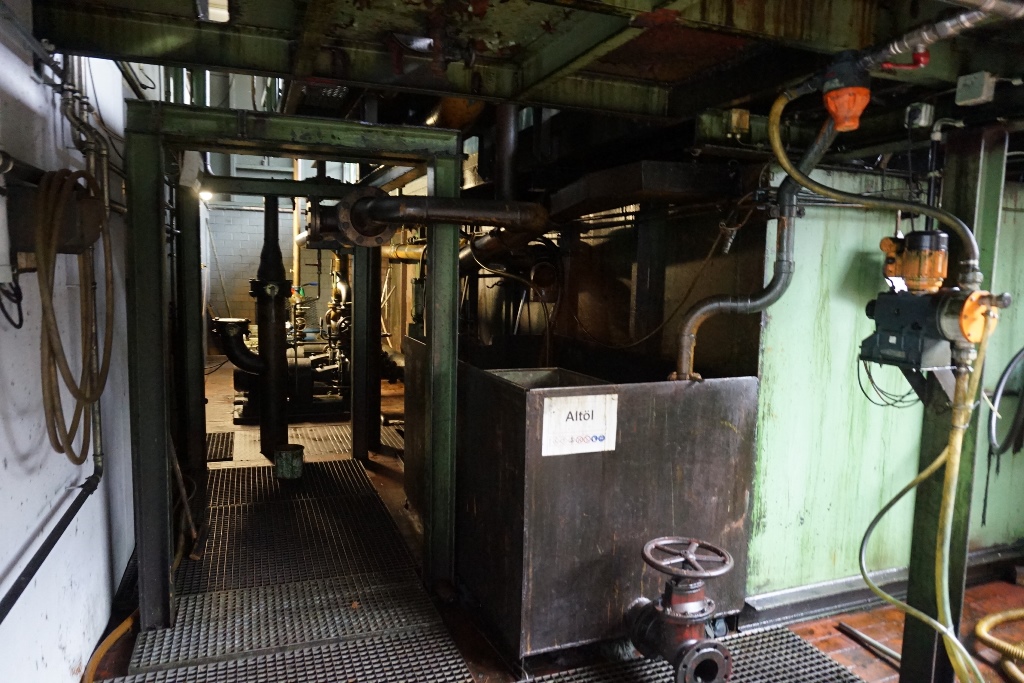

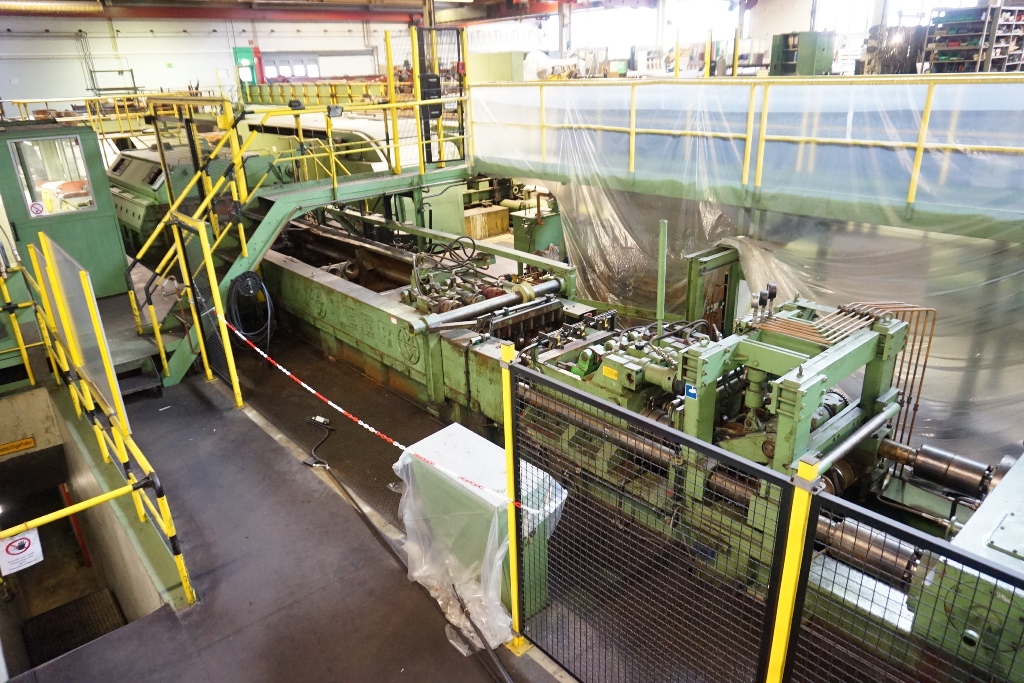

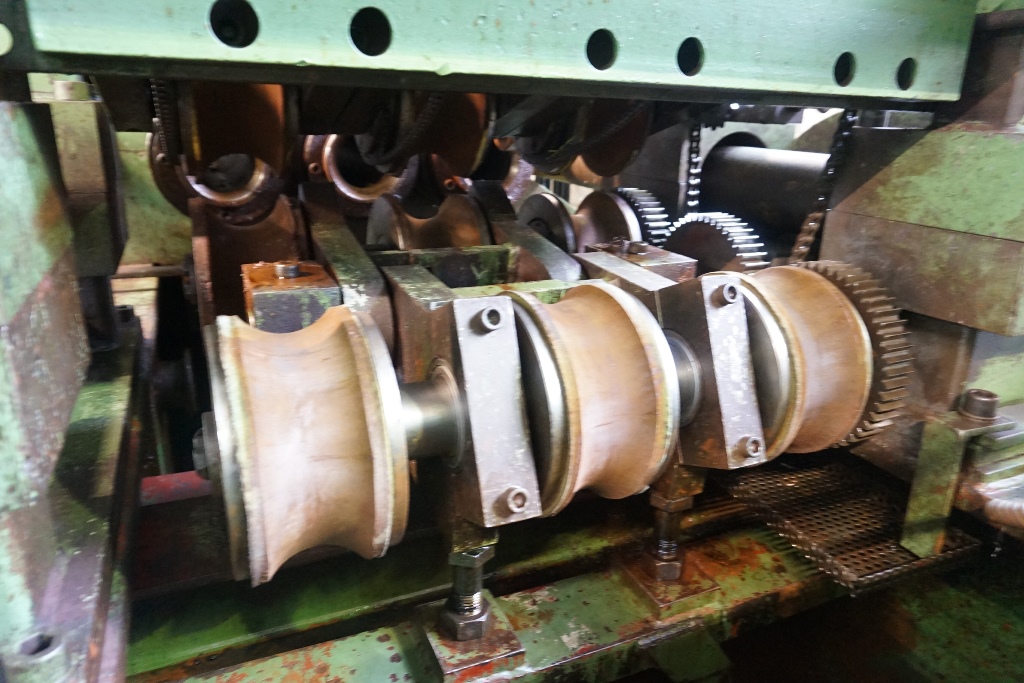

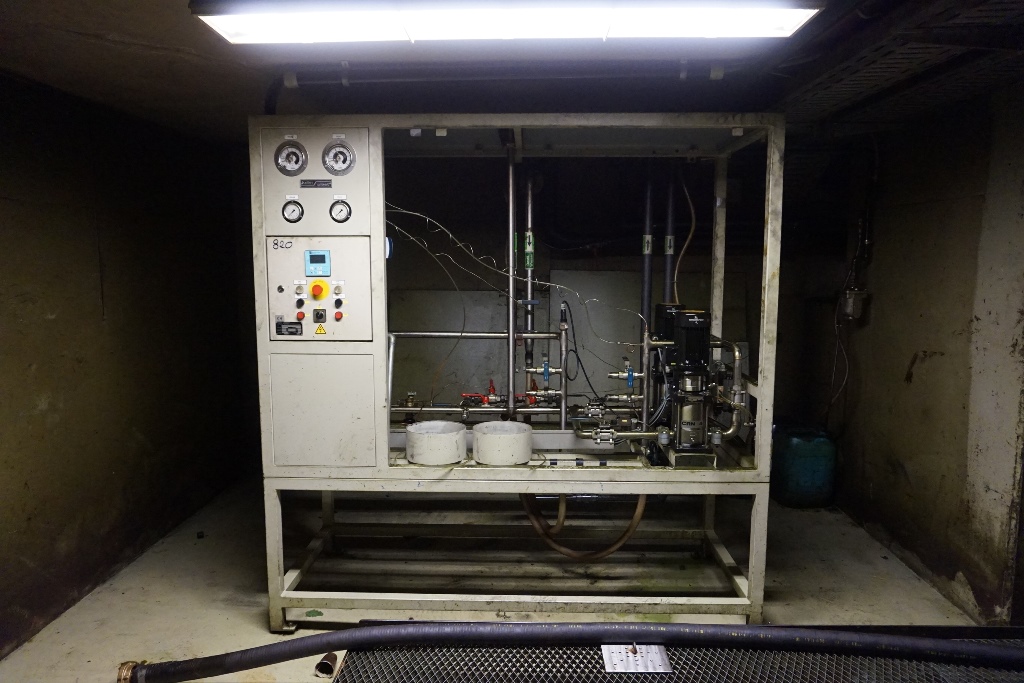

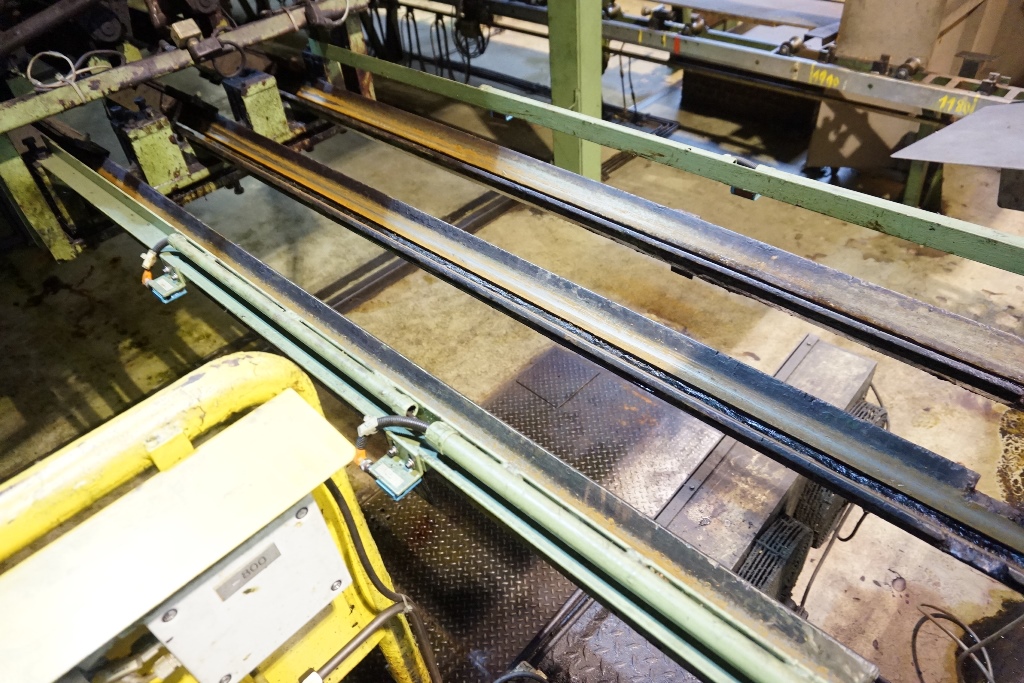

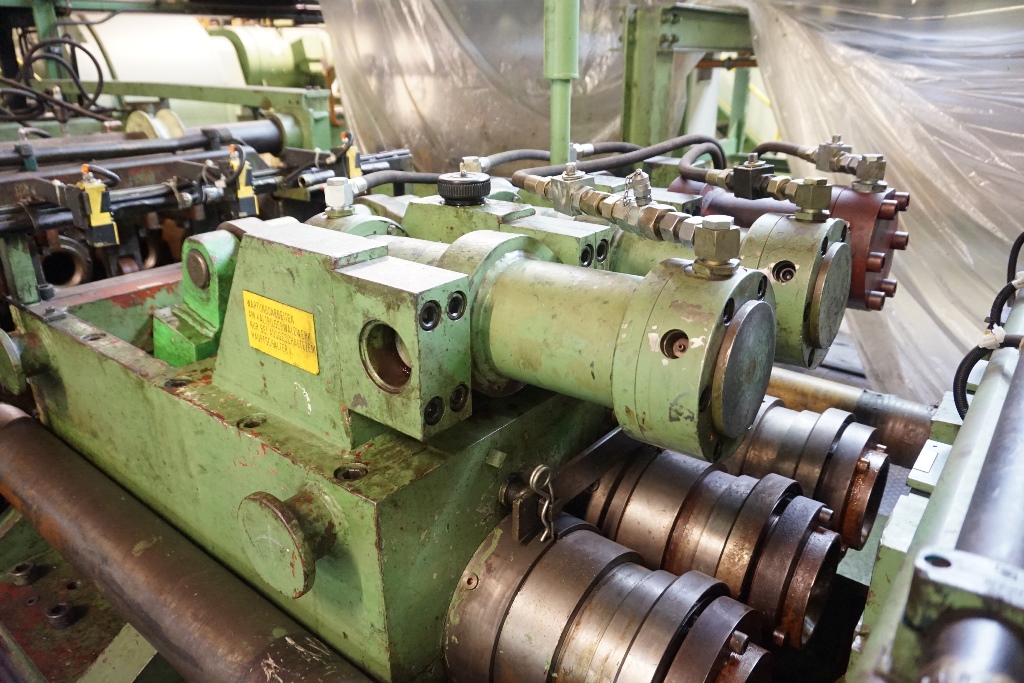

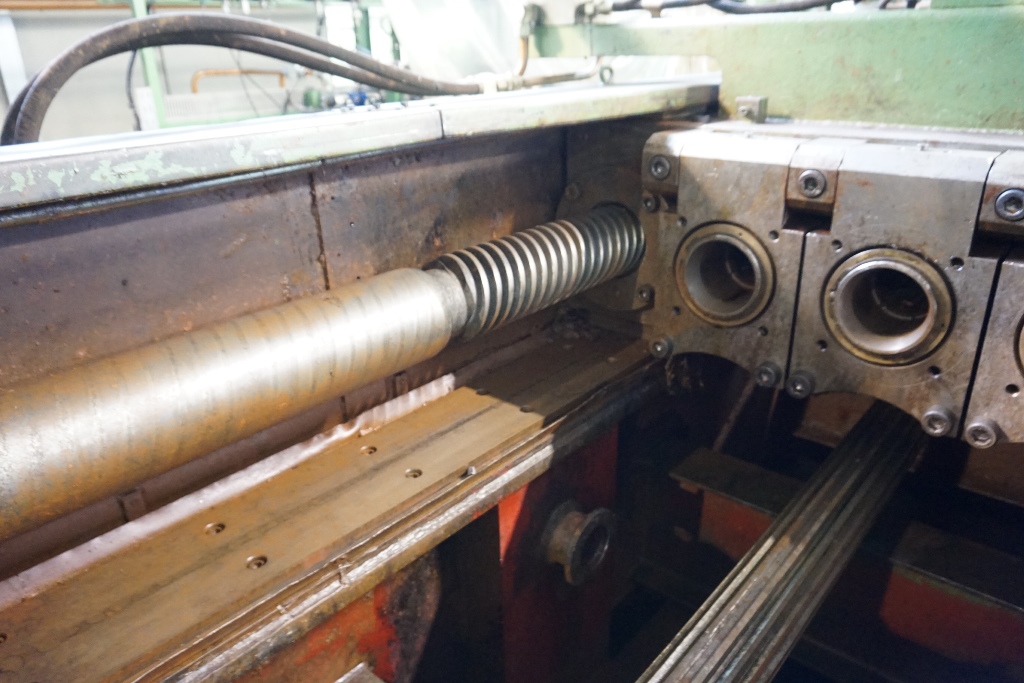

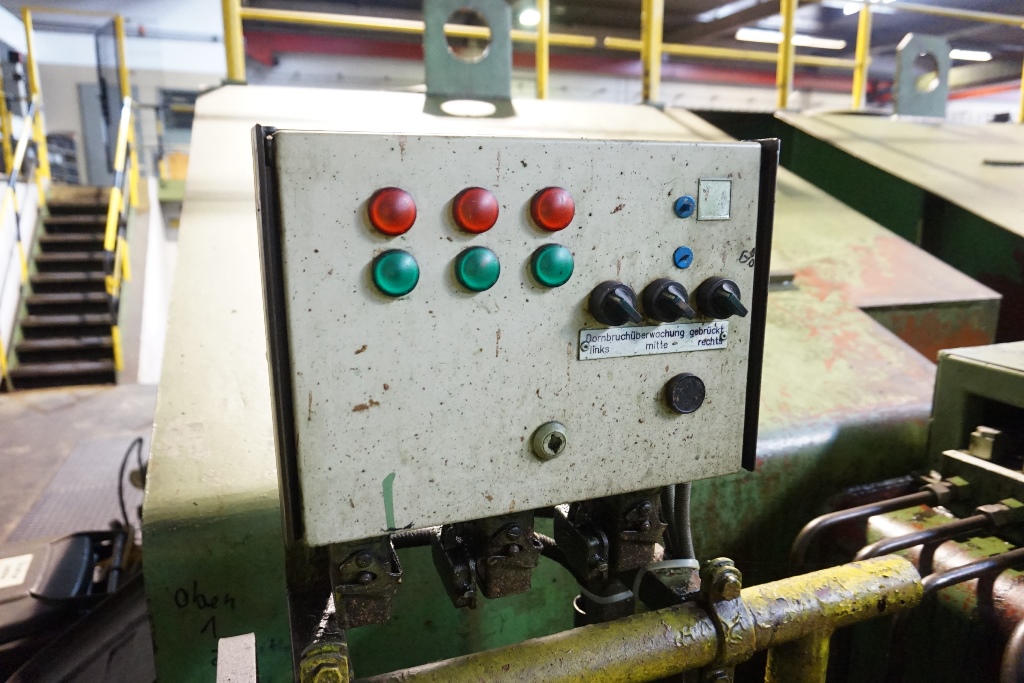

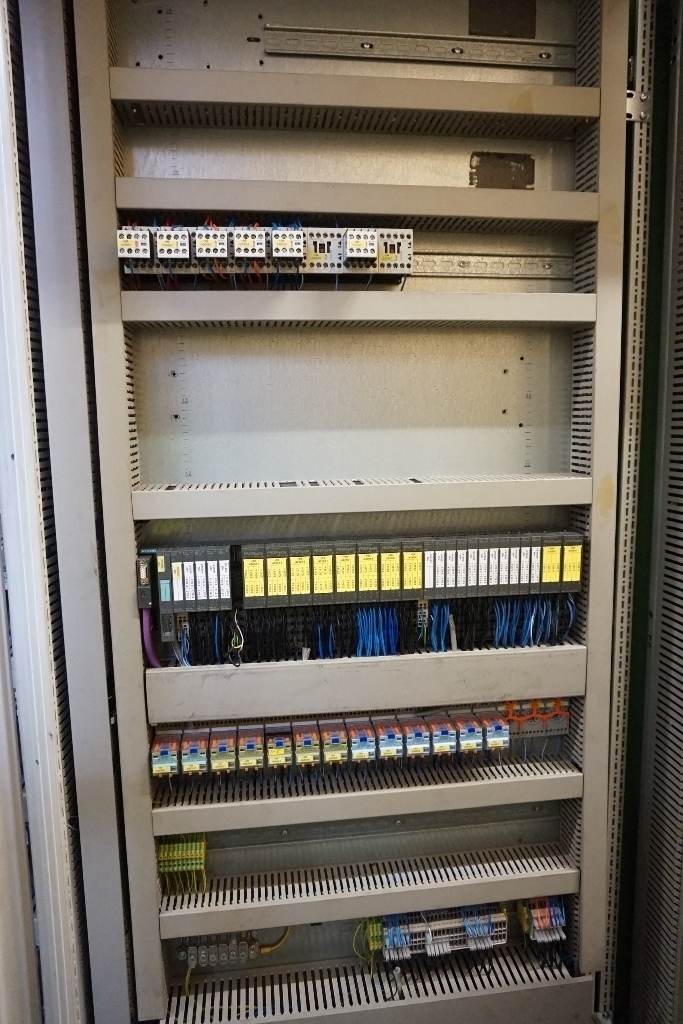

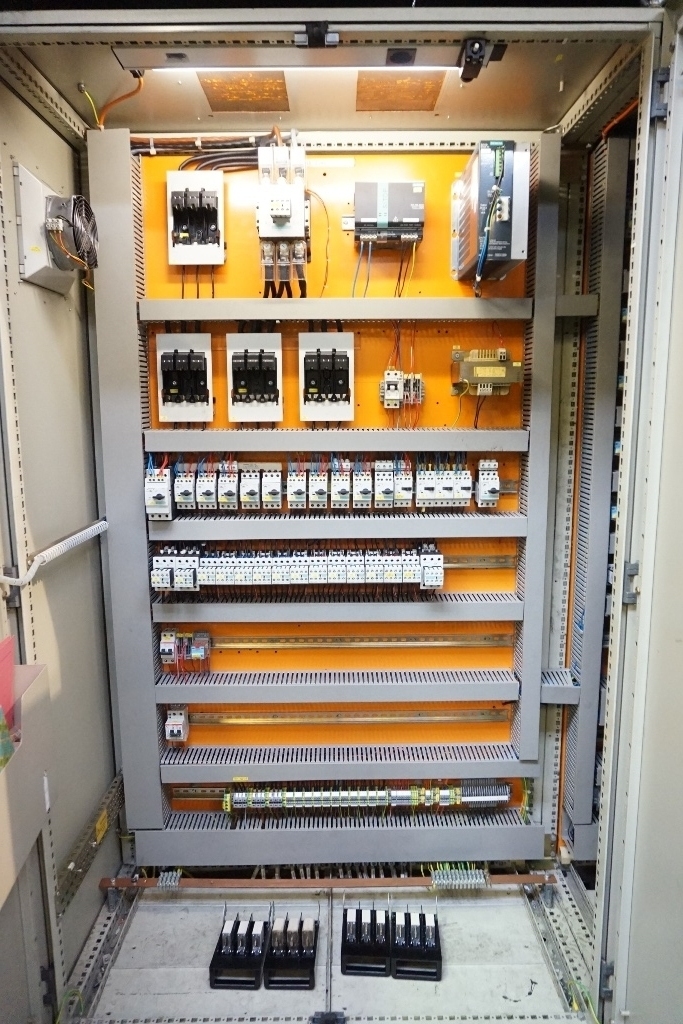

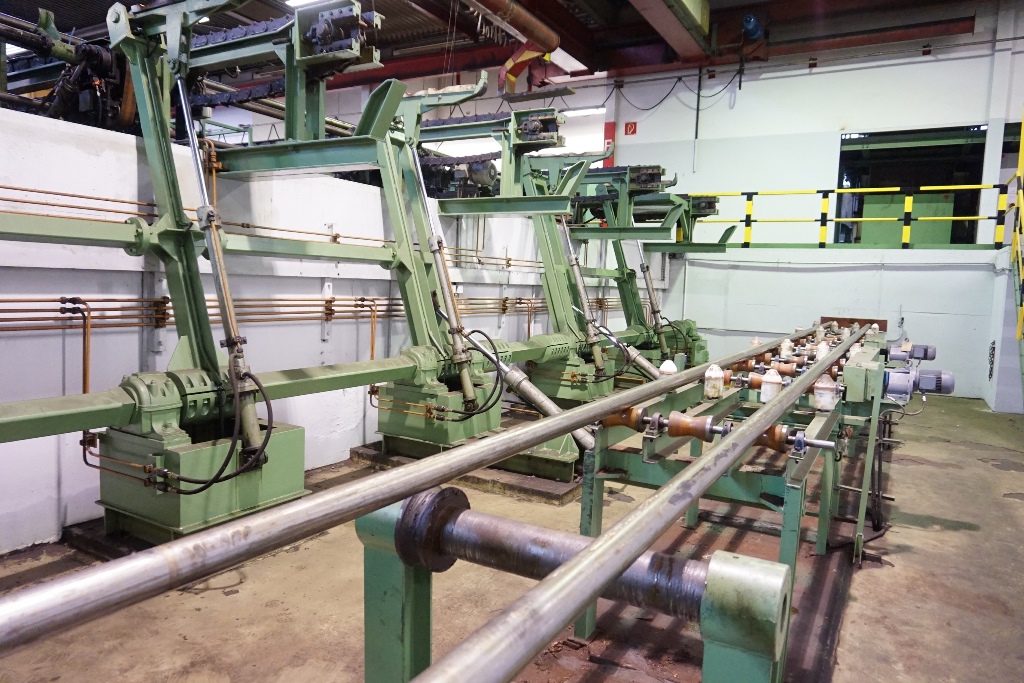

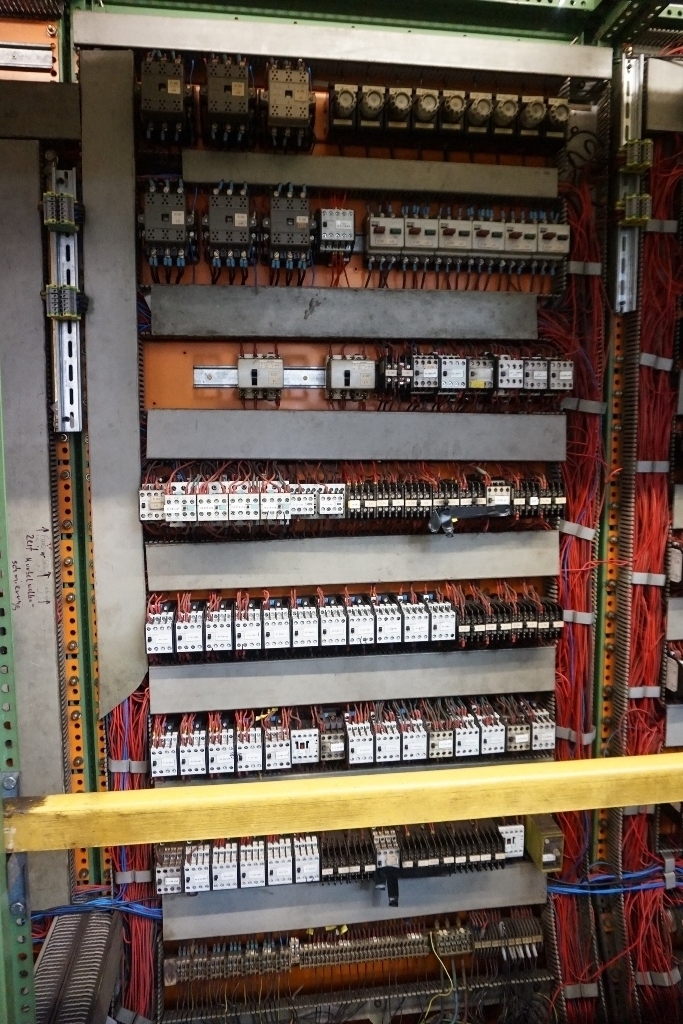

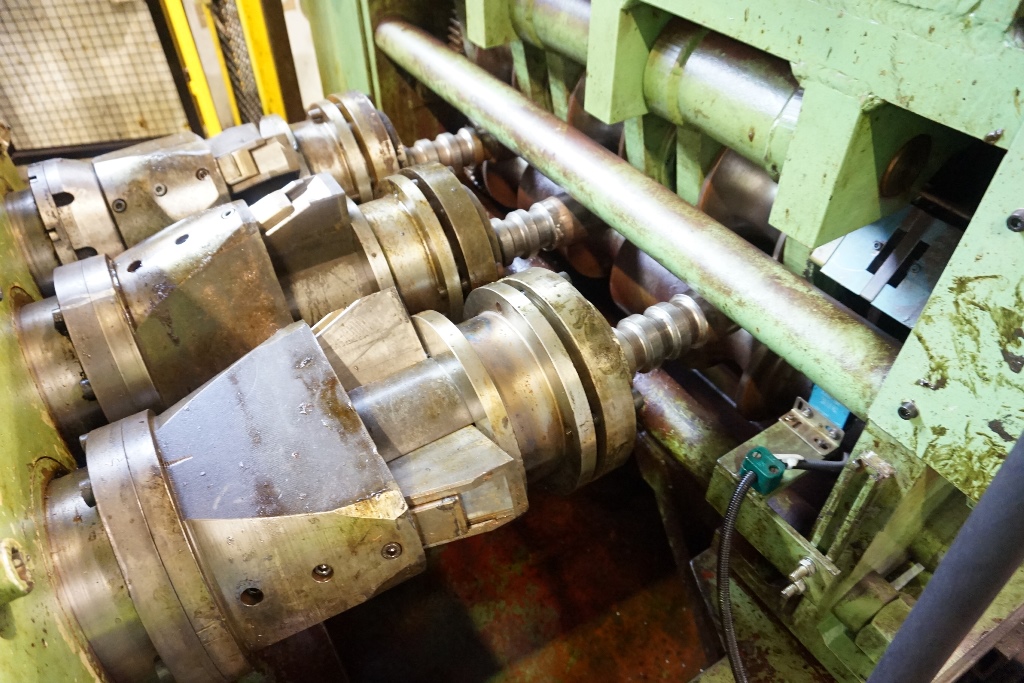

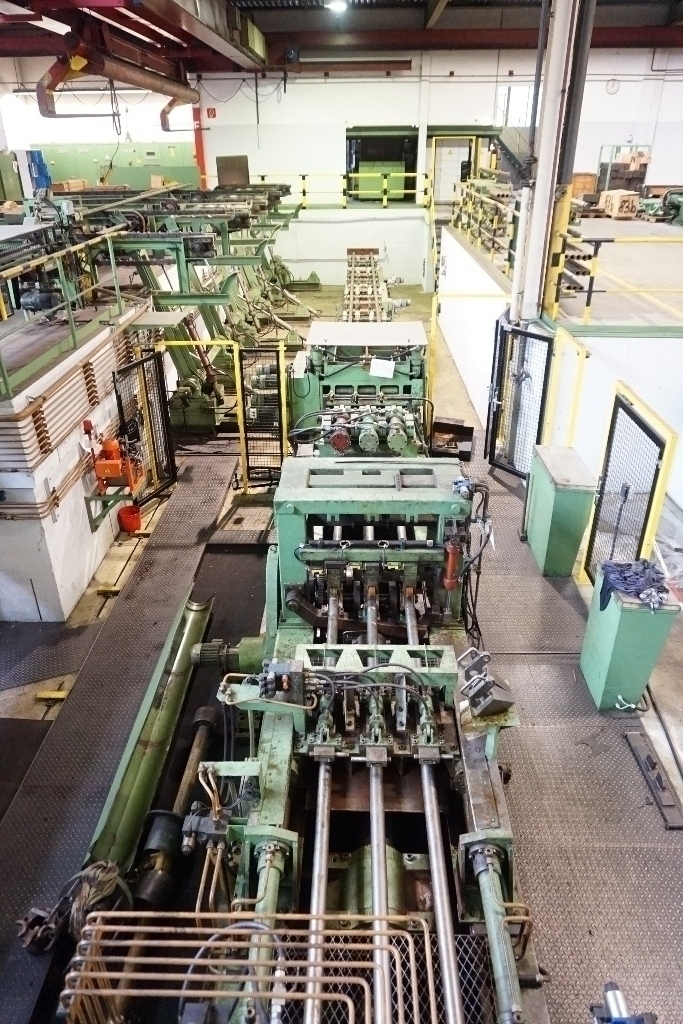

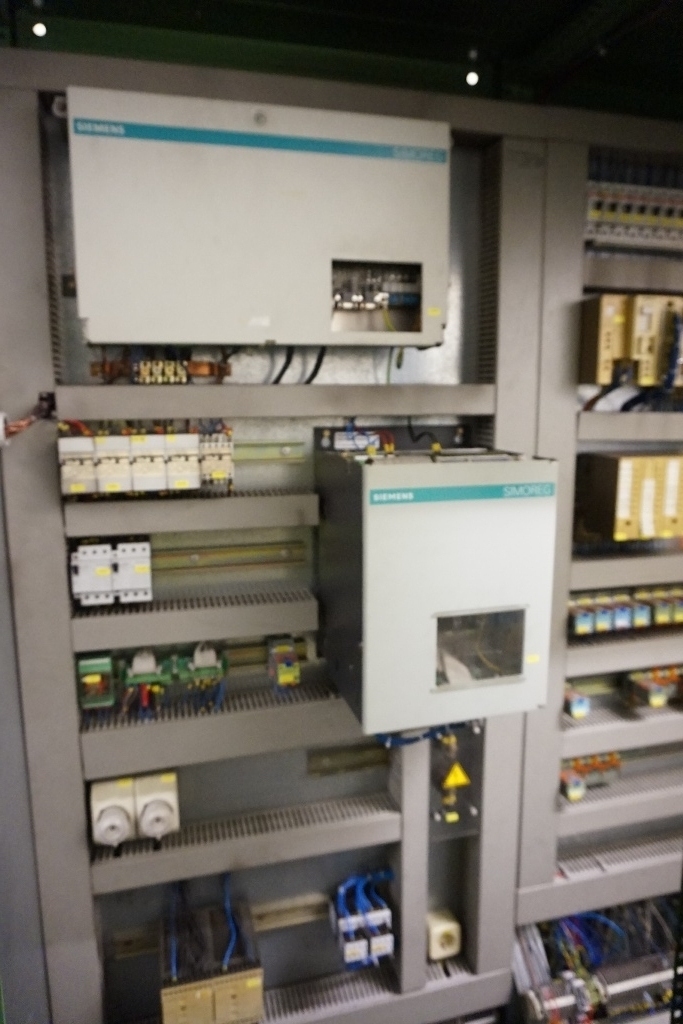

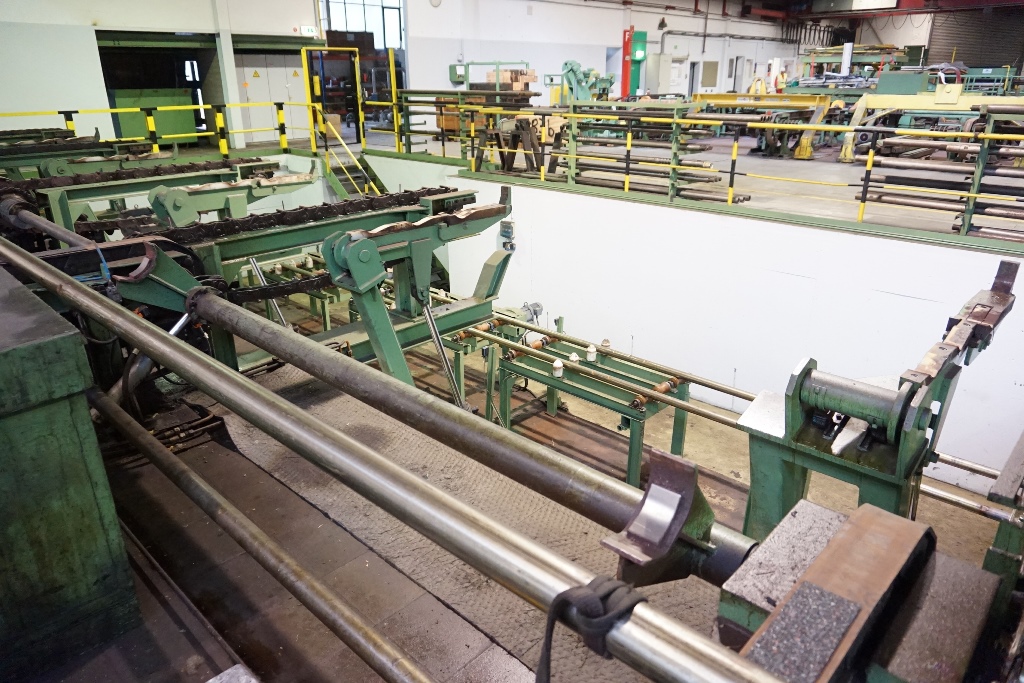

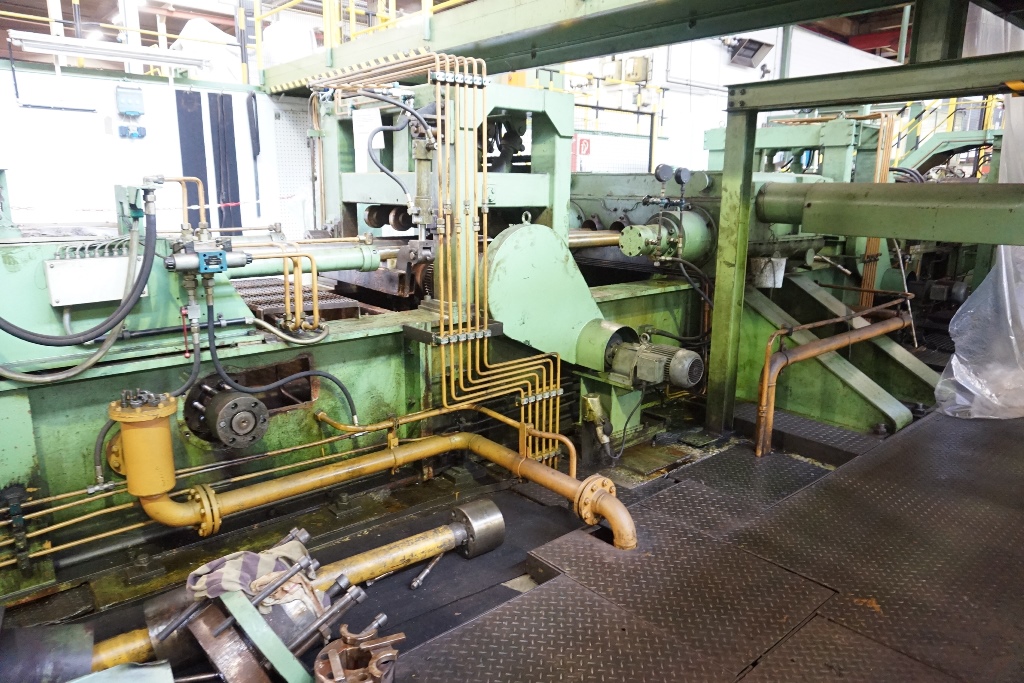

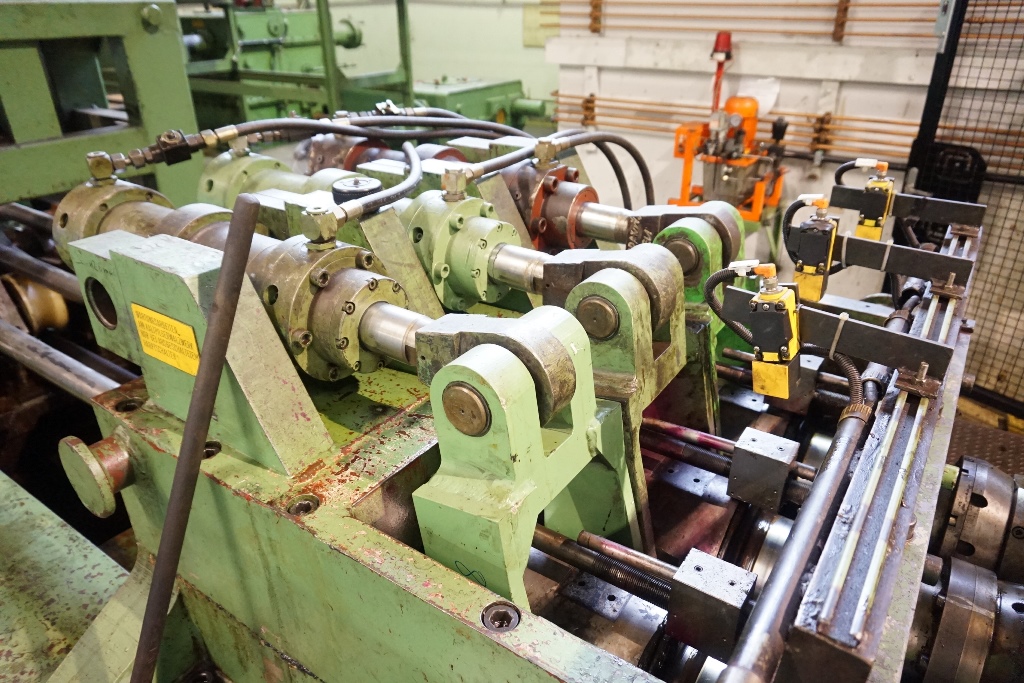

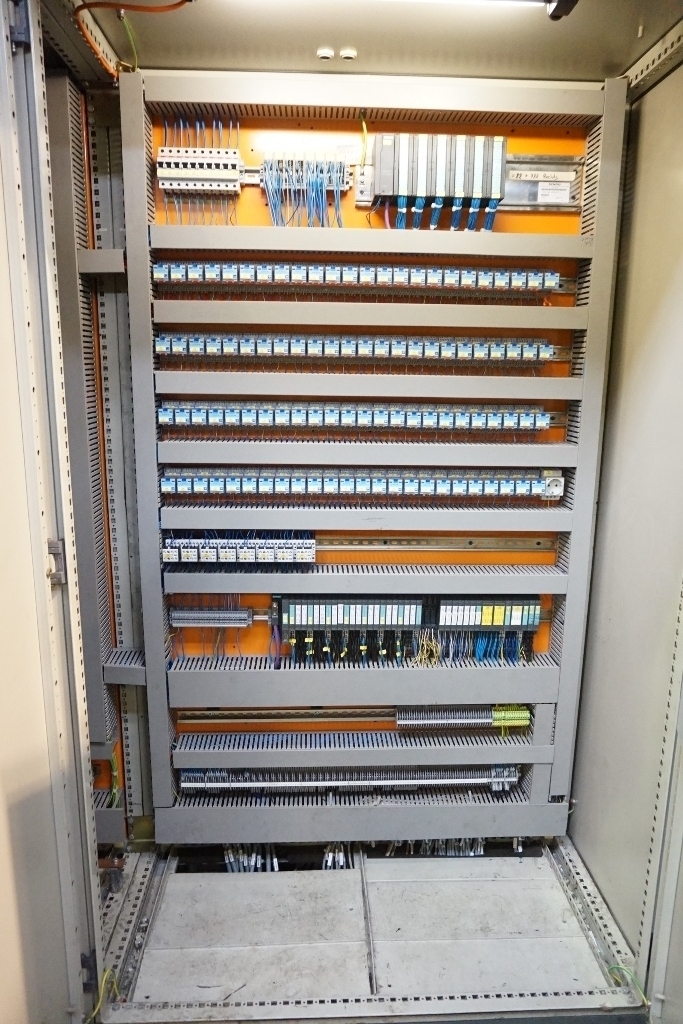

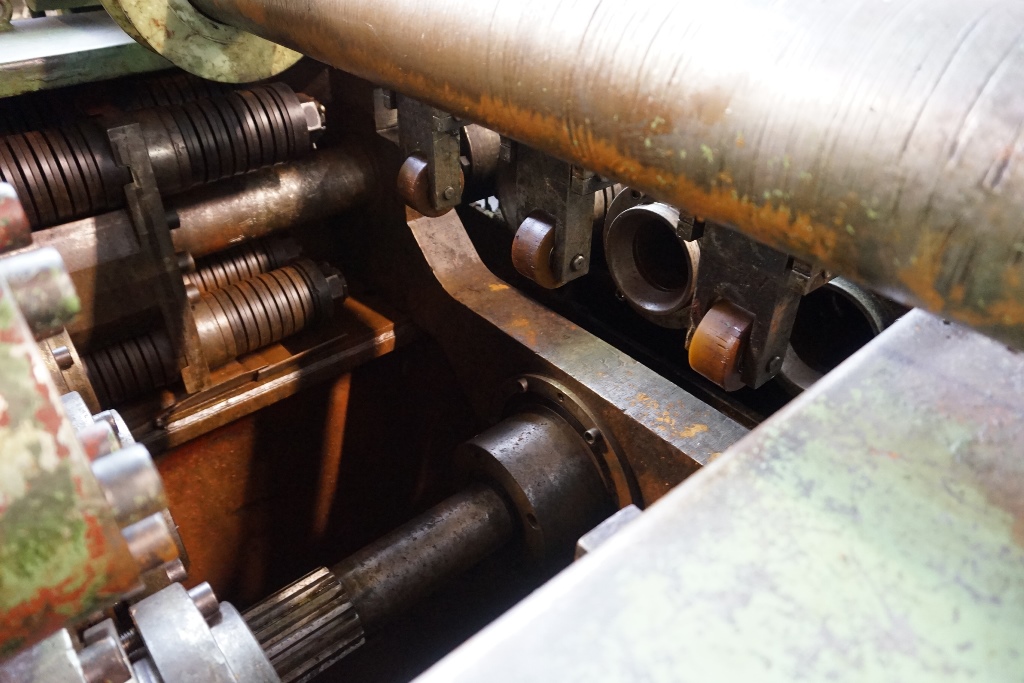

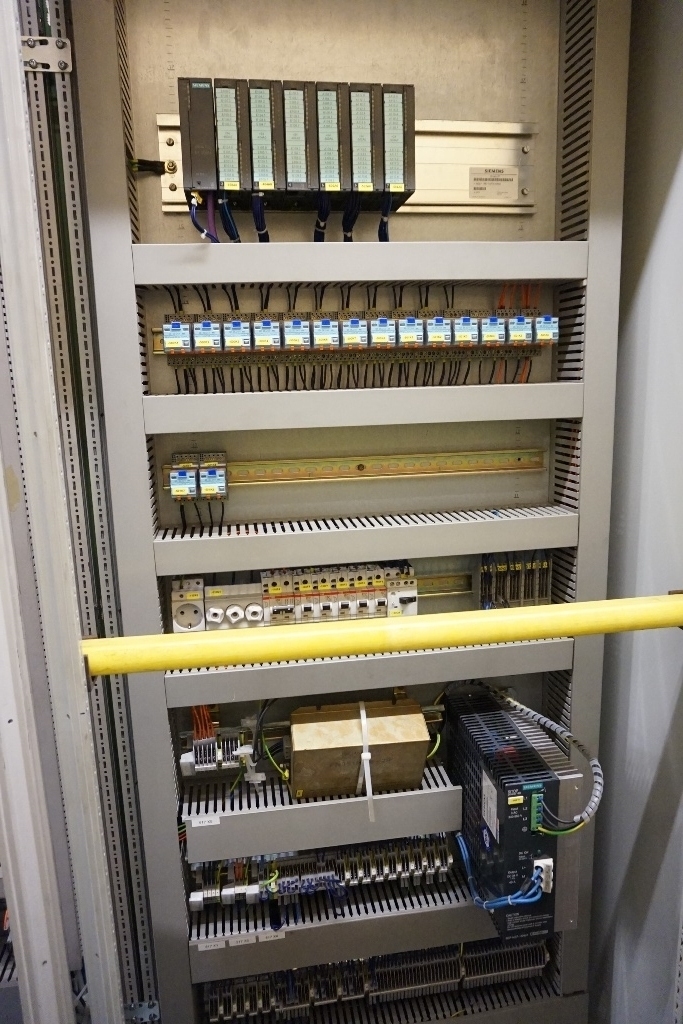

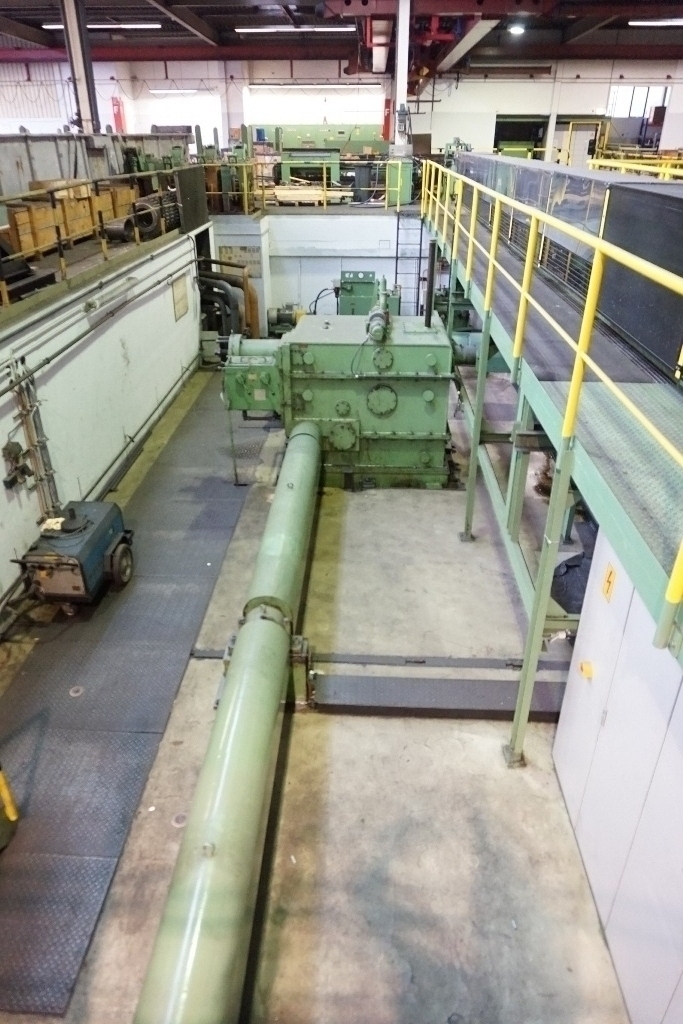

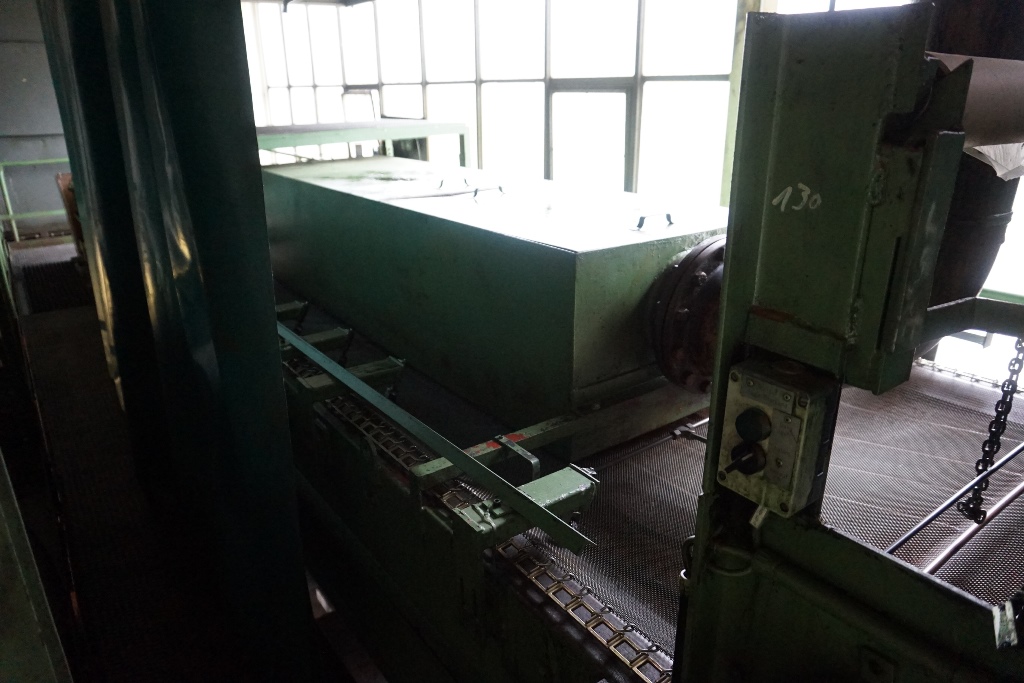

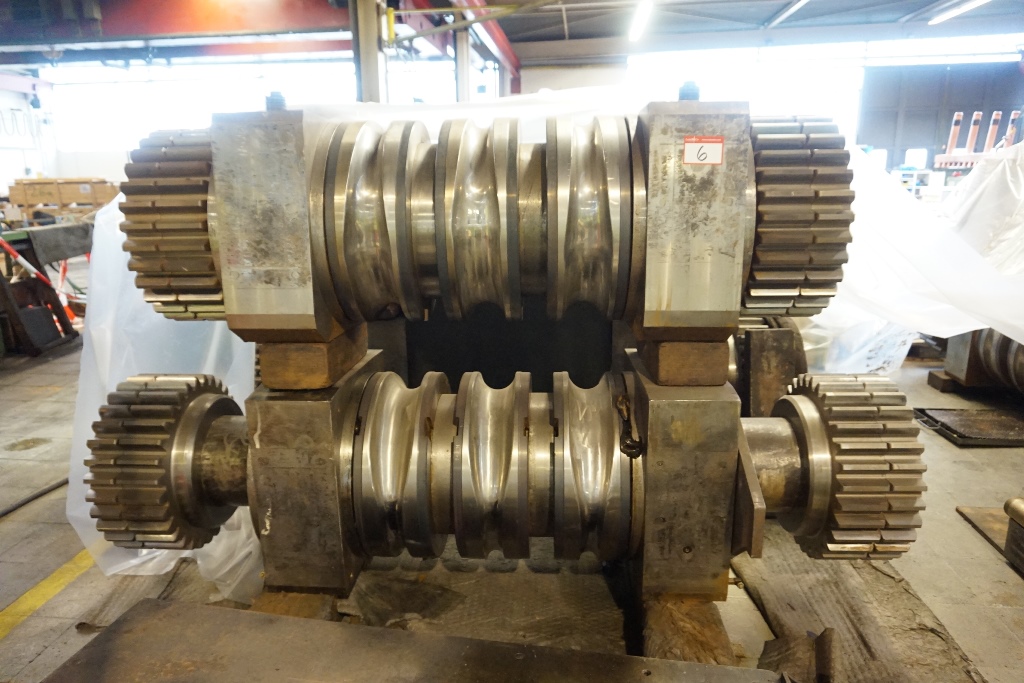

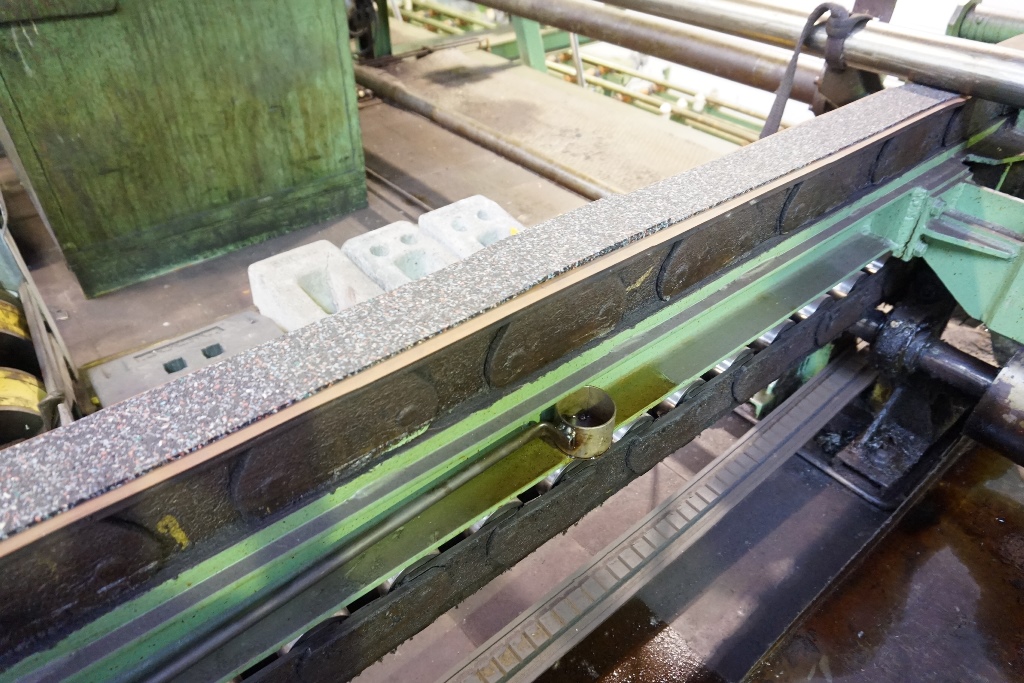

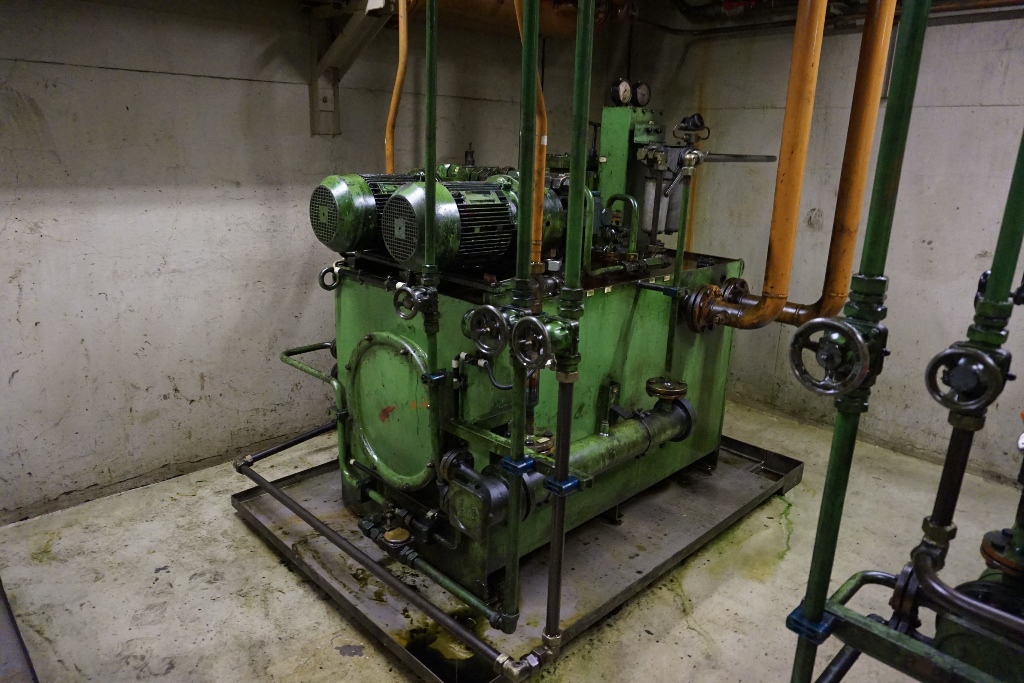

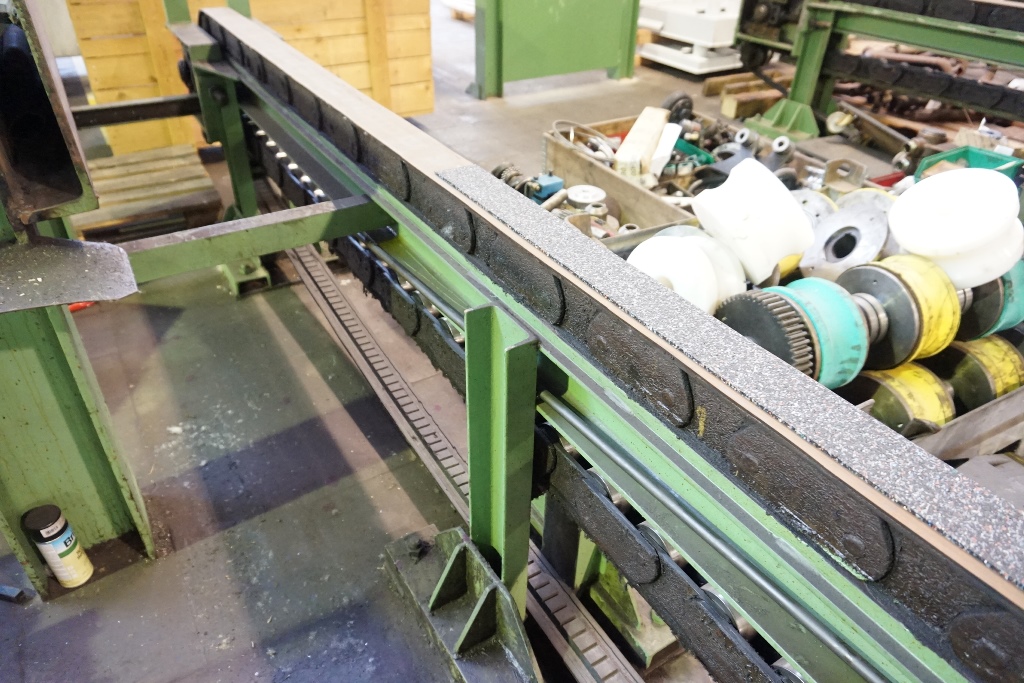

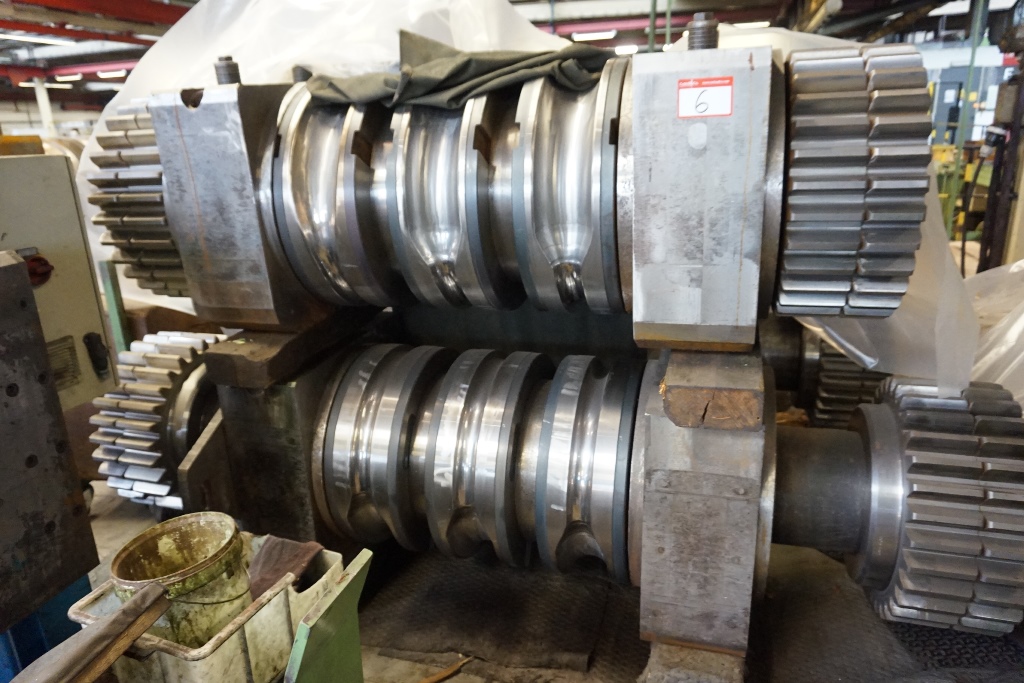

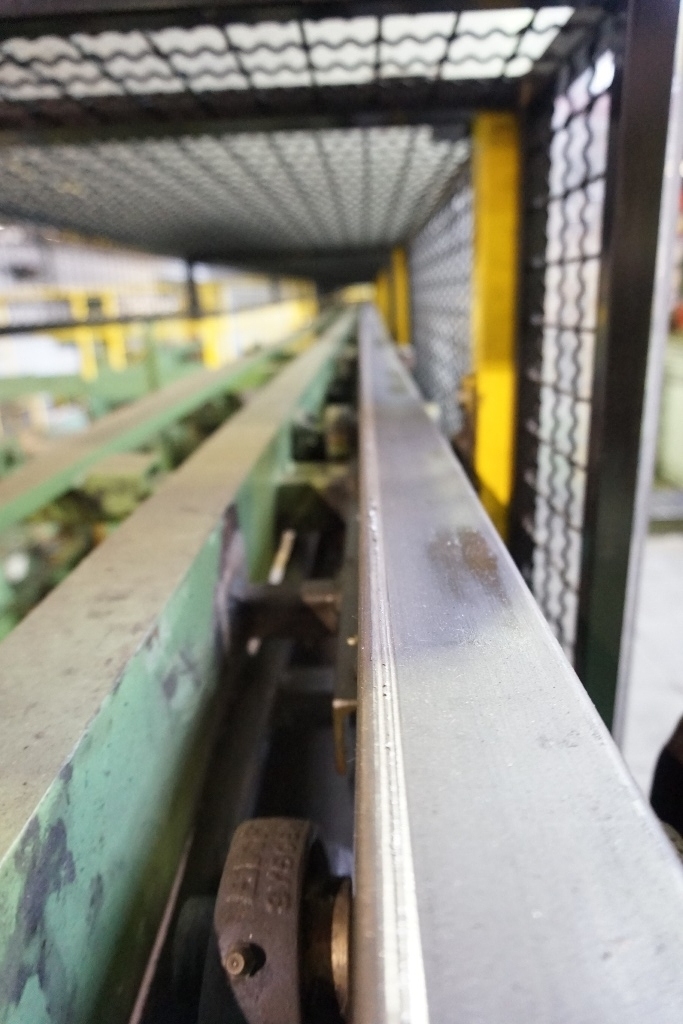

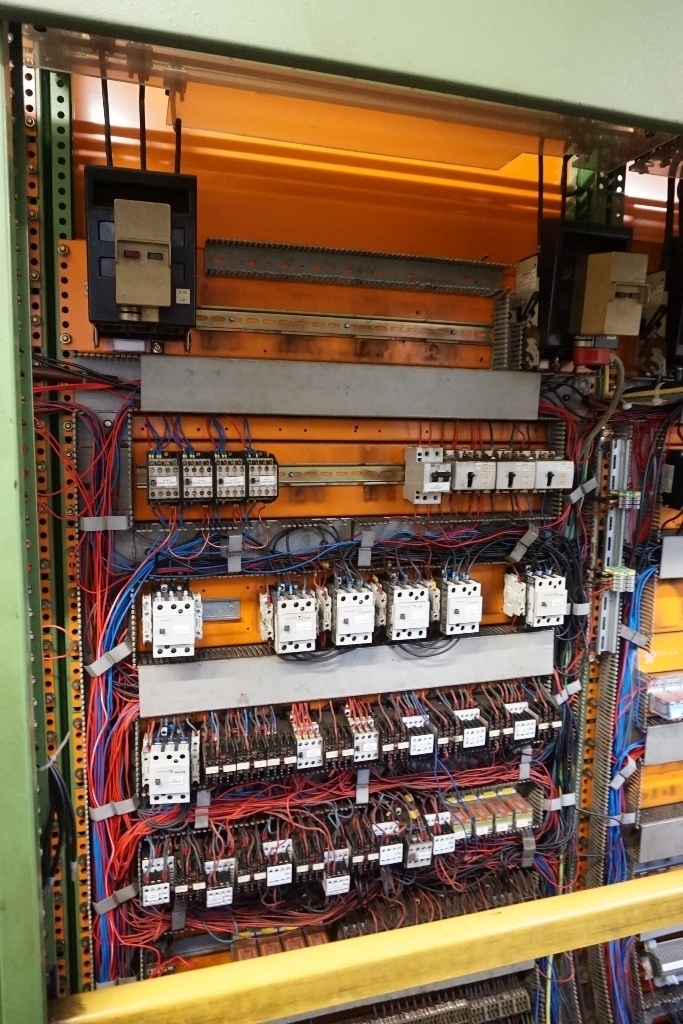

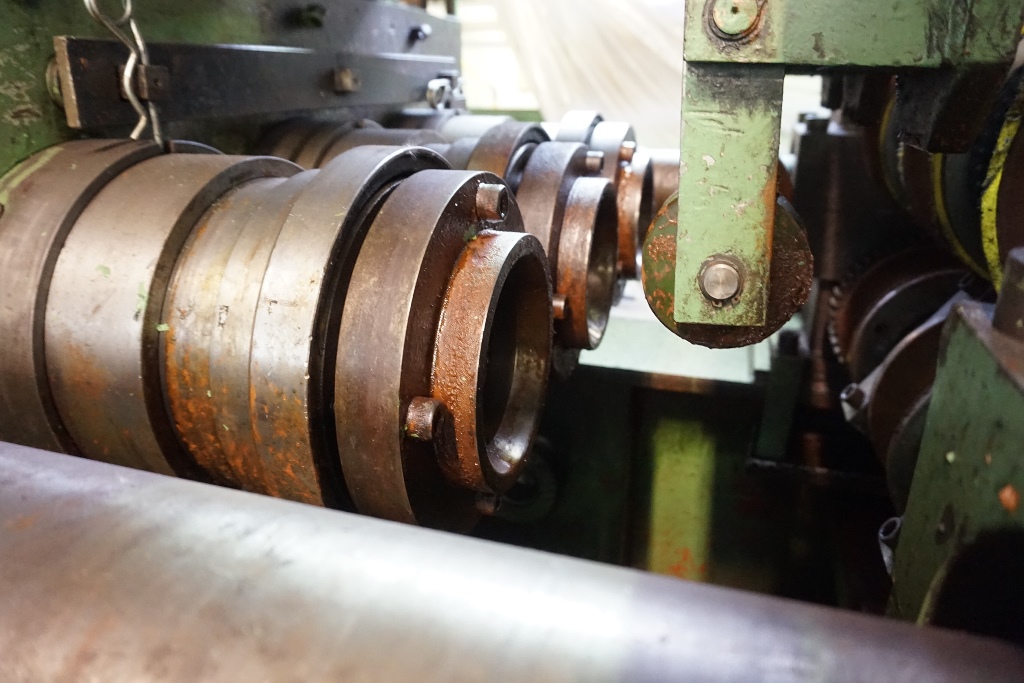

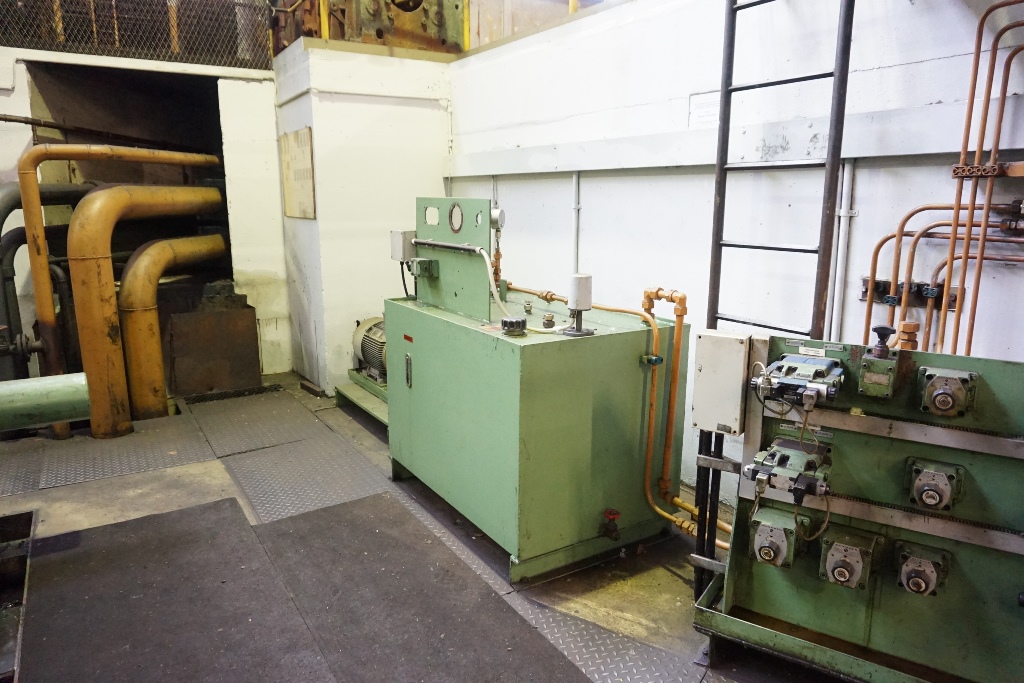

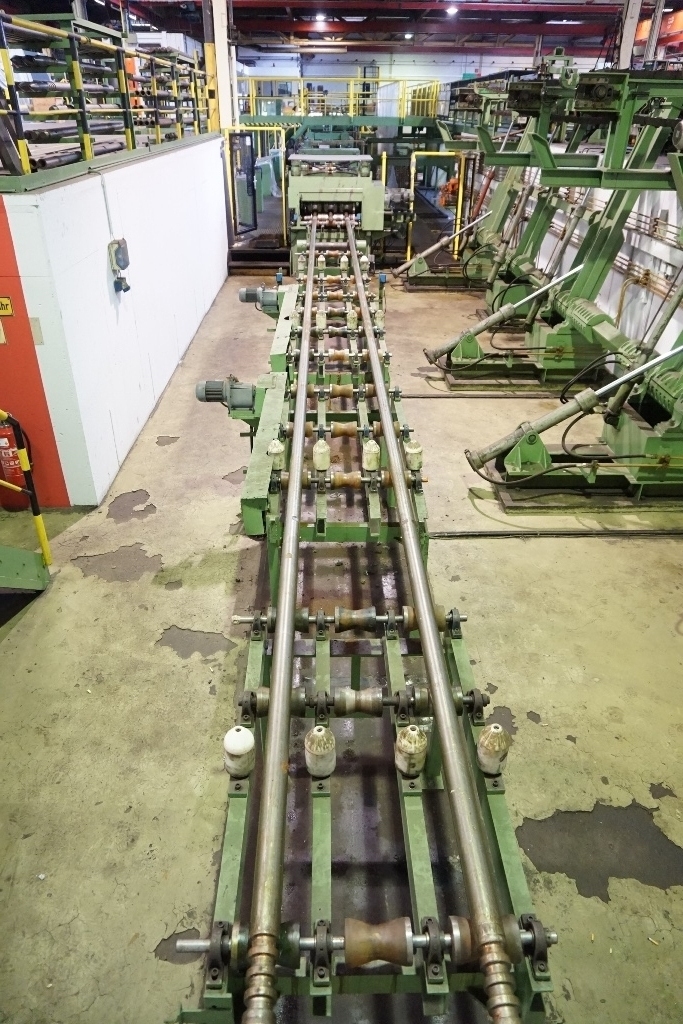

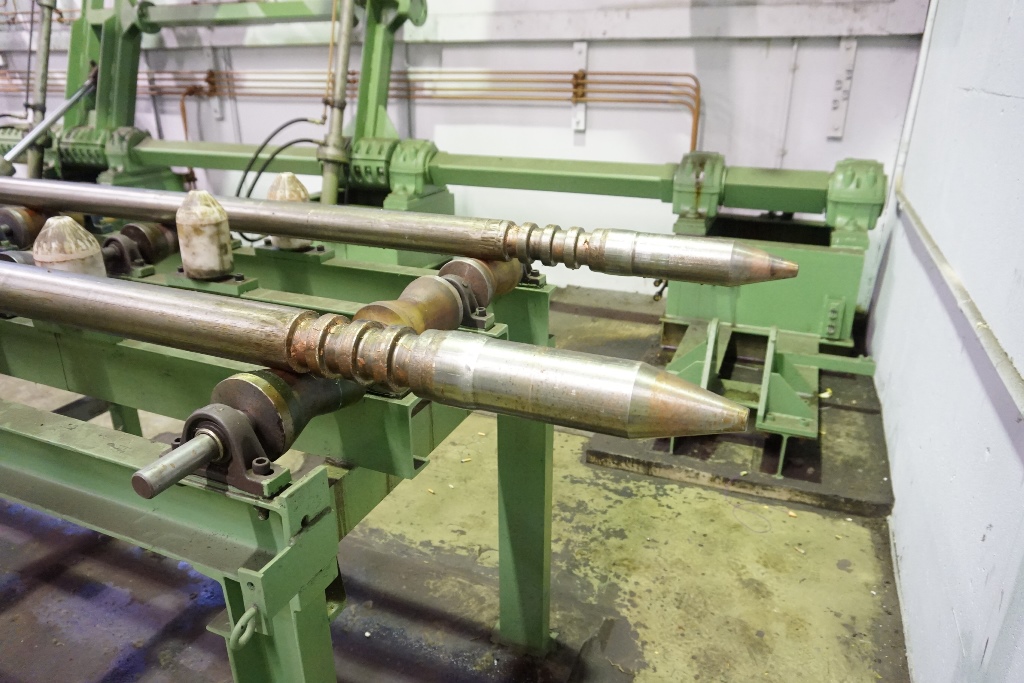

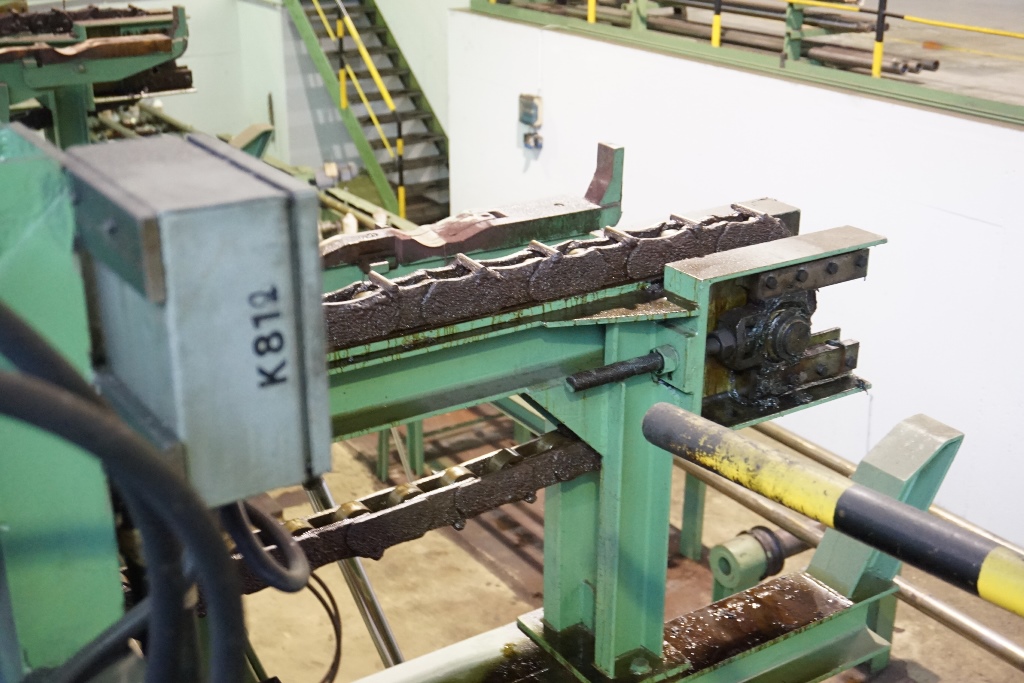

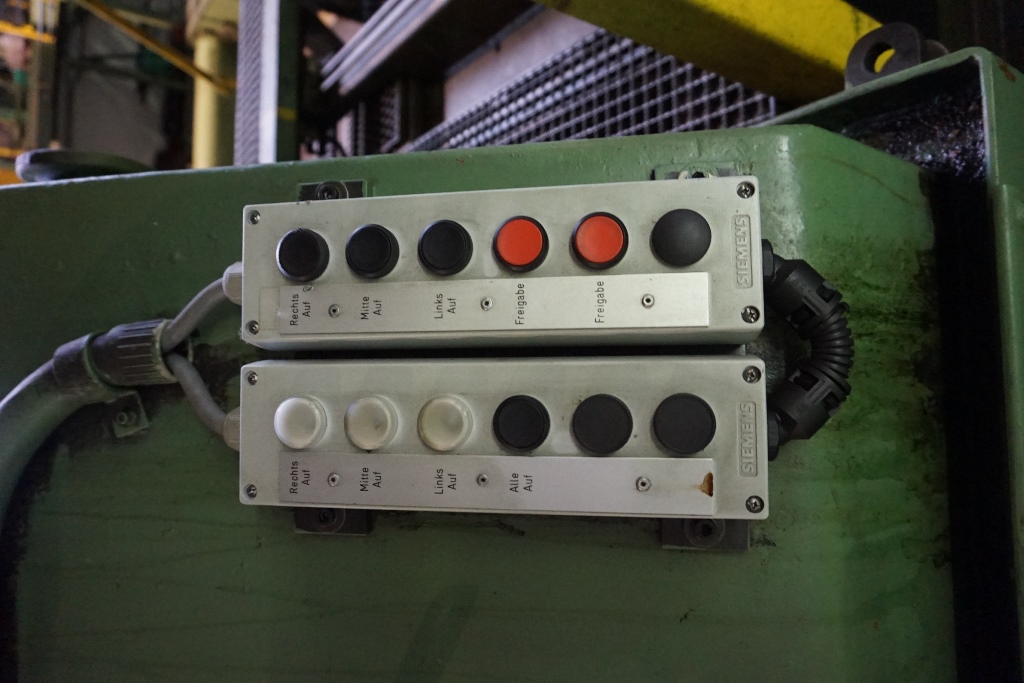

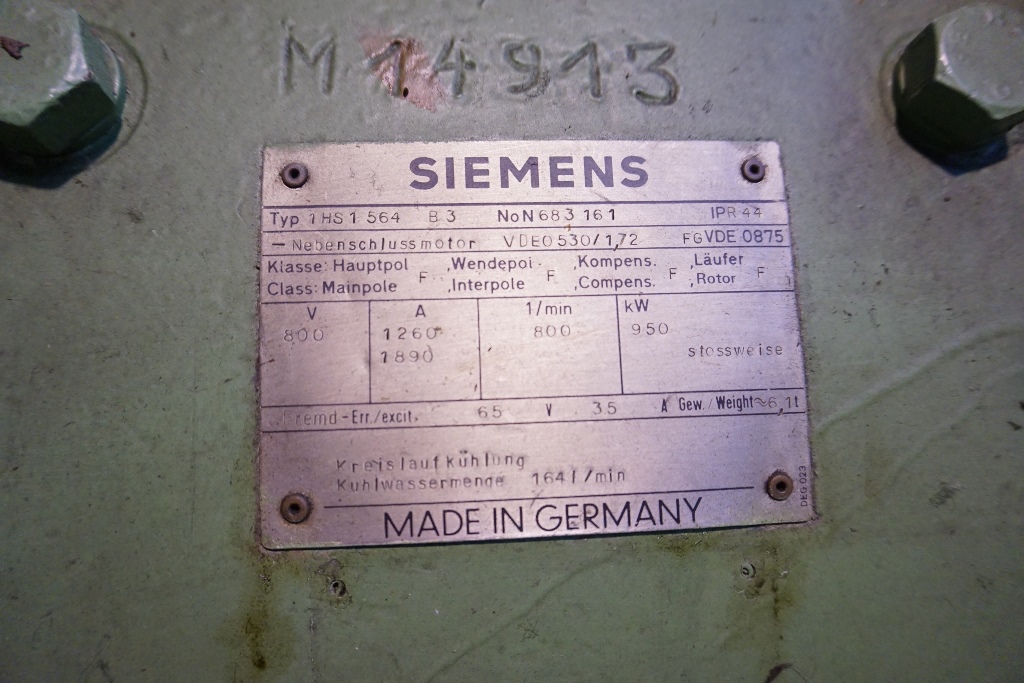

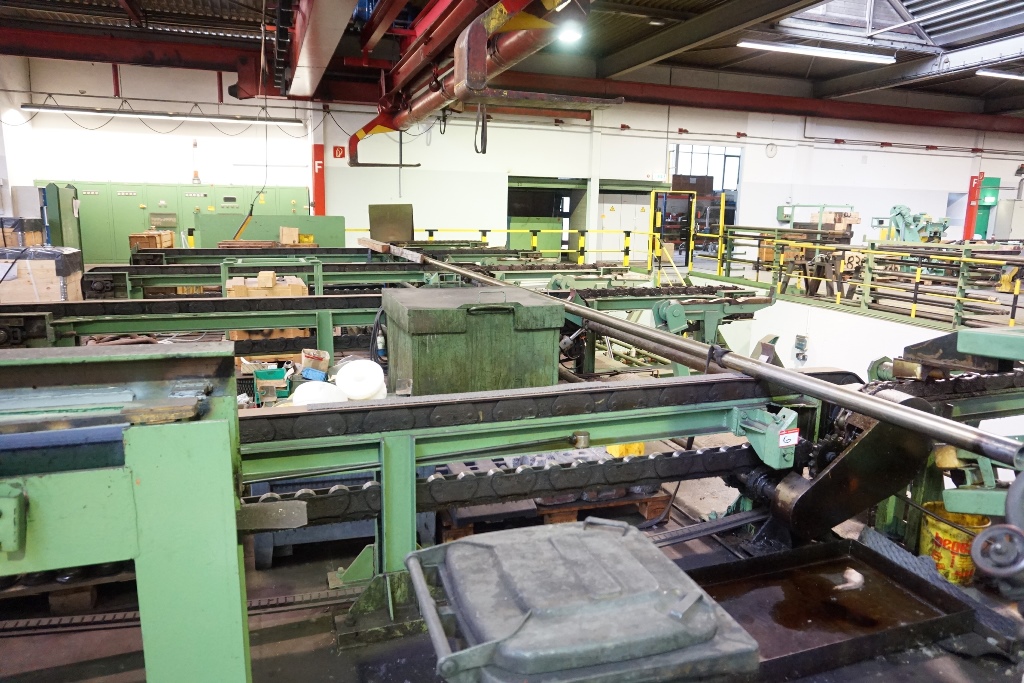

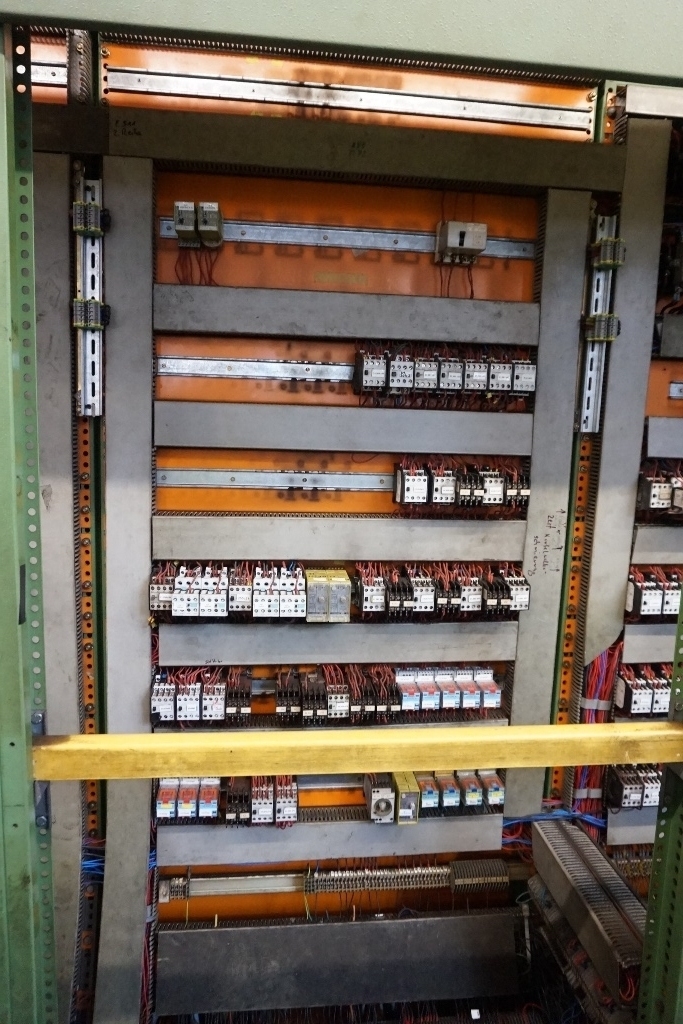

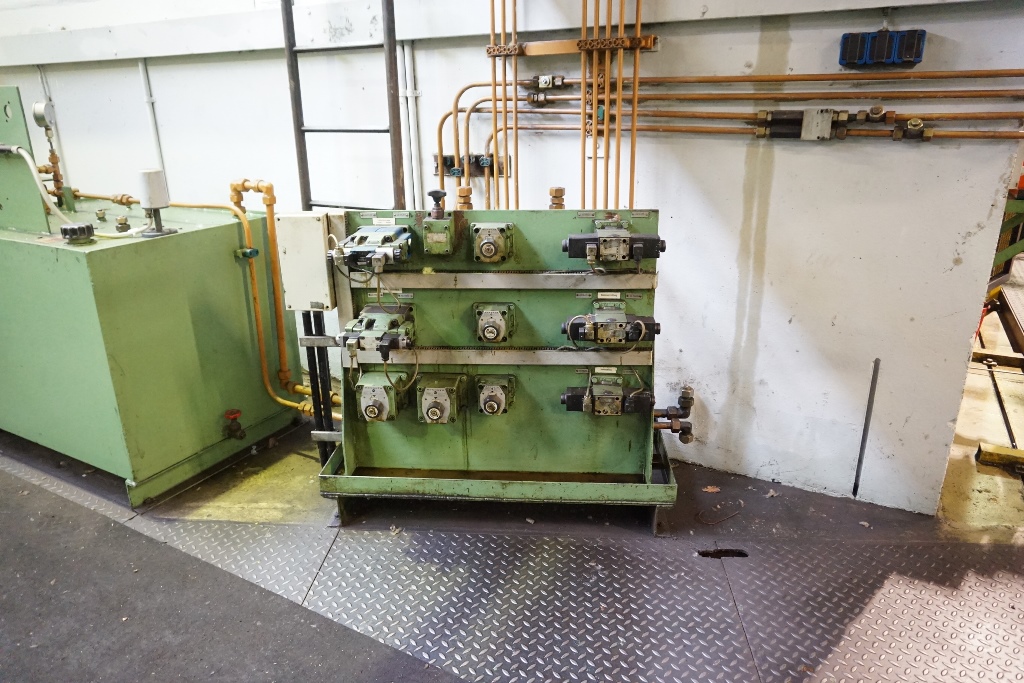

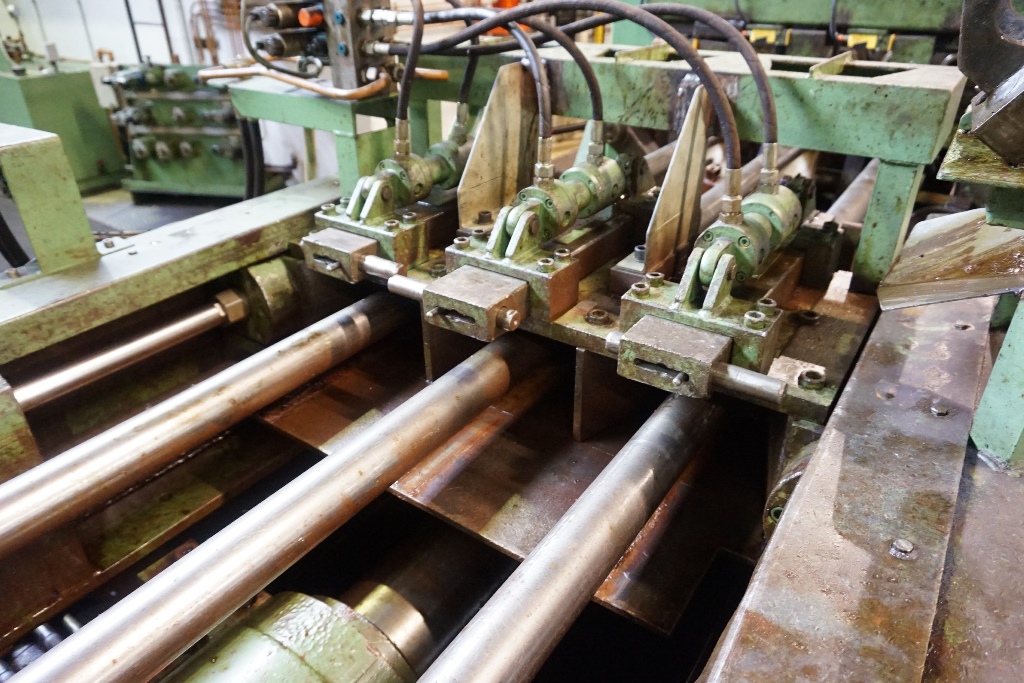

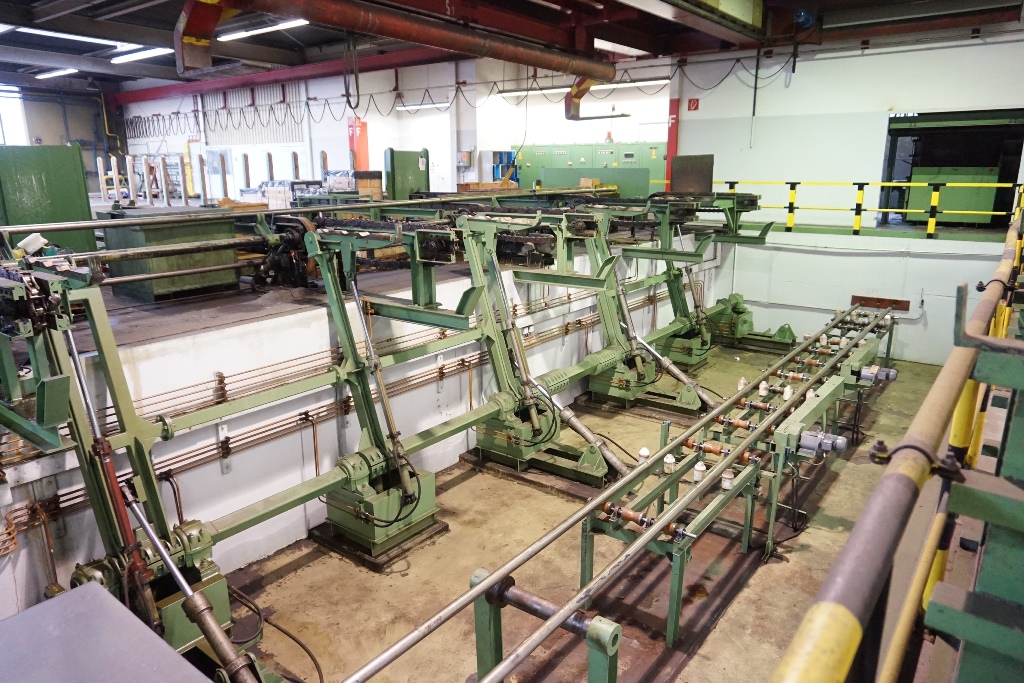

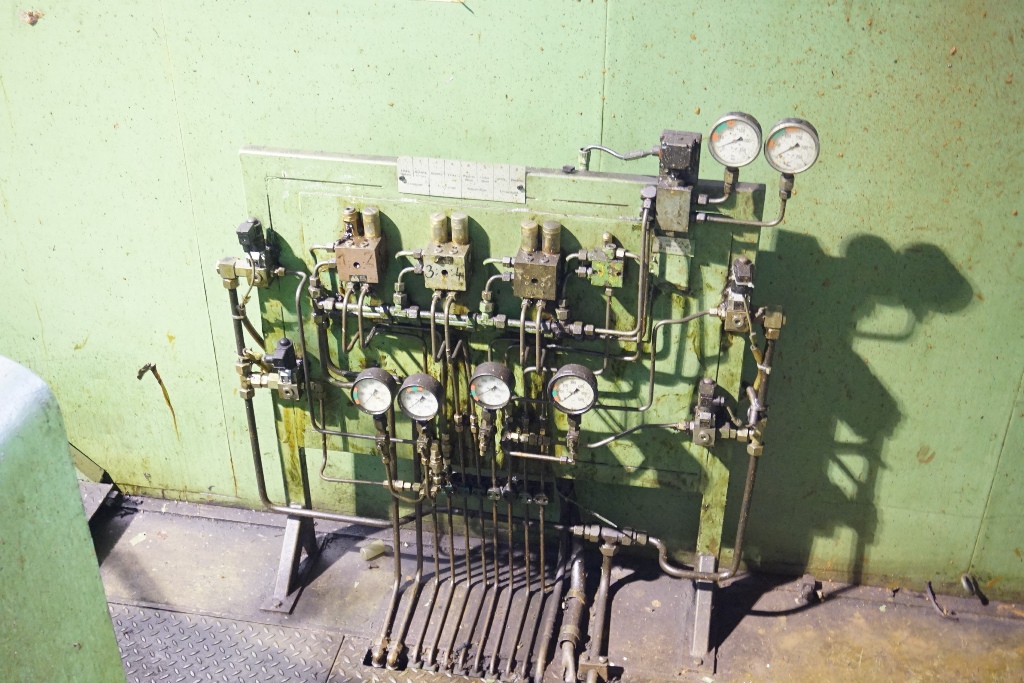

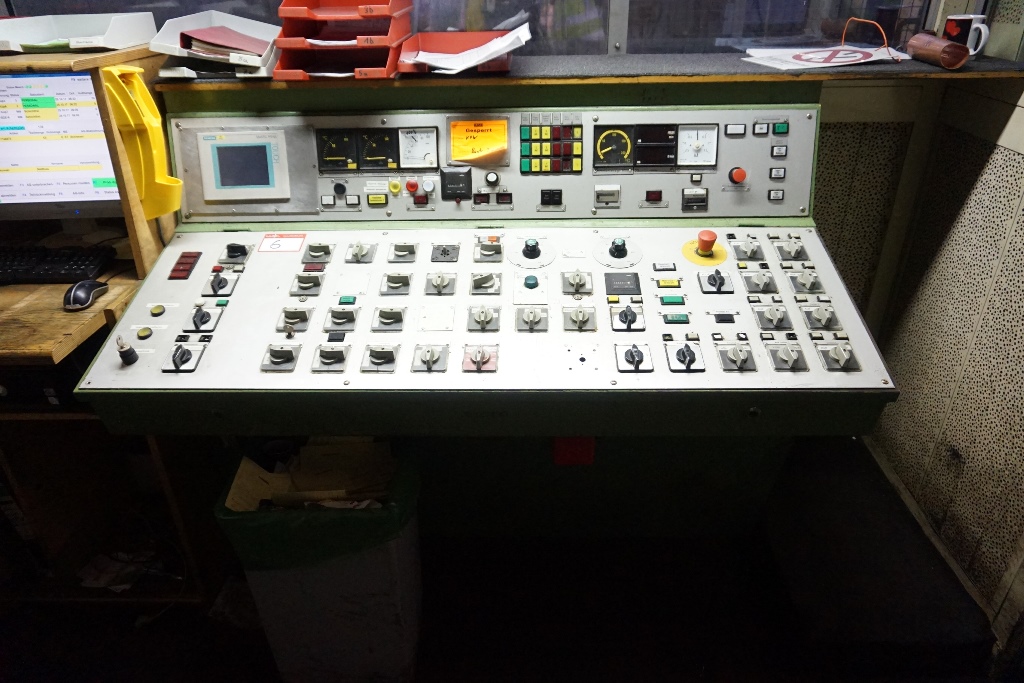

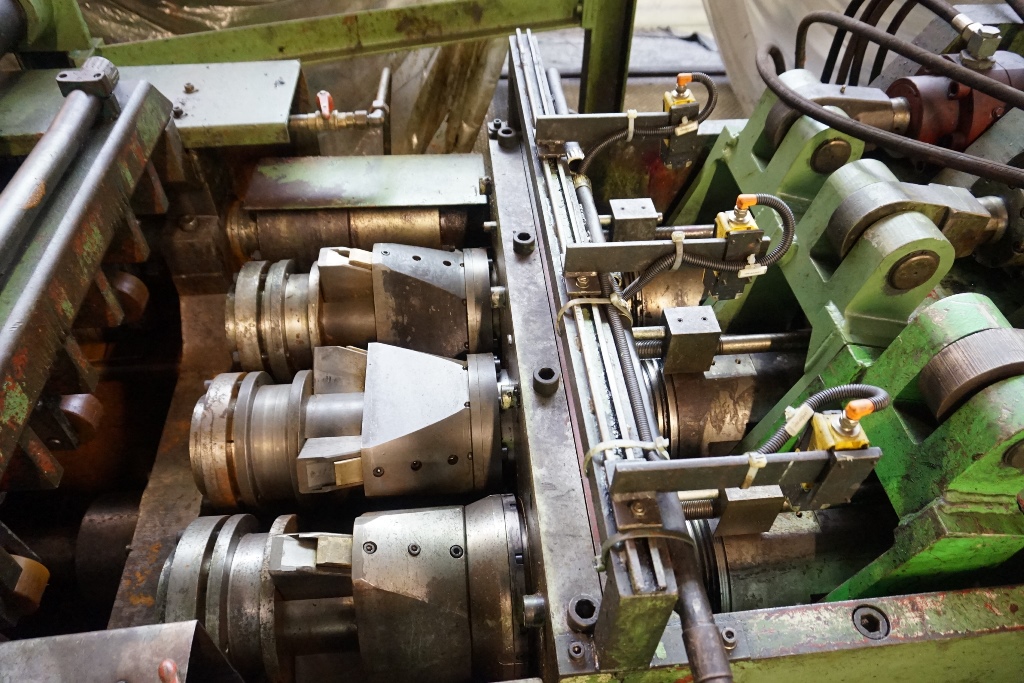

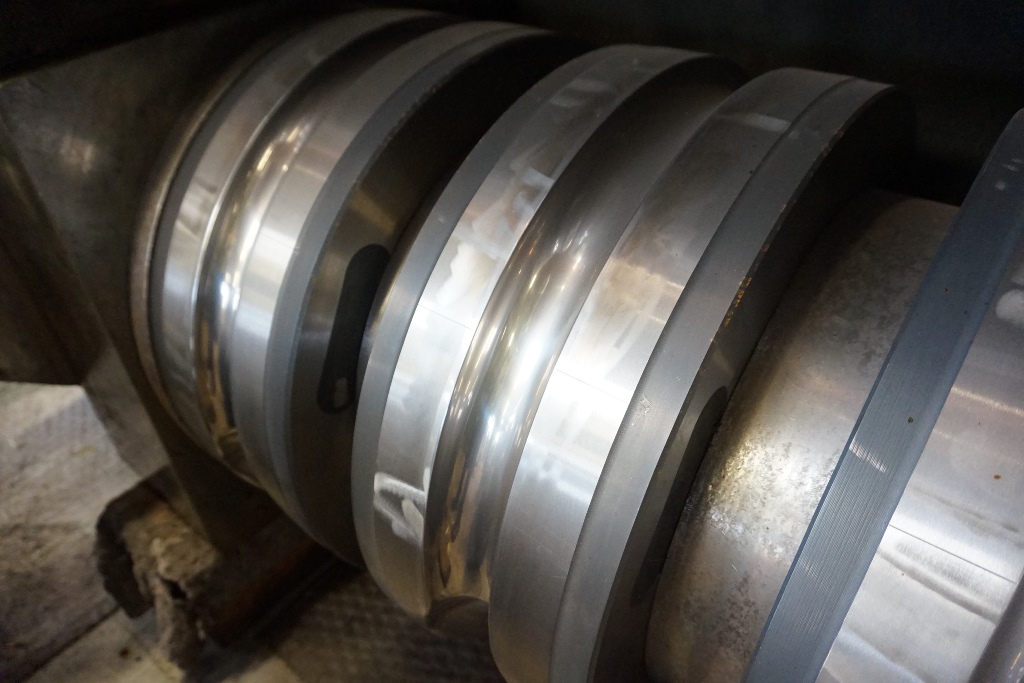

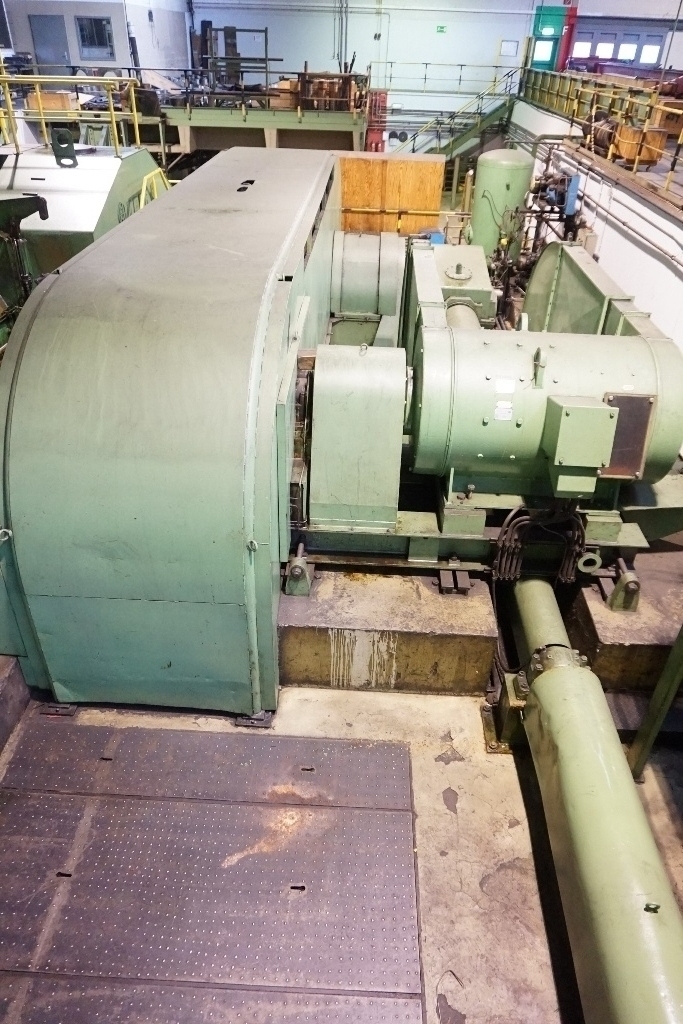

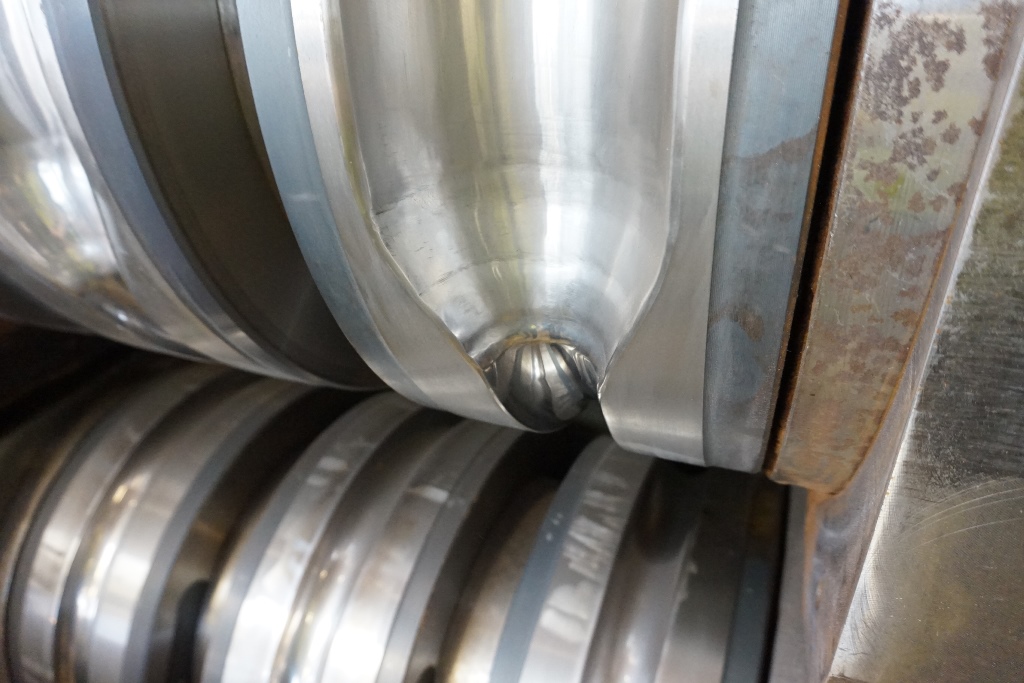

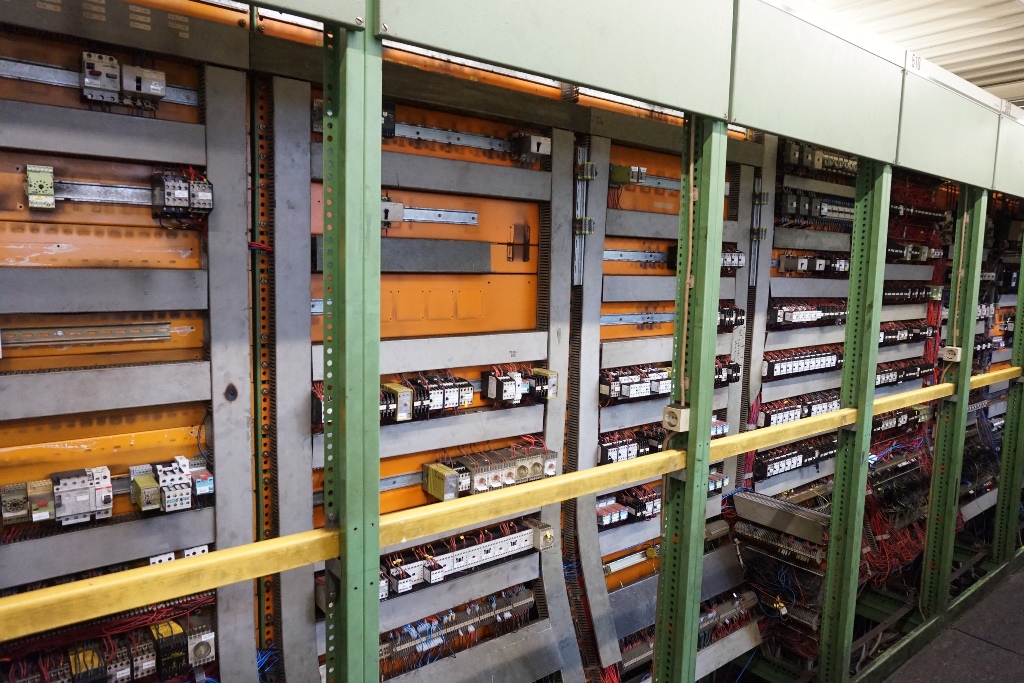

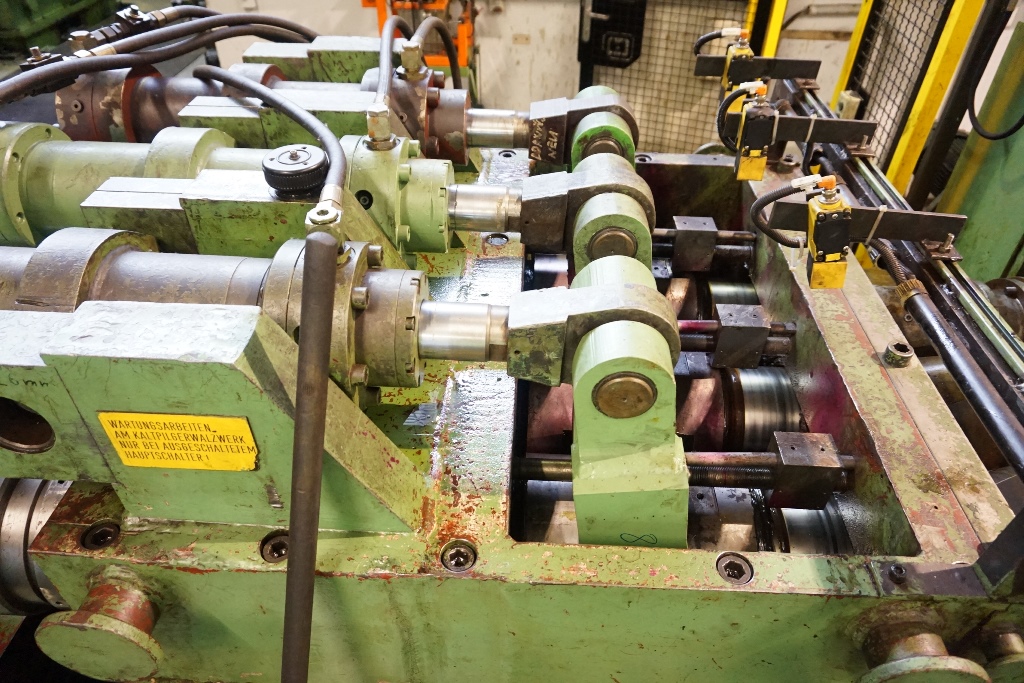

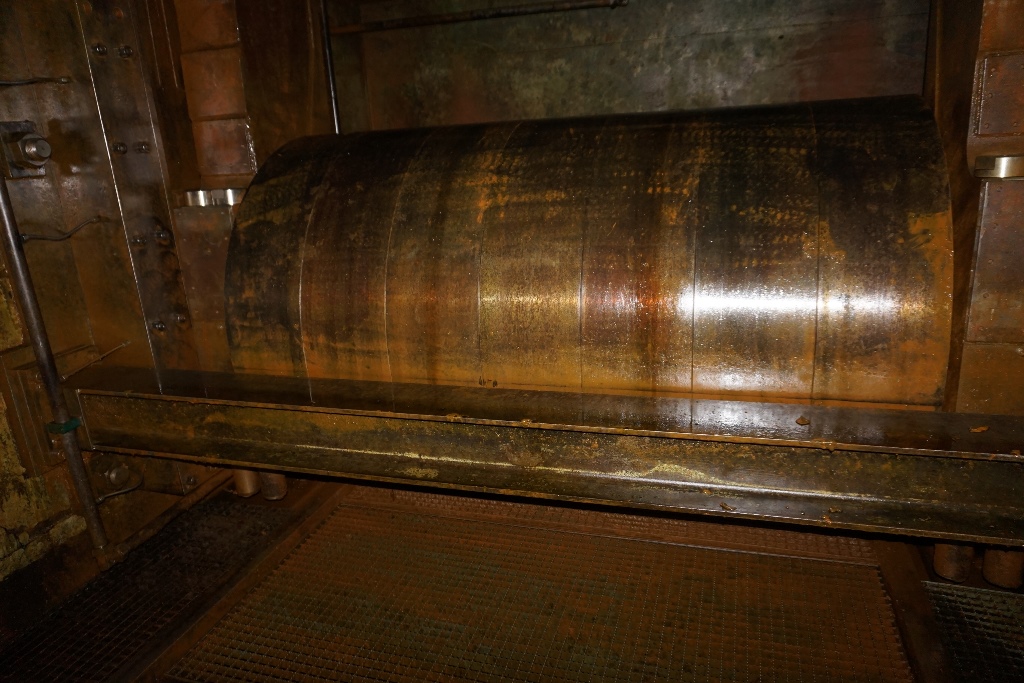

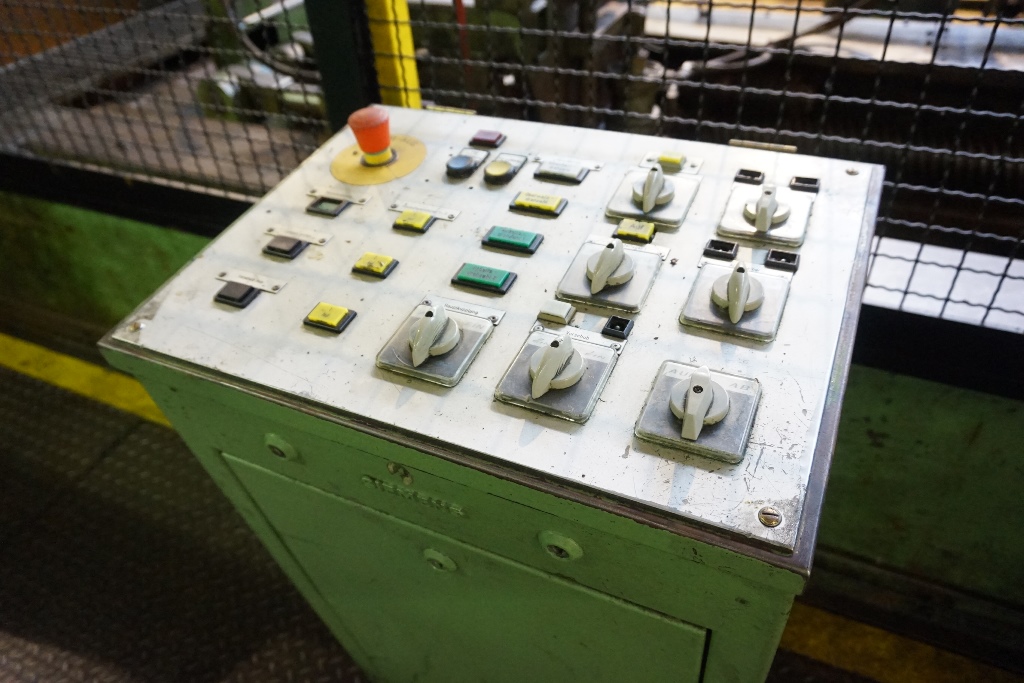

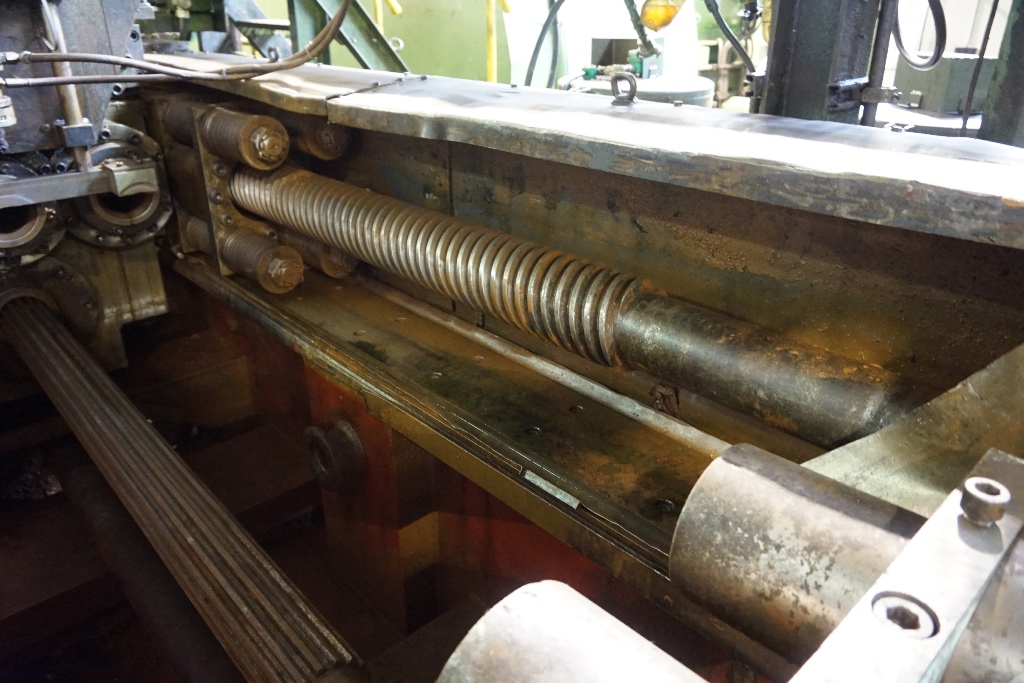

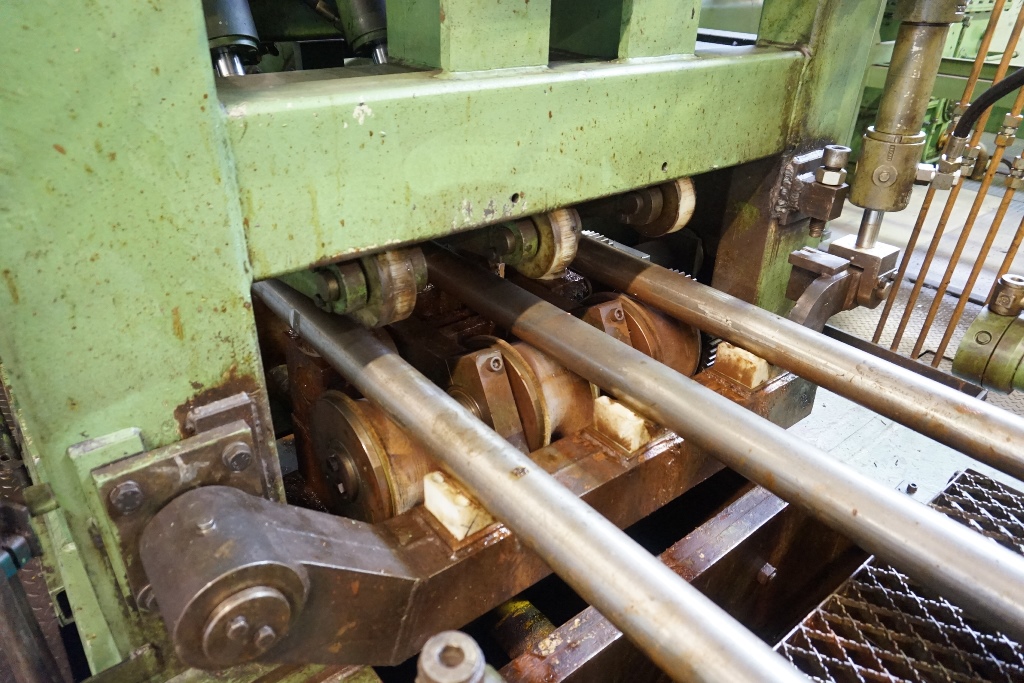

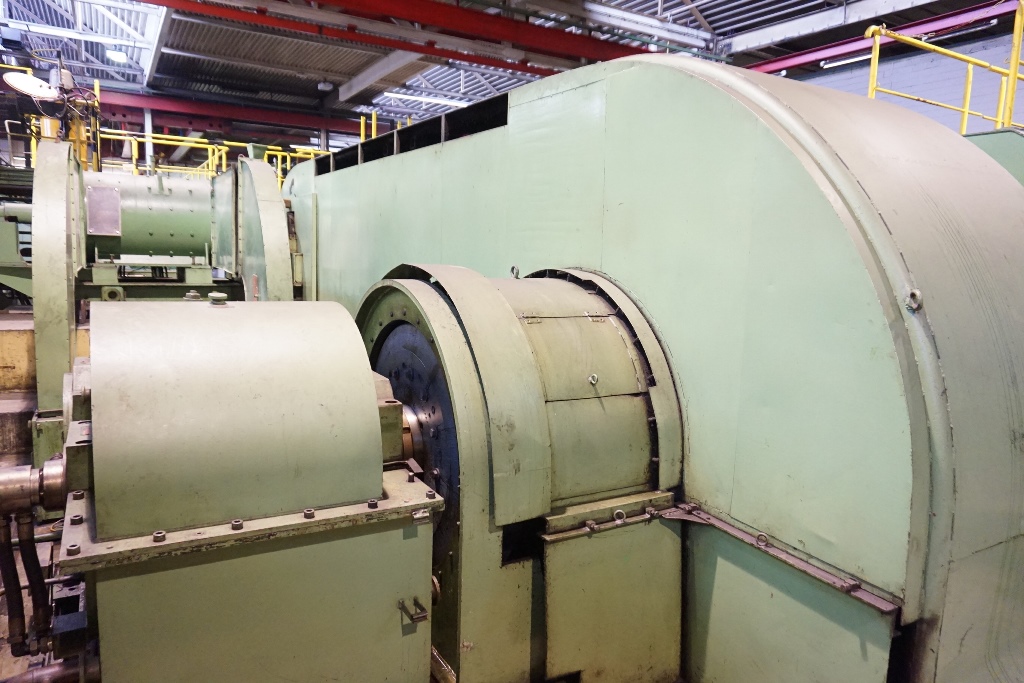

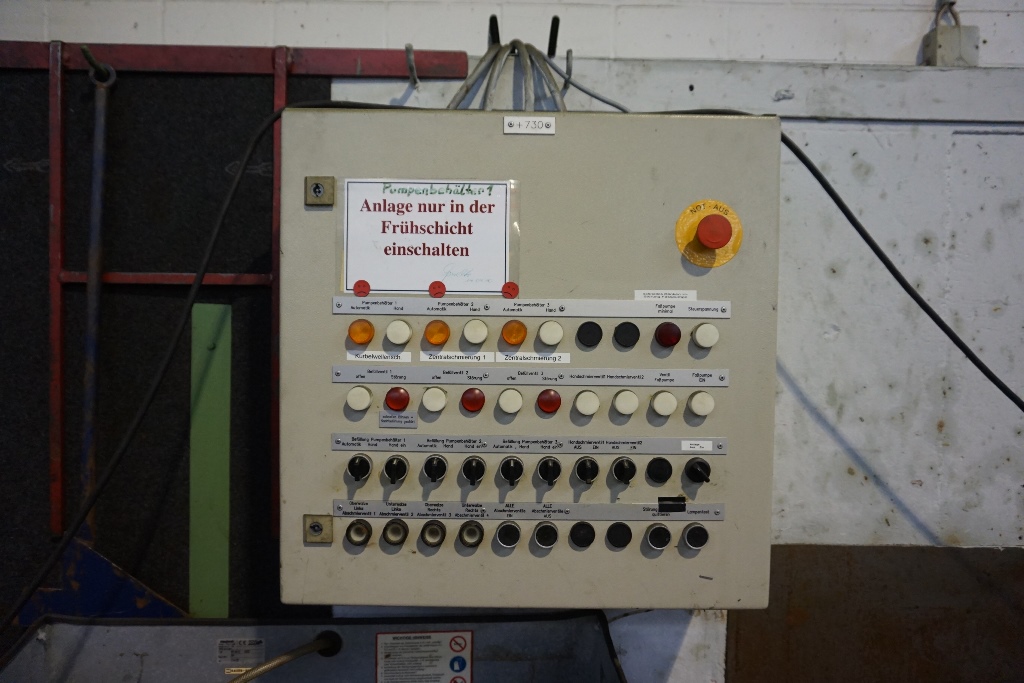

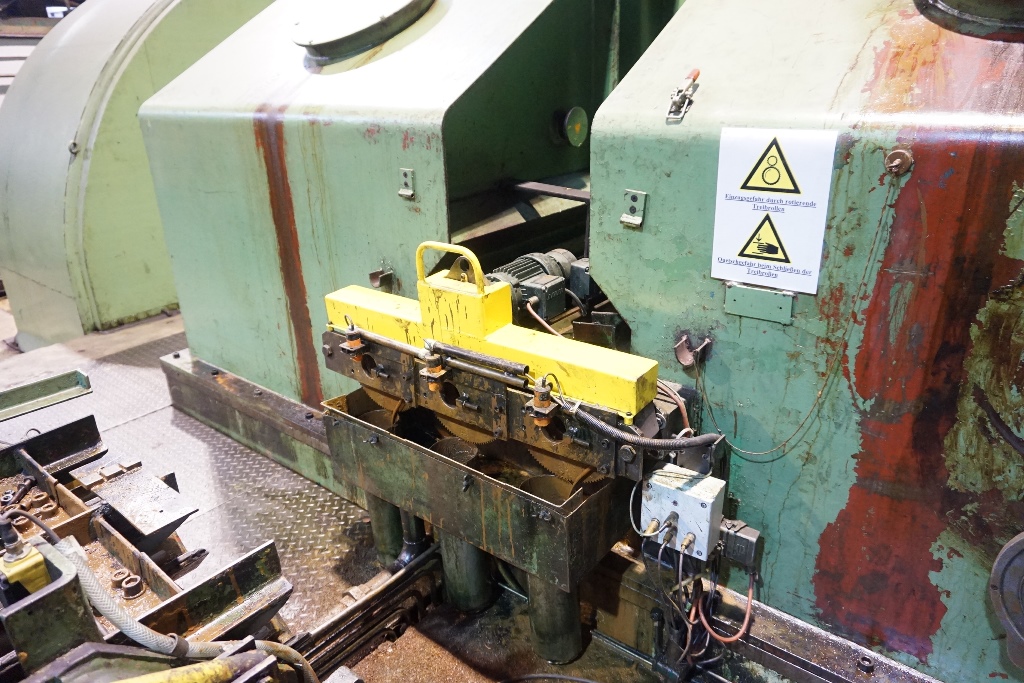

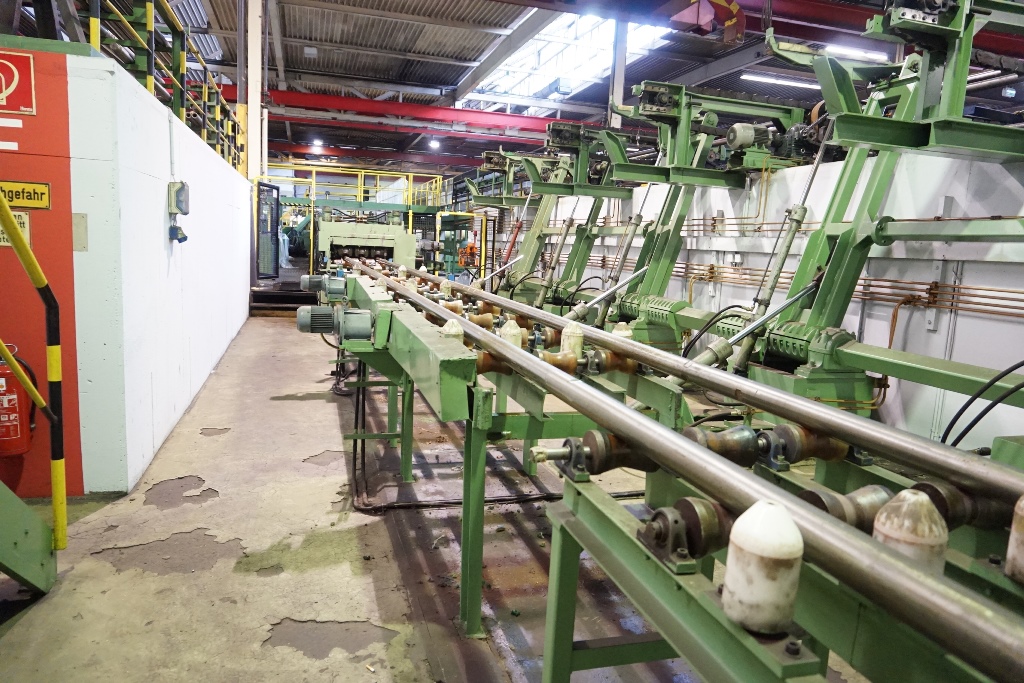

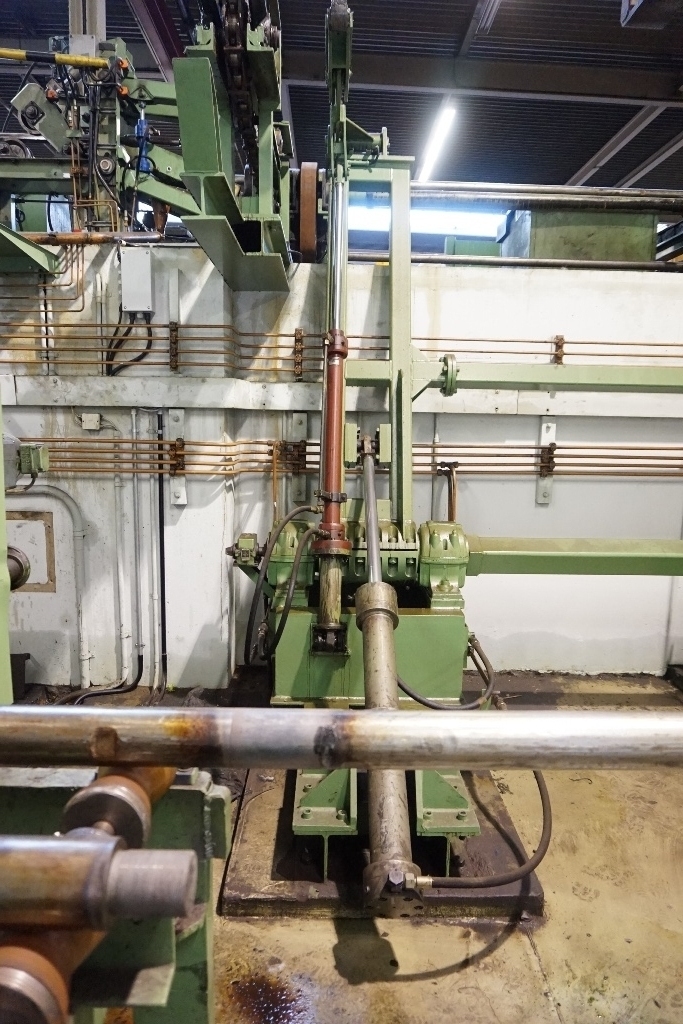

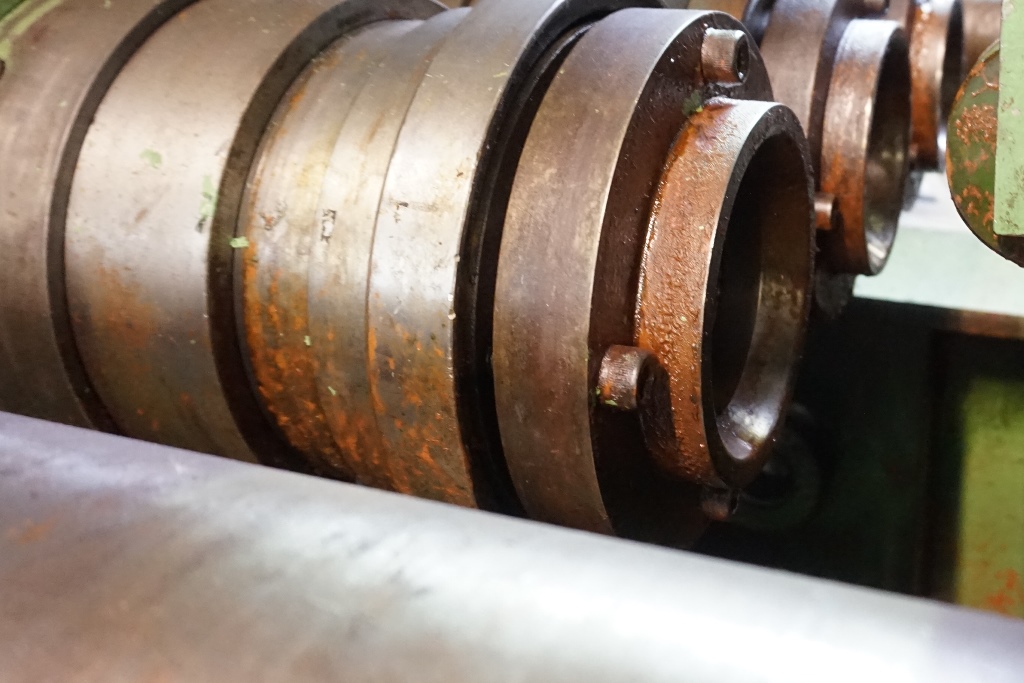

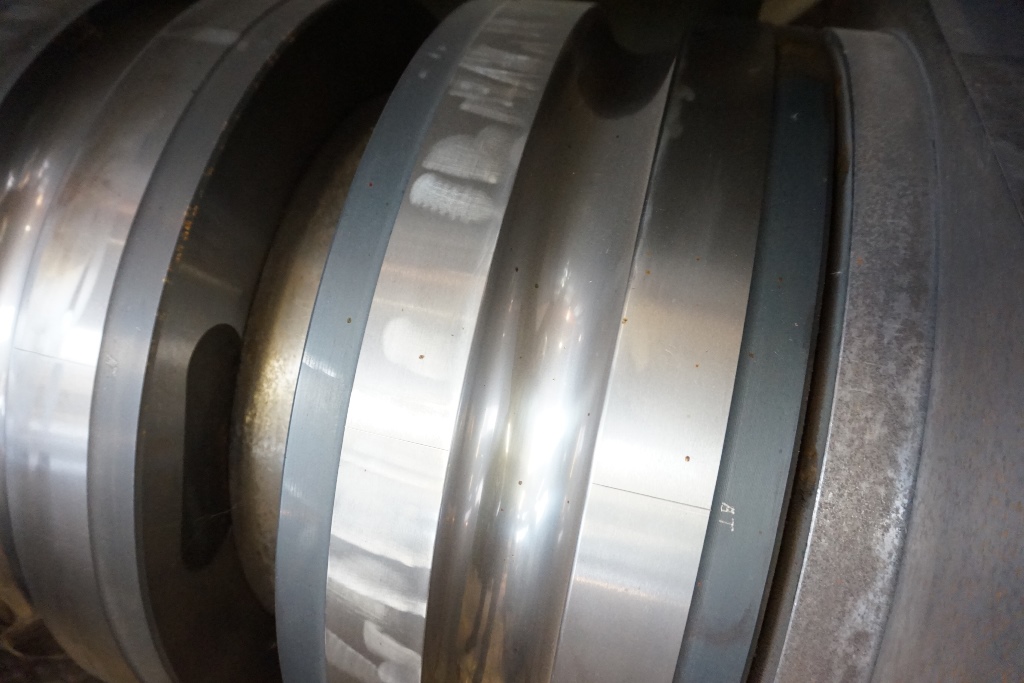

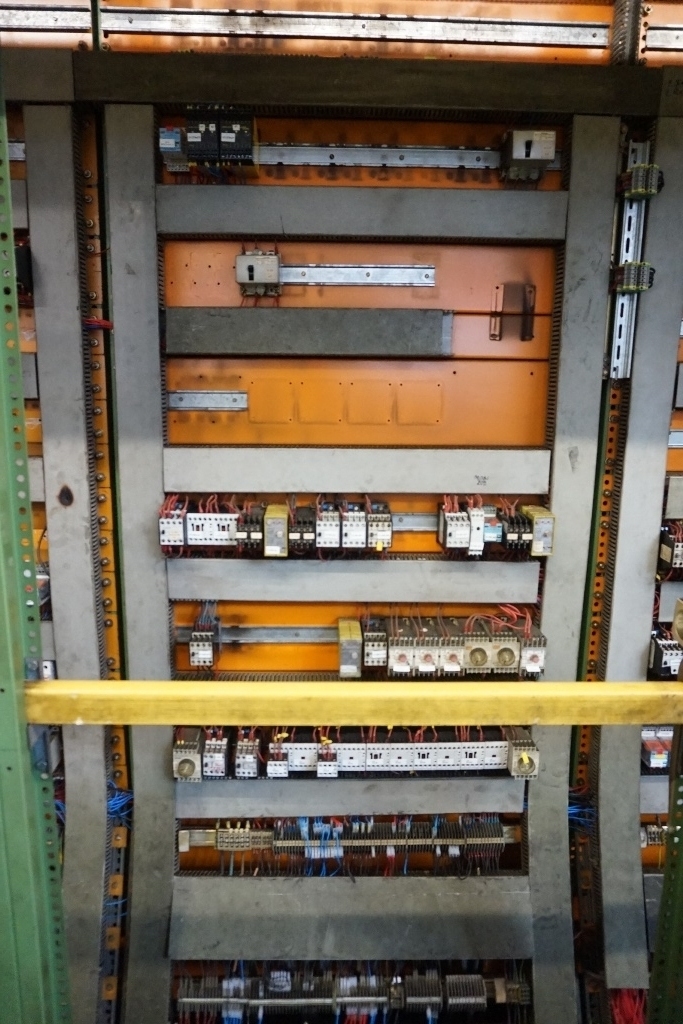

SMS/MEER/ Cold Pilger Rolling Mill, (3) x 115 VMR, number of Billets (3), Continuous Chain, Shell Transportation System with Feeding Table, Strokes 90 maximum – 85 per minute actual, Feed Rate 15.8 / 14.1mm Stroke, Shell Length 14,000mm Max, 8000 Minimum, Shell Dia Outer 115m Inner 89mm, Shell Weight 500KG, Exit Material: Tube Dia Outer 58mm Inner 53.2mm, Max Tube Eccentricity: % + - 2, Main Electric DC Motor 950KW 800 RPM with Controls, Reserve Main Clutch, Kind & Co/ Century Calibrating Roller 610mm dia x 220mm width, Tools Calibrating Roller Material. No. TQ1/1.2344, Calibrating Roller Hardness (HRc), Chrome Plate Mandrels – Material 1.2363, Thickness 0.003mm Hardness (HRc) 54-56 Pushing Device, Push Rods x 4, Noise Protection Hood with Controls, Chain Shell Transport System, Emulsion System with Controls, Tube Guilding System – Pilger Tunnel, Turning Device for Pilger Tools, Mandrel Support, Delimon Central Lubricating System, Controls and Electrical Cabinets
Please Note: This Item is located in Germany. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Please click here to view a specification sheet for this equipment
Please note this lot is also offered as a combination lot
The "Combination Lots" mechanism gives our customers a simple way to place a bid on a number of related items, if you want to understand better click hereBuyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 19.00%.
Export Info
The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all German export conditions and the obtaining of any applicable Export Licences
