2670 - CNC Wire Erosion Machinery, Machining Centres and Lathes previously used by a Precision Engineering Company & Others
Engineering
Auction ended on
Time left
Auction description
Location: These lots are located in Birmingham with the exception of Lot 7 which is located in Hyde, Cheshire. Please see individual lots for loading information.
Buyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 20.00%.
Viewing times
Viewing will be available by appointment only with the Auctioneer. Please contact our Office on: +44 (0) 121 328 2424 or email us at: info@cottandco.com
* Please Note:- Any translation by using Google Translate is not guaranteed as an accurate translation and is for guide purposes only. The English lot description is the overriding description and is given the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.
Notice to purchasers
Final payment date
Final clearance date
Shipping agents
Storage contractors
Exporting/Importing from the UK details
Lots 1-9 of 9

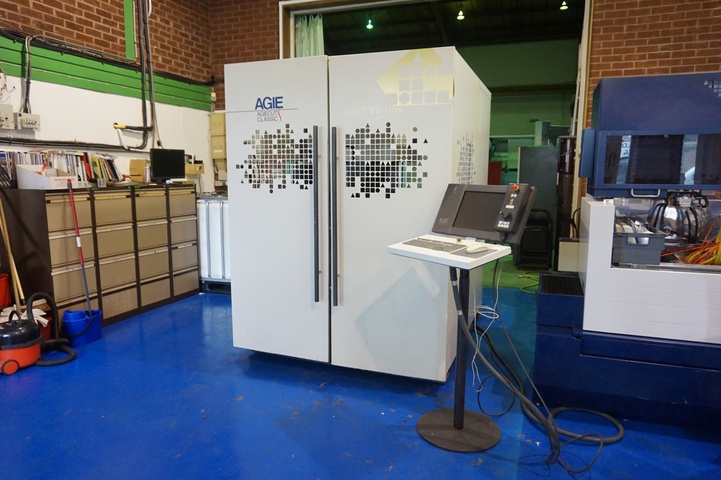

Lot 1: AgieCut Classic 2S Wire EDM with Agie Vision CNC Control
AgieCut Classic 2S Wire EDM with Agie Vision CNC Control, Submerged 5 Axis CNC Wire EDM with Auto Wire Thread, Axis Travel X 350mm, Y 250mm, Z 256mm, Maximum Work Piece dimensions X 750mm, Y 550mm, Z 250mm, 30° Taper Cut, Auto Wire Thread, Submerged Cutting, Wire Capacity 0.15 - 0.30mm, Large Wire Reel Capacity, Agie Jogbox Hand Box Control, Agie Generator, Four Side Universal Clamping Frame (2006)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
Lot 2: AgieCut 120 Wire EDM with AgieMatic CF20 CNC Control
AgieCut 120 Wire EDM with AgieMatic CF20 CNC Control, Submerged 5 Axis CNC Wire EDM with Auto Wire Thread, Axis Travel X 300mm, Y 200mm, Z 256mm, Maximum Work Piece Dimensions: X 810mm, Y 580mm, Z 250mm, 30° Taper Cut with Guides as supplied, Submerged Cutting to 250mm, Auto Wire Thread, Wire Capacity 0.15 - 0.30mm, Large Wire Reel Capacity, 16Kg, Agie Hand Box Control, Agie MMD Generator, Three Side Universal Clamping Frame (1996)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
Lot 3: Baron-Max KE-550 ZNC Manual ZNC EDM Machine
Baron-Max KE-550 ZNC Manual ZNC EDM Machine, Axis Travel X, Y, Z 550 x 350 x 250mm, Work Table 800mm x 450mm, Work Tank Dimensions 1170mm x 690mm x 425mm, ZNC Control with 3 Axis Display, Programmable Z Axis with Depth Stop Function, 50A Generator, Low Volt Work Lamp. S/No.0699386 (1997)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the Purchaser.
Lot 4: Eurospark EZE 3040 Manual ZNC EDM Machine
Eurospark EZE 3040 Manual ZNC EDM Machine with Eurospark EZE Control and Programmable Z depth, 50 Amp Generator, Work Table size 650mm × 400mm Travel X, Y, Z 400mm x 300mm x 200mm, Ram Platen to Work Table 230 ~ 630mm, Max. Electrode weight 75kg, Max. Workpiece weight 900kg, Work Tank size W × D × H 1050mm × 560mm × 340mm. S/No. 03031011 (2003)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
Lot 5: Deckel Maho DMU 50 Machining Centre
Deckel Maho DMU 50 Machining Centre with Heidenhain TNC 530 Control, 60-Station Tool Changer, 18,000 RPM Spindle, HSK 63 Tooling, Table Size 500mm x 380mm, Tool Sensors. S/No. 1104553800K (2003)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

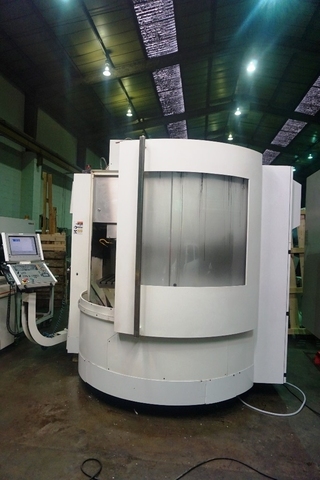

Lot 6: Mikron XSM800 CNC Vertical Machining Centre
Mikron XSM800 CNC Vertical Machining Centre
with Heidenhain 530i Control, 36,000rpm Step-tec
Spindle, 30 ATC, Swarf Management, Fume
Extractor, Chiller, X-Axis Stroke approx. 800mm. S/No.
107.76.00.018 (2009)
Please Note: This lot is located in Birmingham.
Unfortunately, there are no loading facilities for this lot,
dismantling and loading will be at the cost of the
purchaser.
Lot 7: Haas SL-40THE CNC Lathe
Haas SL-40THE CNC Lathe with Haas Control, 10 Station Tool Changer, VDI 40 Tooling, Tail Stock, 15” 3-Jaw Chuck. S/No. 3078375 (08/07)
Please Note: This lot is located in Hyde, Cheshire and will be loaded to a suitable vehicle at a cost of £400.00. This charge will be automatically added to your invoice should you be successful in purchasing this item. Blocking & Securing will be at the cost of the purchaser.
Lot 8: Gildemeister Twin 42 CNC Lathe with Siemens Control
Gildemeister Twin 42 CNC Lathe with Siemens Sinumerik 840D Power Line Control, Twin Spindle, (2) 19mm Collets, Twin Turret, (2) 12-Station Turrets, S/No. 07300001731 (2004) with Iemca Boss 545-E Type 32LL Barfeed. S/No. 0204219A05 (2004)
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
Lot 9: Jones & Shipman Format 5/150 CNC Surface Grinder
Jones & Shipman Format 5/150 CNC Surface Grinder with AB OSAI Numerical Control, Coolant Tank, Wheel Dresser, 450mm x 150mm Magnetic Chuck. S/No. B016044
Please Note: This lot is located in Birmingham and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
