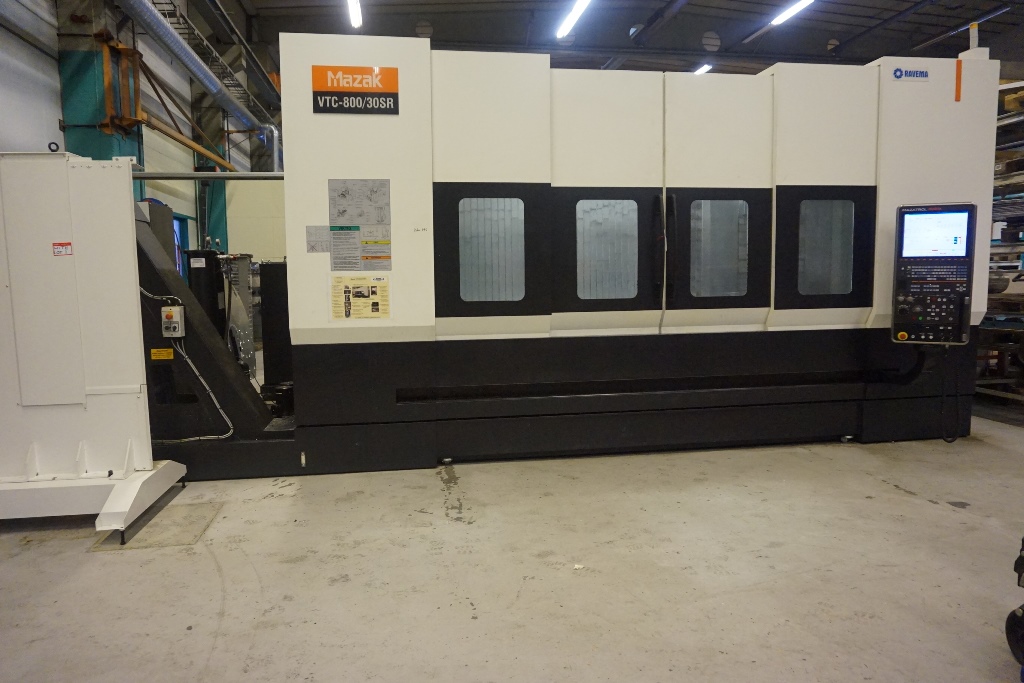

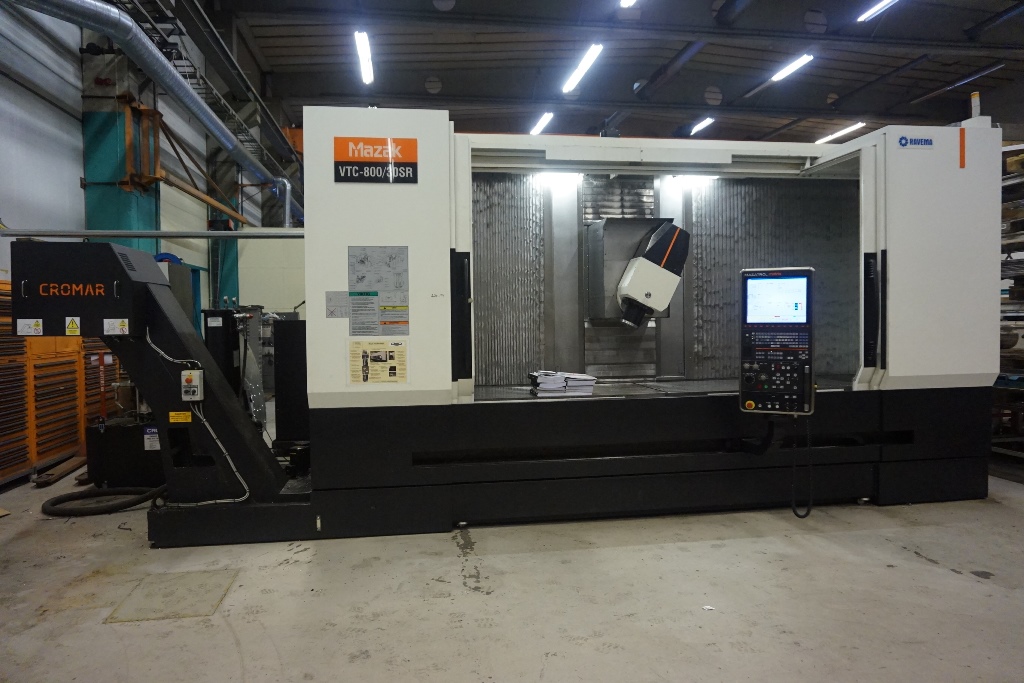

Lot 1: Mazak VTC800/SR 5 Axis Vertical Machining Centre
Back to auction
Item description

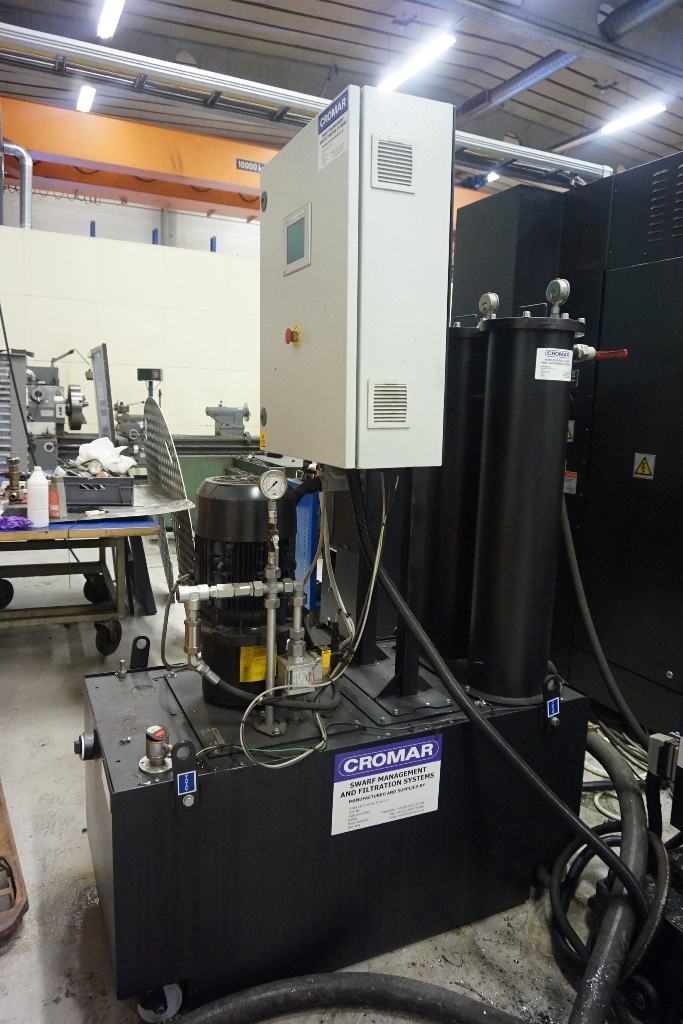

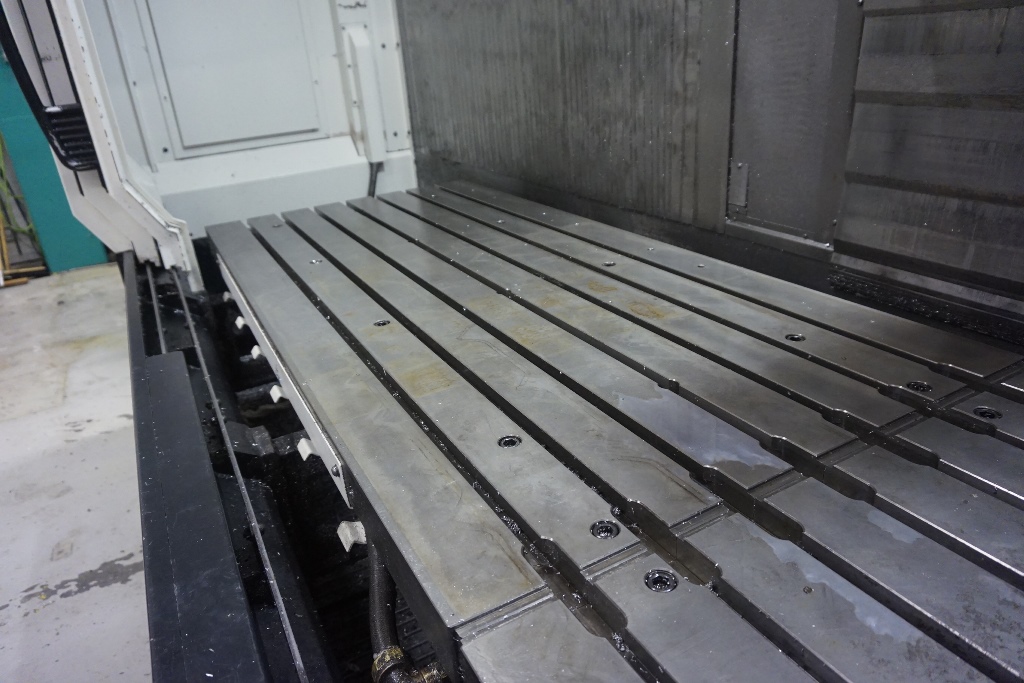

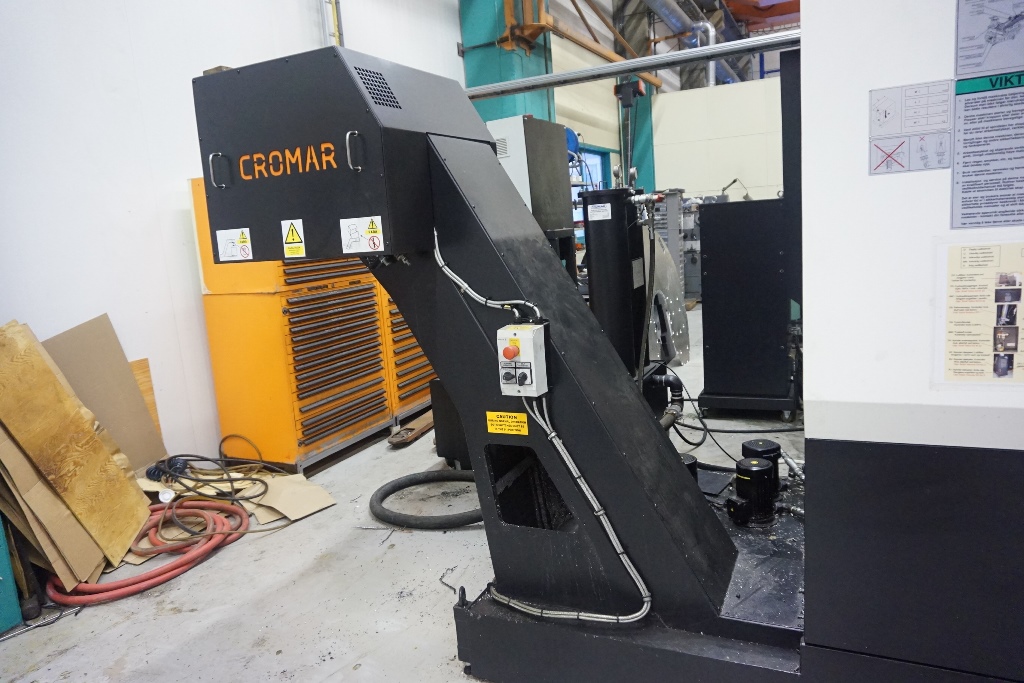

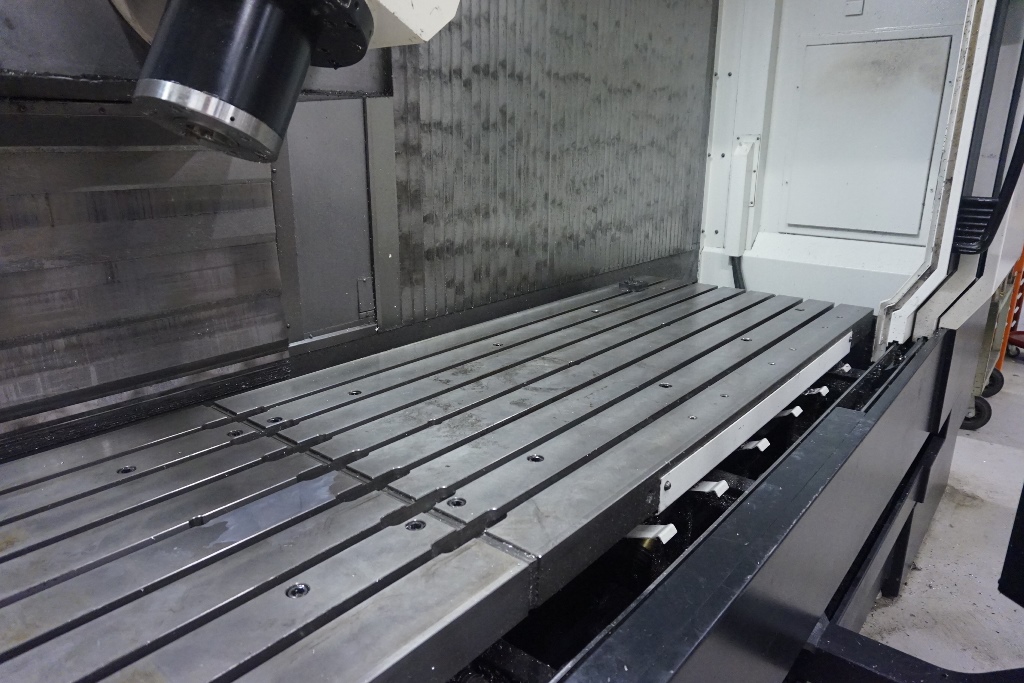

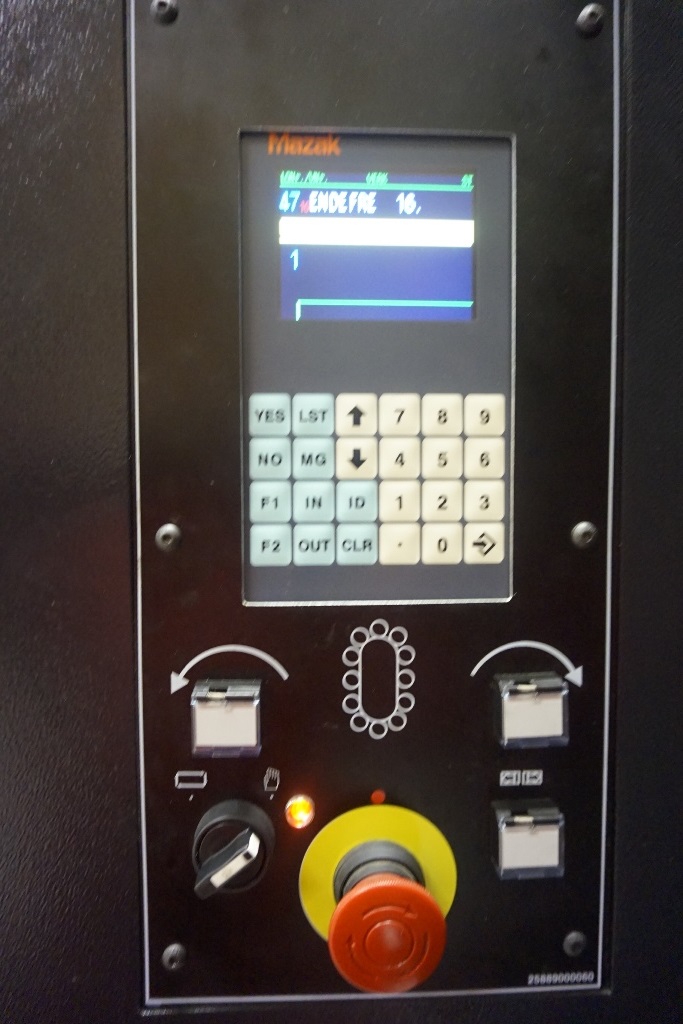

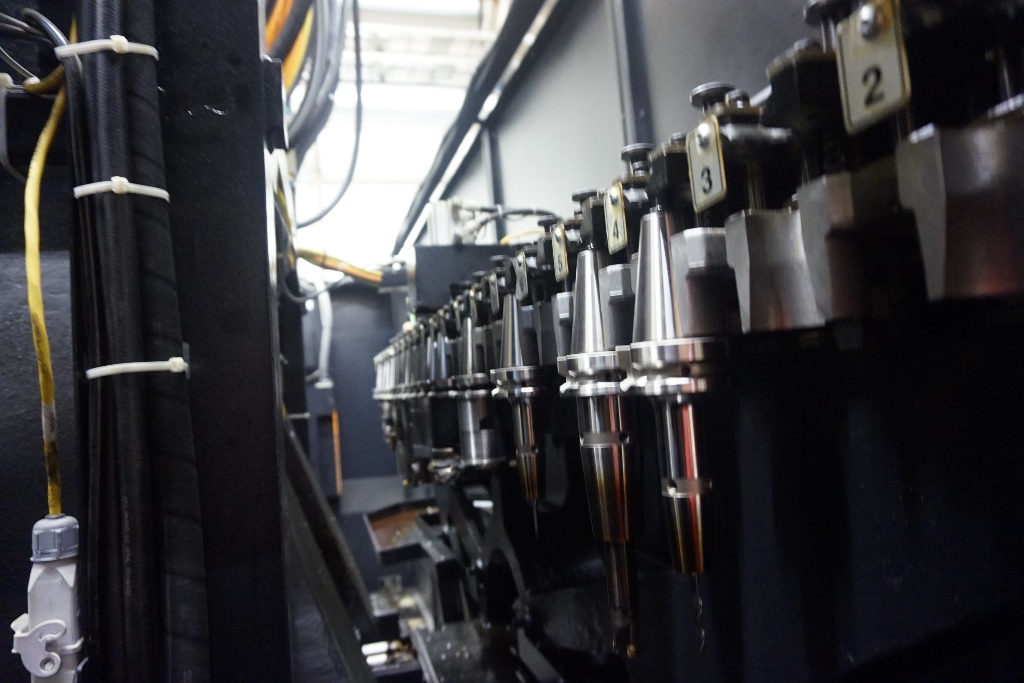

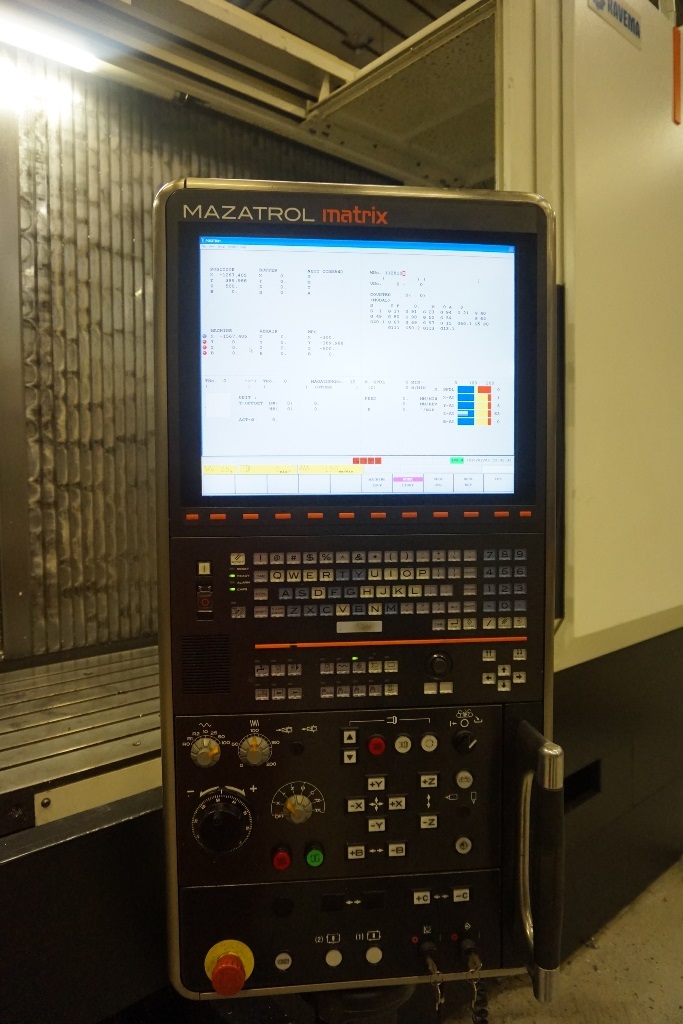

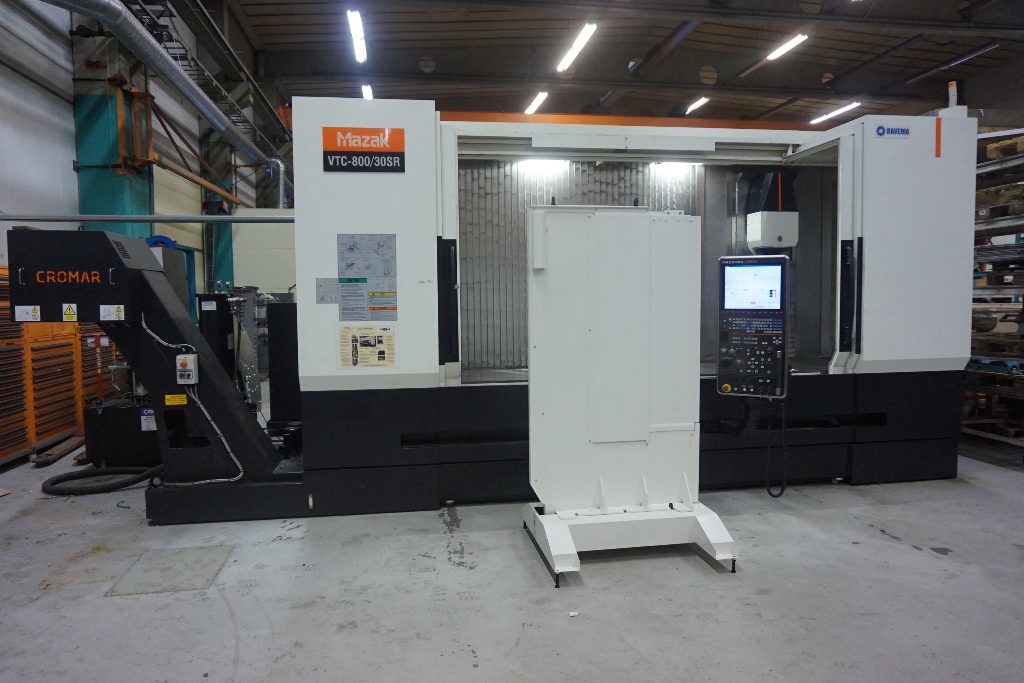

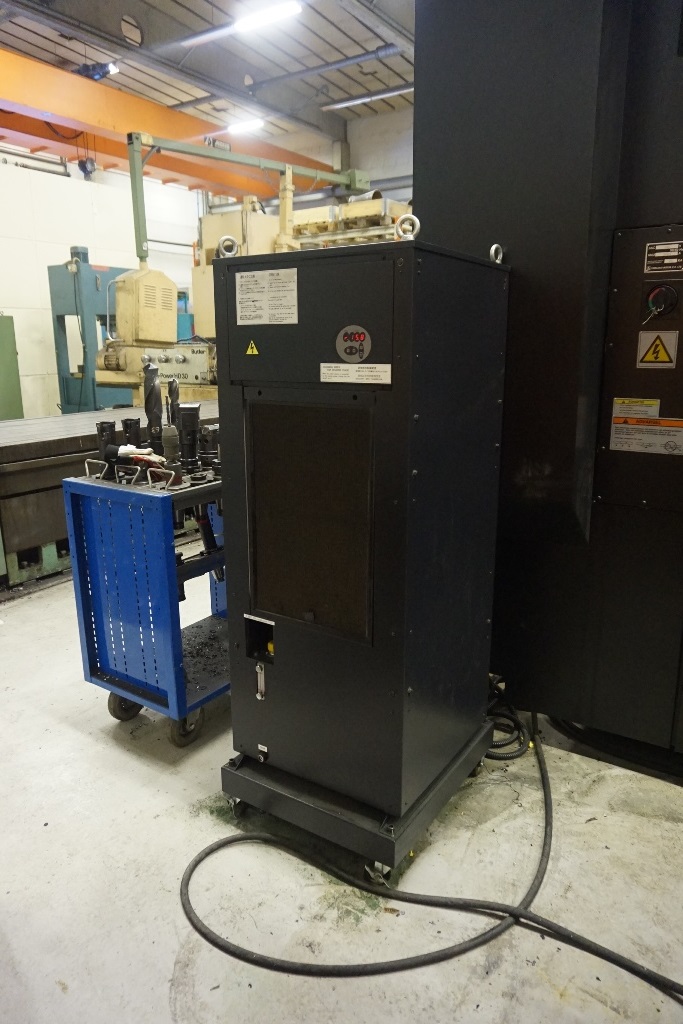

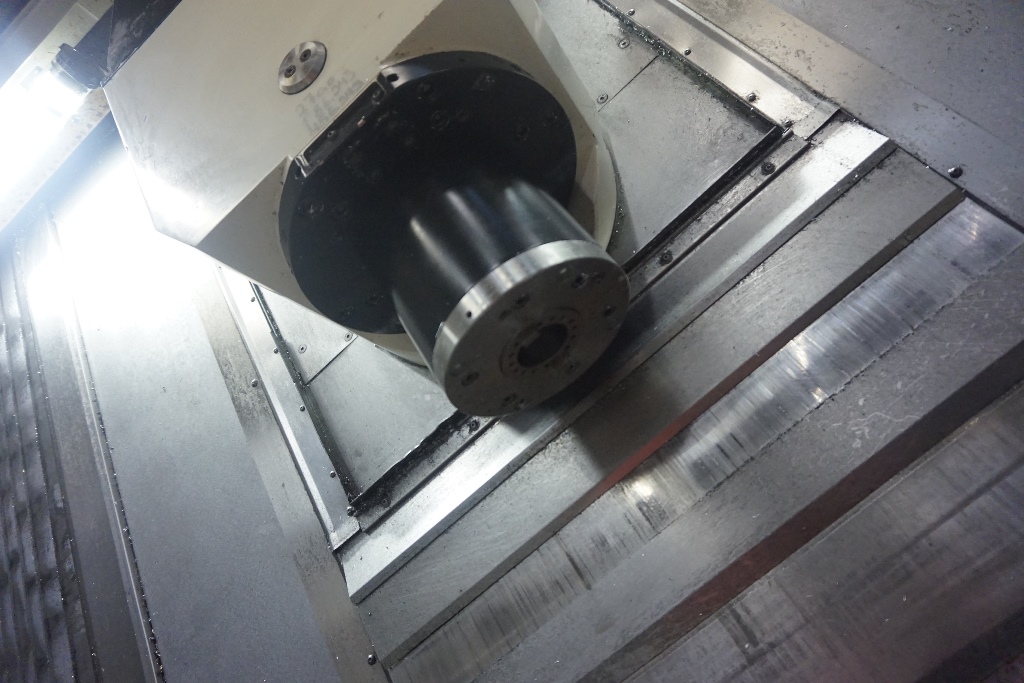

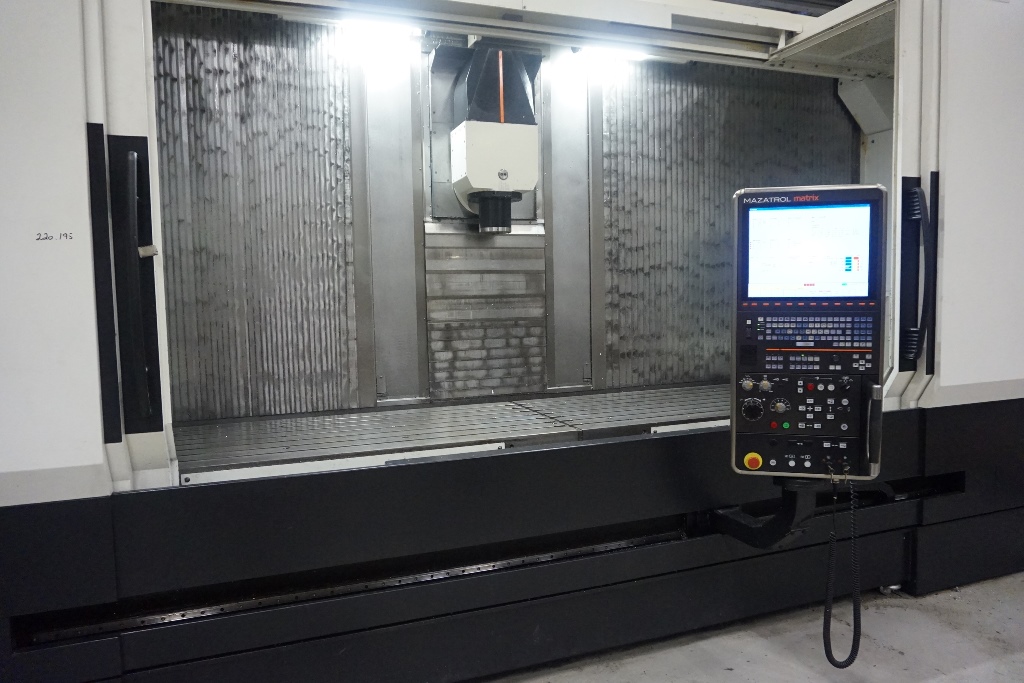

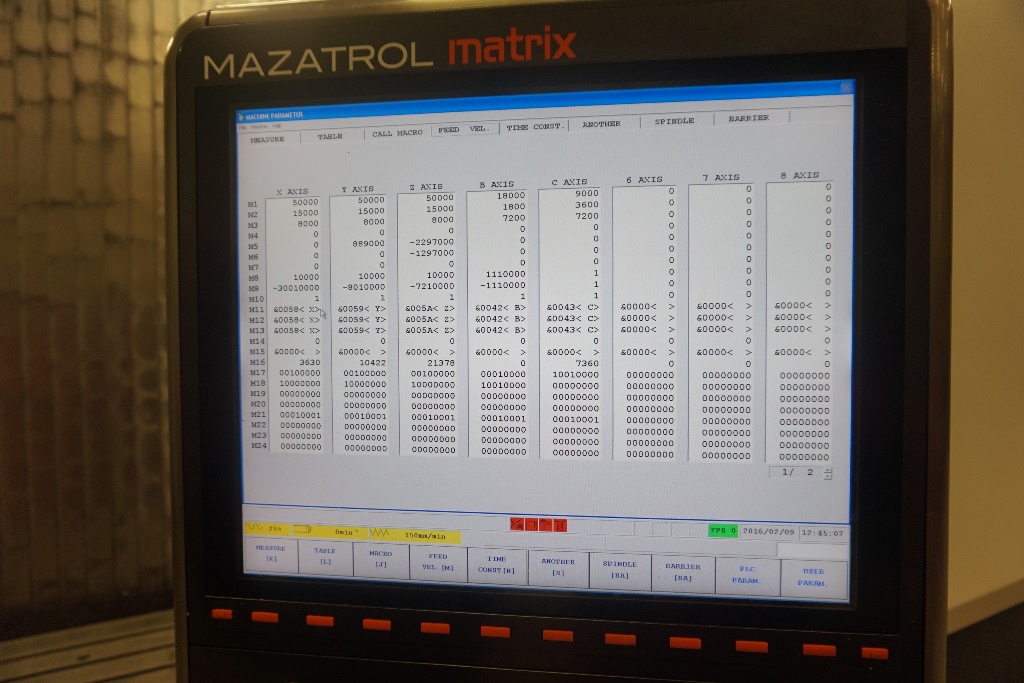

Mazak VTC800/SR 5 Axis Vertical Machining Centre fitted with Mazatrol Matrix CNC Control System, Max Spindle Speed 18,000 RPM, Max Power At 30minute Rating 35kw, Mas BT 40 Spindle Taper, 48 Station ATC, Feed Axis Travels X Axis 3000mm, Y Axis 800mm, Z Axis 720mm, B Axis Plus 110 To Minus 110 Degrees From Vertical, C-Axis (500mm Diameter) 360.000 Degree, Rapid Feed Rates X Y Z 50 M/Min B Axis 18 M/Min, Cutting Feed Rates X Y Z 15 M/Min B Axis 1.8 M/Min, Table Dimensions 3500mm X = 820mm Max Weight On Table 2500kg, Fitted with a Renishaw Rmp-60 Probe, Centre Table Partion, 5th Axis (Rotary Table), Cromar Through Spindle Coolant System and Swarf Conveyor. S/No 226828 (2011)

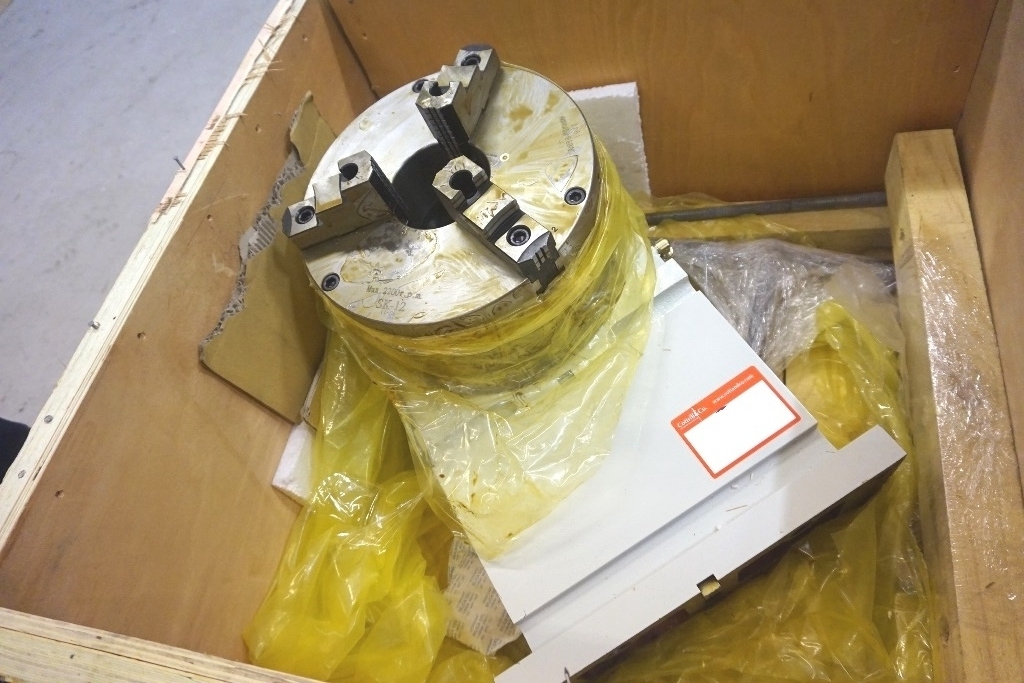

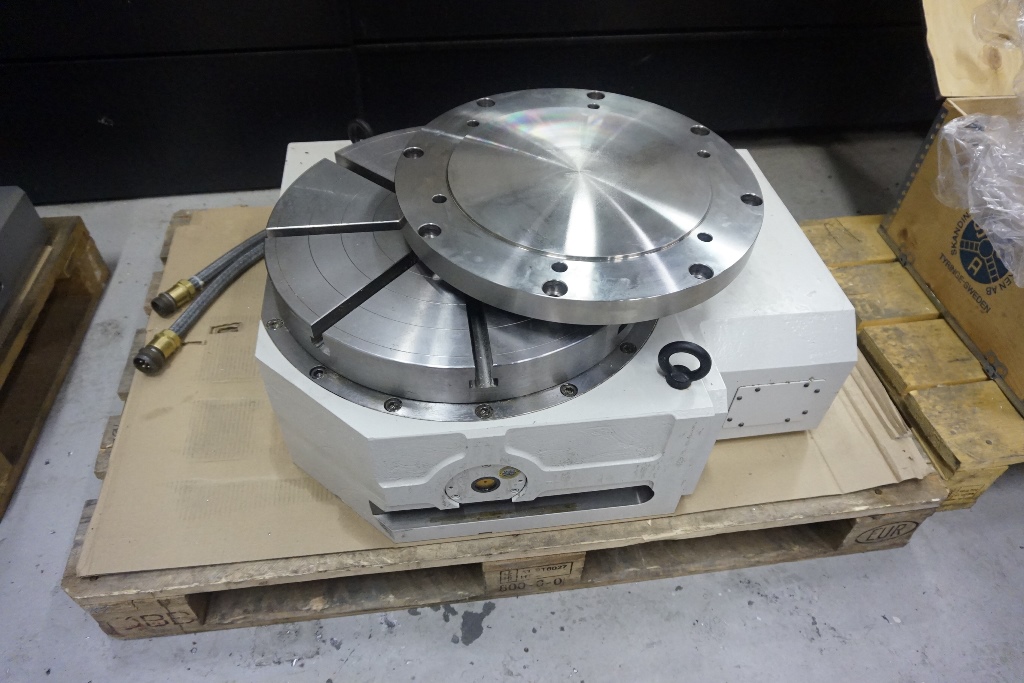

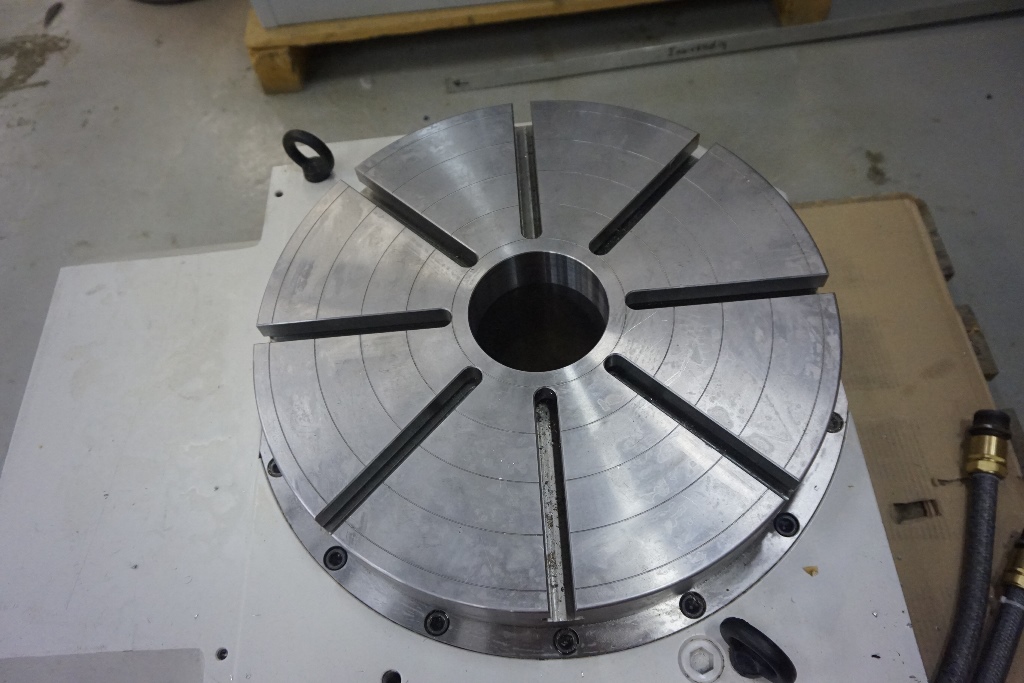

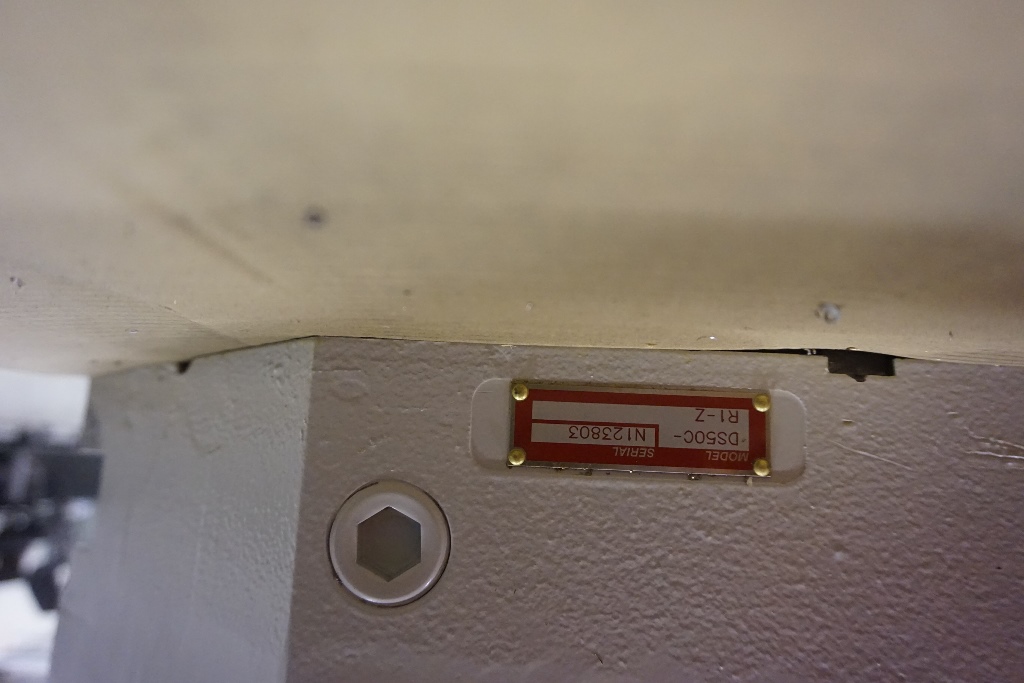

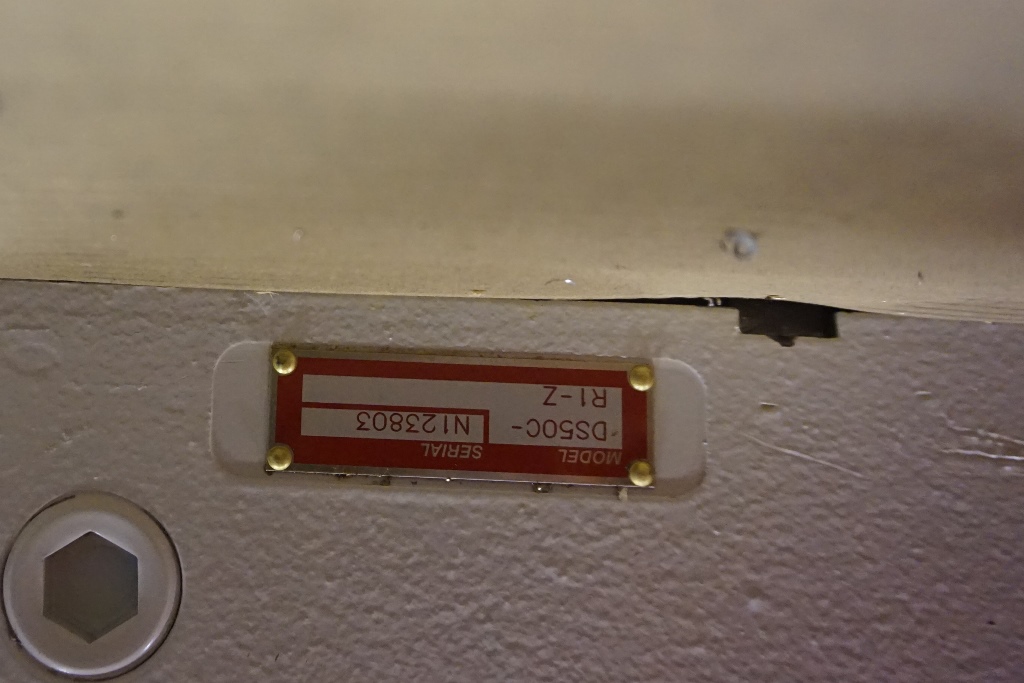

4th Axis Unit with Tailstock 500mm. S/No. N123803, 300mm 3-Jaw
Chuck, 400mm 3-Jaw Chuck
Please Note: These Items are located in Narvik, Norway.
Unfortunately there are no loading facilities available on site.
Dismantling & Loading will be at the cost of the purchaser.
Buyer's premium
Buyer's Premium will be charged at 16.00%.
VAT
Value added tax will be charged at 25.00%.
Export Info
The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all Norway export conditions and the obtaining of any applicable Export Licences
